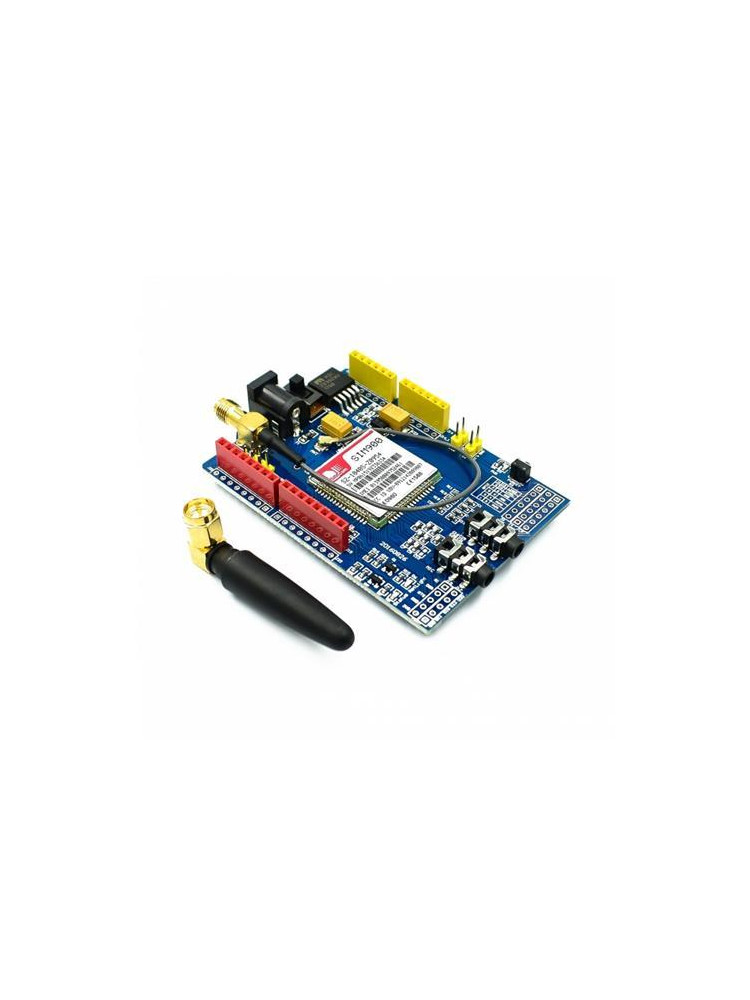

SIM900 GPRS/GSM Shield Development Board Quad-Band Module

R 499.00

The SIM900 GSM GPRS Dev Board allows for wireless control and communication. The SIM900 GPRS/GSM Shield Development Board Quad-Band Module features Quad-Band 850 / 900/ 1800 / 1900 MHz.

Quantity

Stock Available
4 Items

Overview:

The SIM900 GPRS/GSM Shield Development Board Quad-Band Module features Quad-Band 850 / 900/ 1800 / 1900 MHz. It features GPRS multi-slot class 10/8 GPRS mobile station class B Compliant to GSM phase 2/2+ Class 4 (2 W @ 850 / 900 MHz) Class 1 (1 W @ 1800 / 1900MHz). The SIM900 GSM GPRS Shield is controlled via GSM 07.07, 07.05 and SIMCOM AT commands. Short Message Service (SMS) is also available allowing small amounts of date to be sent over the network (ASCII or raw hexadecimal).

Specification:

• Embedded TCP/UDP stack - allows you to upload data to a web server.
• Quad-Band 850 / 900/ 1800 / 1900 MHz
• RTC supported.
• Selectable serial port.
• Speaker and Headphone jacks Low power consumption - 1.5mA(sleep mode) Industrial Temperature Range - -40°C to +85 °C
• Size:8.5x5.7x2cm(approx)

Package includes:

• 1 x SIM900 850/900/1800/1900 MHz GPRS/GSM Development Board

AD-GSM-SIM900
