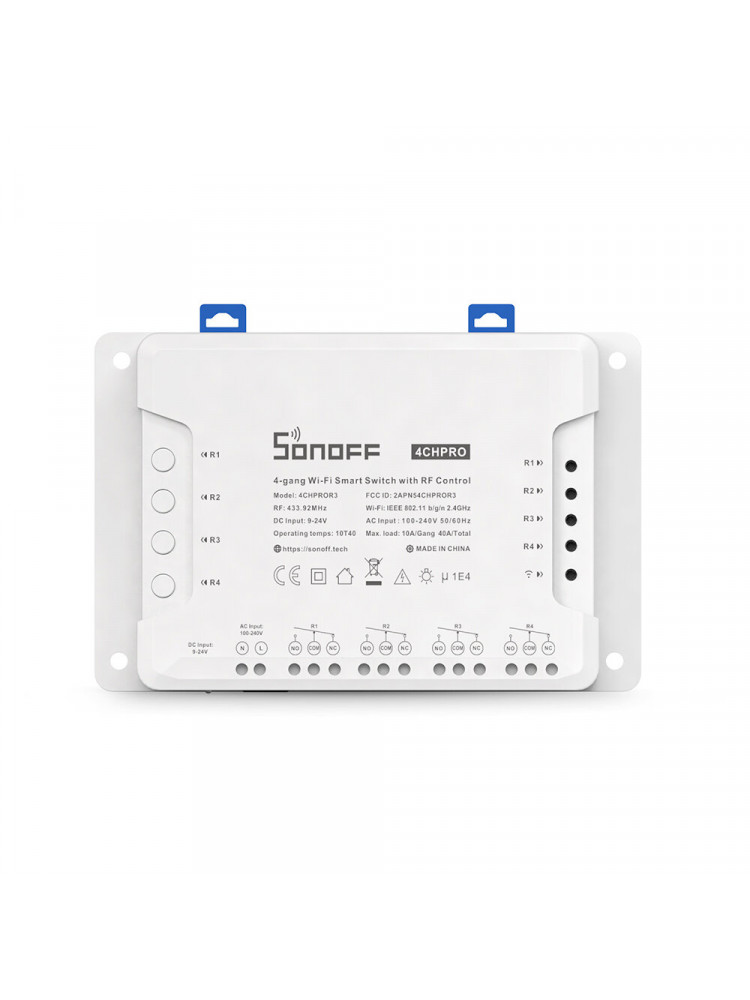

Sonoff 4CH Pro R3 10A 2200W 2.4Ghz 433MHz RF

R 695.00

Sonoff 4CHPROR3 is a 4-gang Wi-Fi Smart Switches designed to give you the ability to integrate smart control into your home. The smart switch has 4 gangs that can be used to control lights and other home appliances at the same time in four areas of your home. The 4CHPROR3 is designed with an additional function for RF control. The function is purposely adopted to make you turn on/off the device connected with 4CHPROR3 via the RM433 remote controller.

Quantity

Stock Available
9 Items

Overview:

The 4CHR3 and 4CHPROR3 have 3 working modes including self-locking, interlock and inching mode. The new improvement on 4CHR3 and 4CHPROR3 compared with 4CHPR2 and 4CHPROR2 is for users to set these 3 working modes on eWeLink APP instead of the hardware itself, making it easier to operate. You can enable self-locking mode to turn on/off 4 connected devices separately, interlock mode to turn on 1 connected device every time and turn off the rest of devices simultaneously and inching mode to turn on 1 connected device and then make it turn off automatically after a given time (0.5 - 3600s). The device can be mounted on a DIN rail. You can also activate the device using a voice assistant such as Alexa and Google Home smart.

Features:

• Remotely control connected lights or devices via APP
• 3 working modes with self-locking, interlock and inching mode for even remote control garage door and roller blinds
• Support scheduling a timer to make devices automatically start and stop to work
• Customize smart scenes to make the device connected with the switch to trigger other devices
• Share the control permission of devices to other accounts to control together
• Check real-time ON/OFF status of devices on your mobile phone
• Power on state allows users to set the On/Off/Keep status for the connected device before power failure and ensure it remains the arranged status after power restoration

Specifications:

• Voltage Range: 100-240V AC 50/60Hz(DC: 9-23V)
• Max. Load: 10A/2200W/Gang 40A/8800W/Total
• Wireless Frequency: WiFi 2.4GHz
• Wireless Standard: IEEE802.11 b/g/n 2.4GHz2.4GHz(2400M-2483.5M);
• Security Mechanism: WPA/WPA2
• Enclosure Material: PCV0
• Gang: 4
• Dimension:145*90*34 (mm)
• Operating Temperature(recommended): -10ºC-40ºC(14°F-104°F)
• Operating Humidity: 5%-95%RH, Non-condensing

Resources:

• User Manual and Certification

SF-4ChPro-R3
