Shelly Plus 1PM

Overview:

From automatization of the lights to electrical appliances control, Shelly Plus 1PM provides precise power metering and free cloud data storage. Small enough to fit behind every wall switch or wall socket, Shelly Plus 1PM is retrofit and can be installed in less than 10 minutes.

Features:

• HTTP/HTTPS webhooks: Yes
• Custom scripts(mJs): Yes
• Channels: 1 Channel
• Maximum load: 16A
• Operational temperature: 0°C to + 40 °C
• Device power consumption: < 1 W
• Intelligent On/Off: Yes

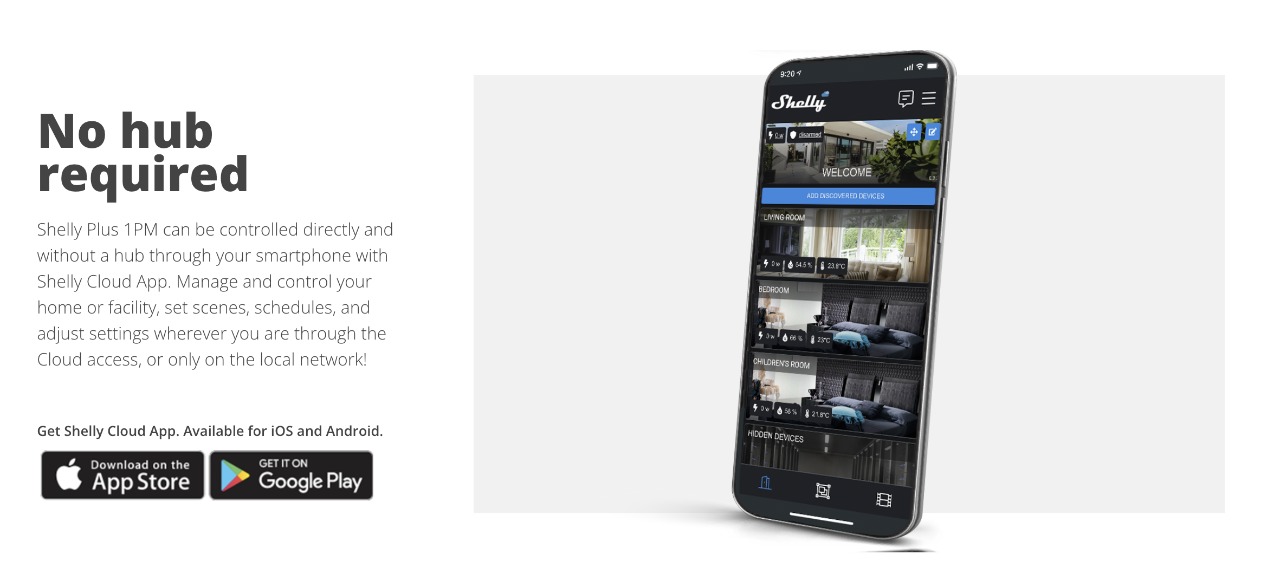

• Local and remote control: Yes
• Sunrise/Sunset: Yes
• Weekly schedule: Yes
• UL Listed option: No

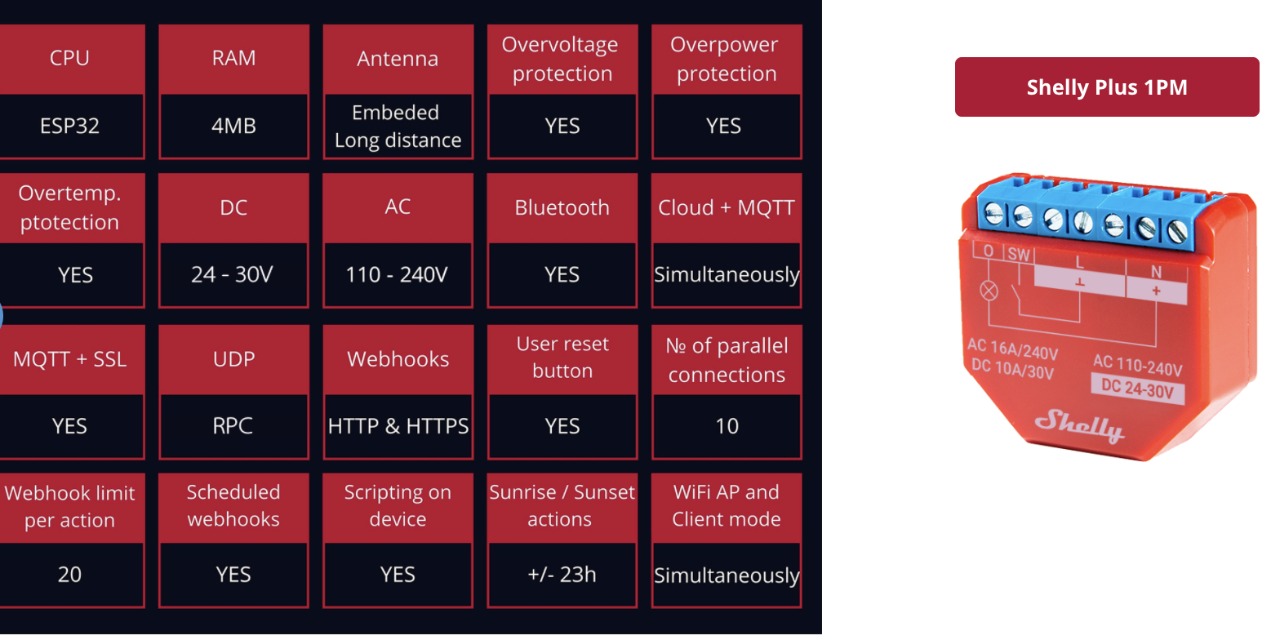

Specification:

Power:

• Power supply AC: 110-230V ±10%, 50/60Hz
• Power supply DC: 24 – 30V

Special Functions:

• Dry contacts: No
• Roller shutter mode: No
• Device temperature protection: Yes
• Overload protection: Yes
• Power measurement: Yes
• Working without a neutral line: No

Connectivity:

• Wireless: Yes
• Wireless/Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi Radio Frequency: 2412 – 2484 MHz
• Wi-Fi Radio signal power: 1mW
• Wi-Fi Range: Up to 50m outdoors; Up to 30m indoors (Depending on the building materials)
• Bluetooth: Yes

Dimensions:

• Size: 41mm x 36mm x 16mm

Package includes:

• 1 x Shelly Plus 1PM
