Tuya 4 Channel WiFi + RF Switch (5V - 32V)

Overview:

The wireless Wifi and RF Tuya switch supports inching and self-locking modes. You can add the device to the Tuya app to remotely control connected home appliances or devices. In self-locking mode, you can remotely turn connected devices on or off immediately. When in inching mode, you can turn on the switch for 1 second, and it will automatically turn off after another second. This simulates pressing the remote control button, thereby opening or closing your gate or garage motor.
Wireless control is available with the Tuya app for iOS and Android. Supported functions include remote on/off, timing schedules, device sharing, and group management.

Features:

• Supports schedules, inching, self-locking, Remote turn on/off, Timing schedules, device sharing
• Voice Control: Compatible with Amazon Alexa, Google Home/Nest, and IFTTT
• Works with Amazon Echo, Echo Dot, Amazon Tap, Google Home, and IFTTT

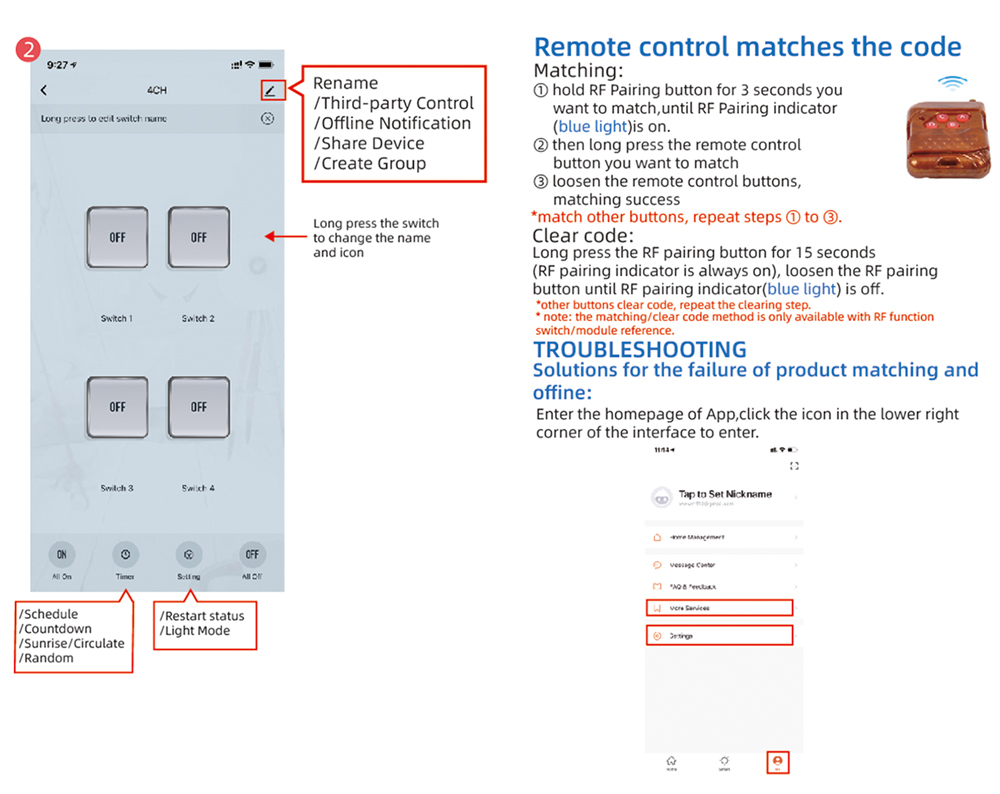

• Remote control via RF Remote

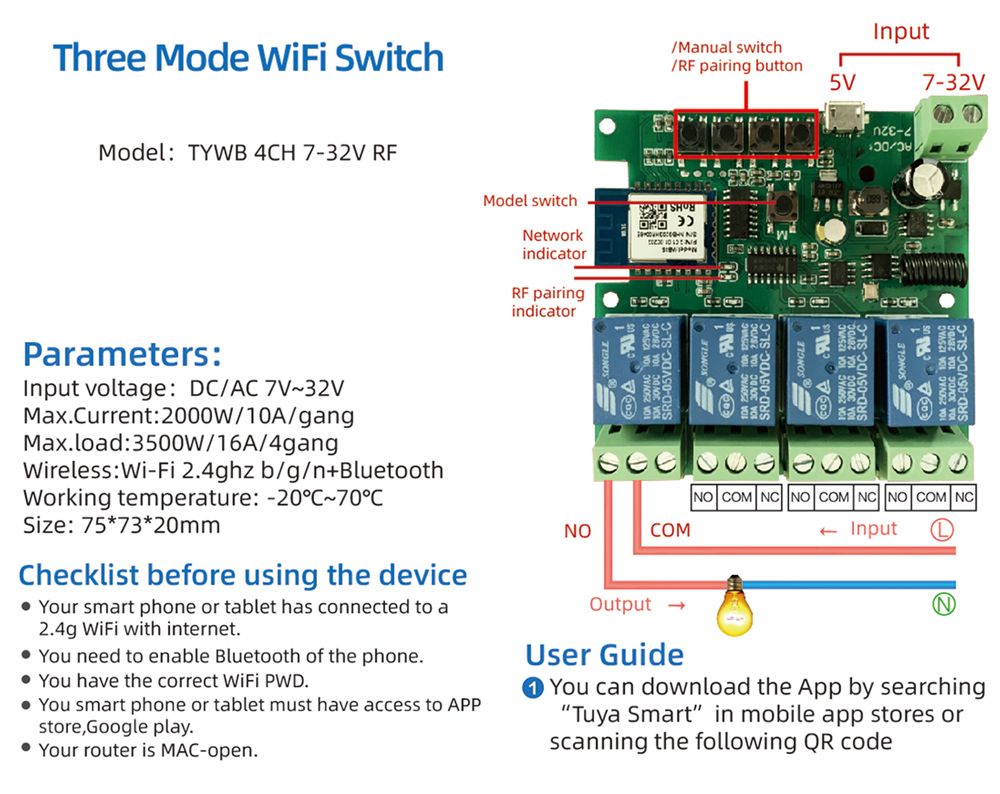

Specification:

• Operating voltage: 5V/7-32V DC
• LED: 1 LED (indicate working mode, wifi status, relay on/off status respectively)
• Two input interfaces Supports to control different voltage ranges
• USB port power supply more convenient
• Board consumption: <1w
• Standby current: 80mA
• Max input current: 10A
• Max Wattage: 2200W
• Relay lifespan: ≥one million times 100M electrical insulation resistance
• Electric shock voltage: 1000V
• Relay maximum pull time: 15ms
• Relay maximum release time: 5ms
• Working mode: inching / self-locking
• Wireless Standard: 2.4GHz, 802.11 b/g/n
• RF function: 433MHZ

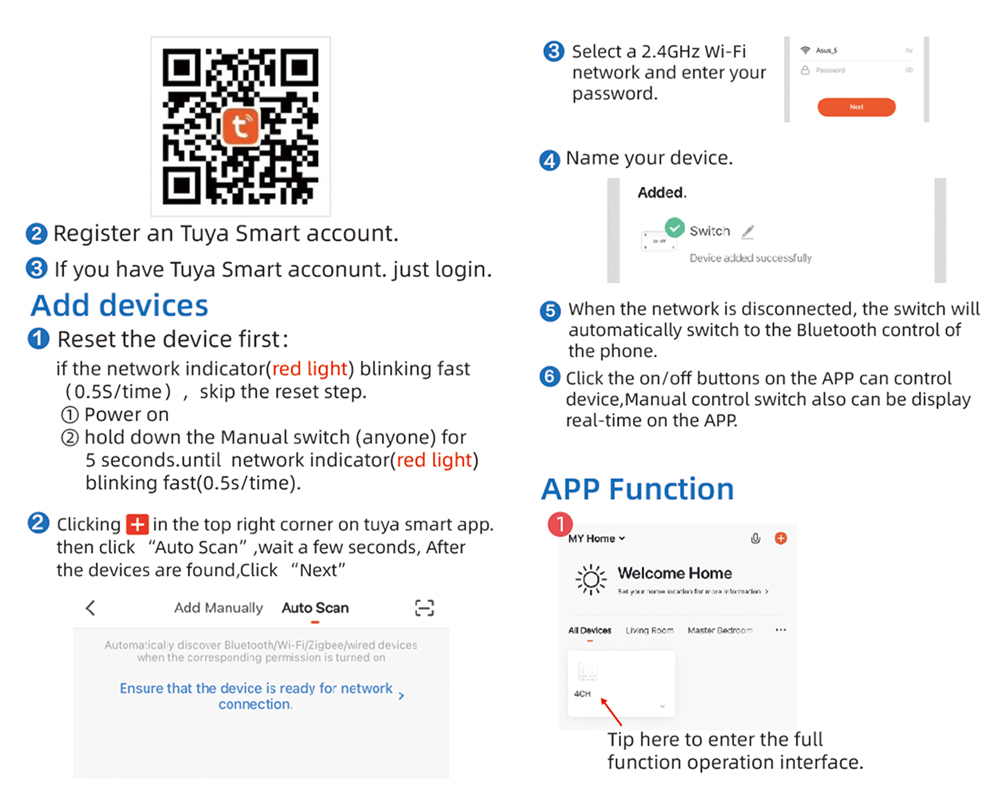

• Mobile App: Tuya / Smart life on Android/IOS

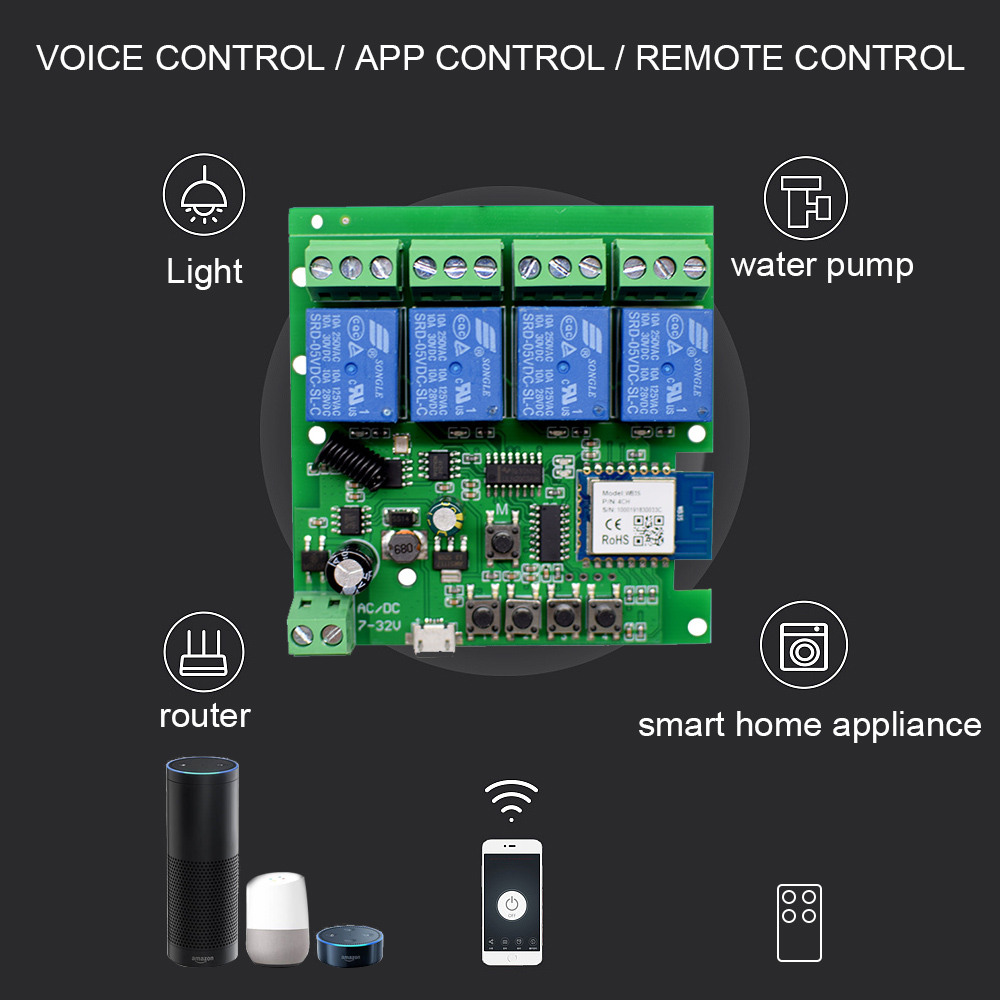

• Application: access control, turn on PC, garage door, etc.
• Computer application: Remote control computer boot
• Operating temperature: -40 degrees to +70 degrees
• Operating Humidity 40%-80%

Package includes:

• 1 x Tuya 4 Channel WiFi + RF Switch (5V - 32V)
