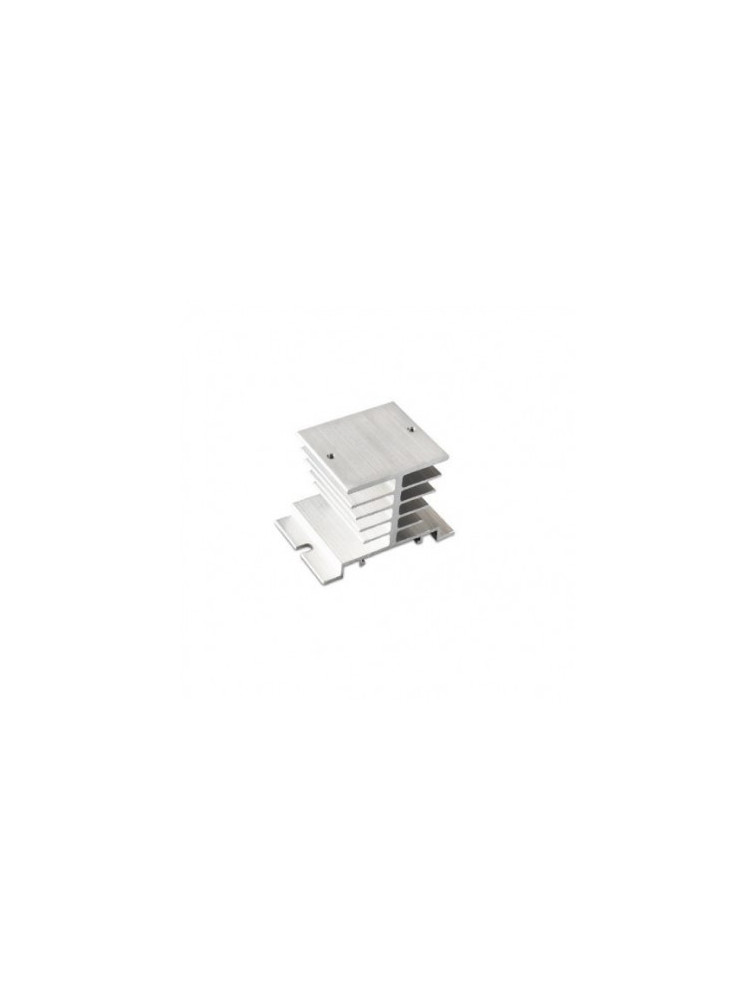

Heat Sink for SSR's

Overview:

The Heat Sink for SSR's is a high-quality heat sink designed for efficient heat dissipation in single-phase Solid State Relays. With its durable aluminium construction and compact size, this radiator offers excellent performance and ensures reliable operation of the relay. It features a standard mounting hole for easy installation and smooth straight edges for safe usage. The heat sink provides effective thermal management to maintain optimal performance.

Features:

• Durable aluminium material and installable radiator design for efficient heat dissipation.
• Specifically designed for single-phase SSR solid state relays with a current rating below 15A.

Specification:

• Applicable to: Single-phase SSR
• Material: Aluminium
• Main Colour: Silver
• Size: 8 x 5 x 5cm (length x width x height)
• Mounting Hole Diameter (approx.): 3mm
• Thread Hole Distance (approx.): 48mm
• Base Mounting Hole Diameter (approx.): 7 x 5mm
• Ceiling Size (approx.): 60 x 50mm (length x width)
• Size (approx.): 80 x 50mm (length x width)

Package includes:

• 1 x Heat Sink for Solid State Relay
