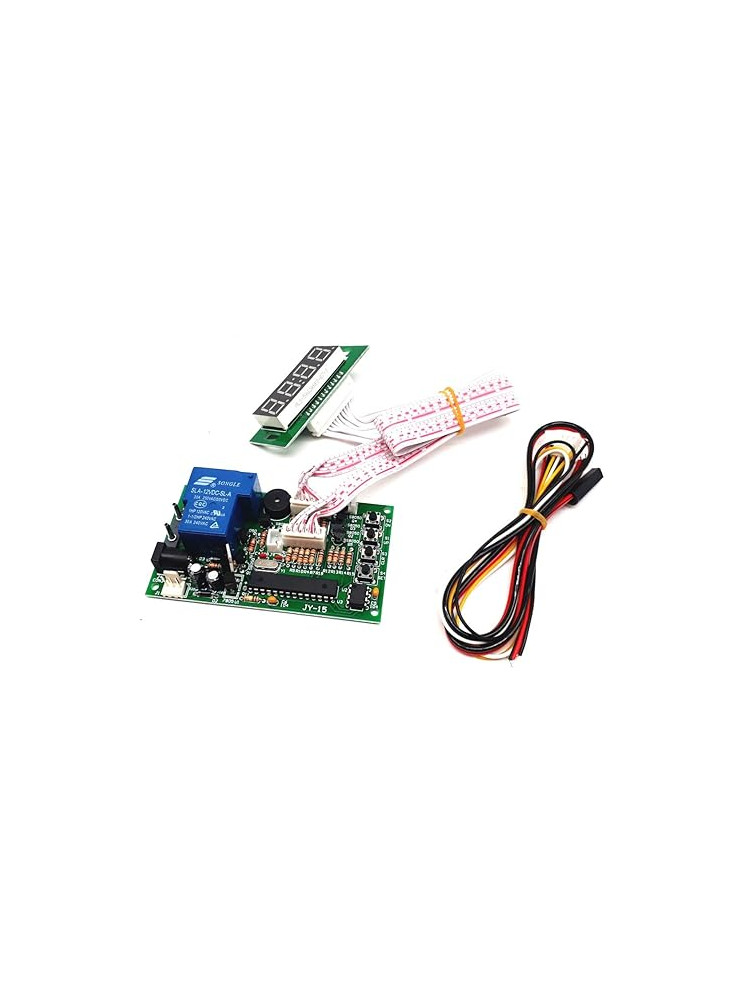

JY-15B Timer Board for Multi Coin Acceptor

Overview:

This time control module is a compact device designed to manage power supply durations for various applications. It operates on a DC +12V input with a 15A maximum load capacity and supports multiple input types, including coin acceptors, bill acceptors, and card readers. Users can configure the time type, duration, and coin quantity (price). The device features two modes: countdown mode, where power is supplied and cuts off after the set time, and button-controlled mode, allowing manual start, pause, and resume functionality. The module includes a clear display for time tracking and supports time accumulation for extended usage.

Specification:

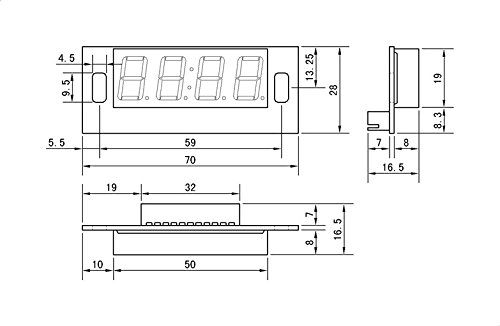

• Size: 54.3 mm × 94.0 mm
• Functionality: Time-controlled power supply for devices.
• Input: DC +12V, relay: Normal Open (NO), control voltage: 5V-220V, current load: 15A.
• Customization: Configurable time type, time duration, and coin quantity (price).
• Compatibility: Supports connections with coin acceptors, bill acceptors, and card readers.
• Standby Mode: The display shows "00:00," relay remains in Normal Open (NO) state.
• Accumulated Time: Yes, additional time is added when signals are received during operation.

How It Works:

• Mode 1:
   • When a signal is received, the countdown starts.
   • The display shows the remaining time while power is supplied to the device.
   • Power cuts off automatically when the time expires.
• Mode 2 (With a Button):
   • After receiving a signal, the display shows the remaining time.
   • Press the start button to begin the countdown.
   • Power is supplied to the device as the time runs down.
   • Power cuts off when the time expires.
   • Pause Function (With a Button):
   • Press the pause button to interrupt the power supply.
   • The display shows the remaining time.
   • Power resumes when the pause button is pressed again.

Setting:

• Please follow CODE ON DISPLAY and use button "S1" and "S2" to set up number
• INPUT SIGNAL QUANTITY AND TIME
   • Please press button "S4". “B” flashes. Please set up INPUT SIGNAL QUANTITY to active device (01-50).
   • Please press button "S4", “A” flashes. Please set up TIME (01-99).
   • Please press button "S4", “B” flashes. Please set up TIME (01-99).
   • Please press button “S4” 4 TIMES.
   • Please set up TIME for Warning Sound.
   • Please press button "S4" to finish.

• GIVEN TIME: Add time by free if input signals reach SETTING RATE during time is running.
• Example Setting: input signal to active device: 01, input signals for given time: 03 give time: 02:10
   • Add time “02:10” free if receive “3 signals” during time is running.
   • Please press button "S4" 4 TIMES. “B” flashes. Please set up RATE OF INPUT SIGNAL QUANTITY.
   • Please press button "S4", “A” flashes. Please set up GIVEN TIME.
   • Please press button "S4", “B” flashes. Please set up GIVEN TIME.
   • Please press button "S4" to finish.

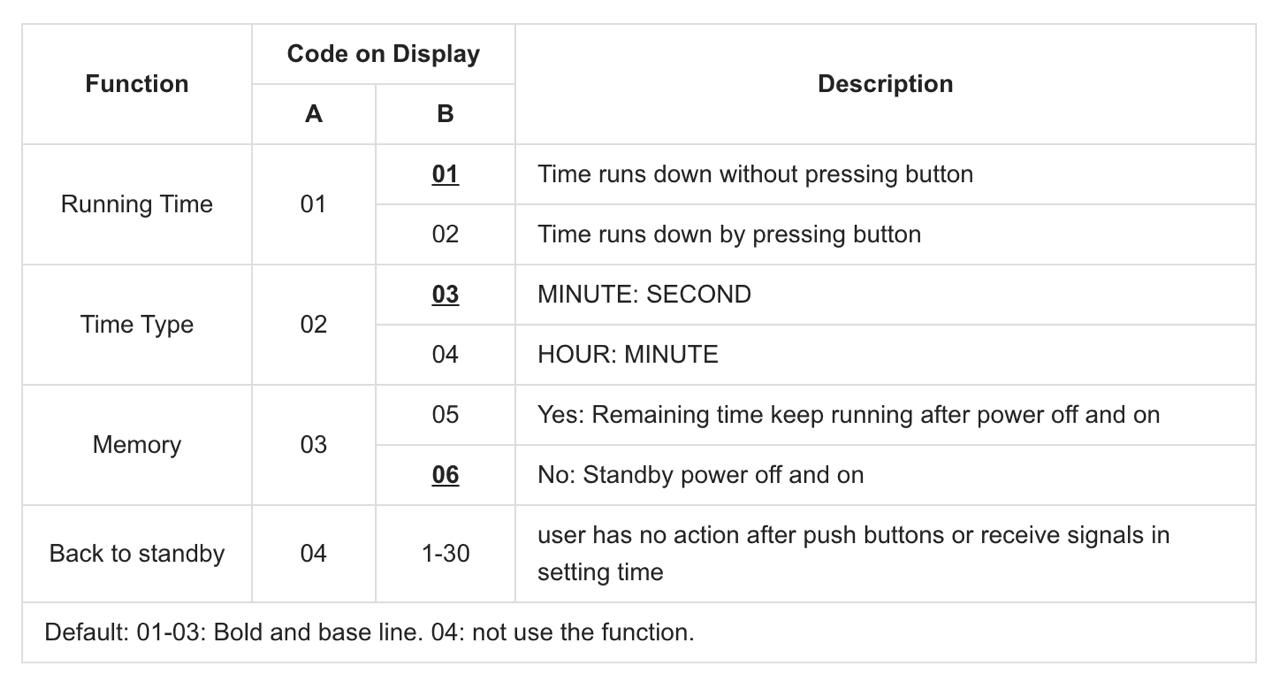

• Mode Setting
• Please follow table to set up operating function:
• Please hold on button "S1" and "S2" simultaneously for 3 seconds to get into MODE SETTING.
• Please use button "S1" and button "S2" to set up number for CODE
• Please press button "S4" to switch to next code

Resources:

• Tutorial

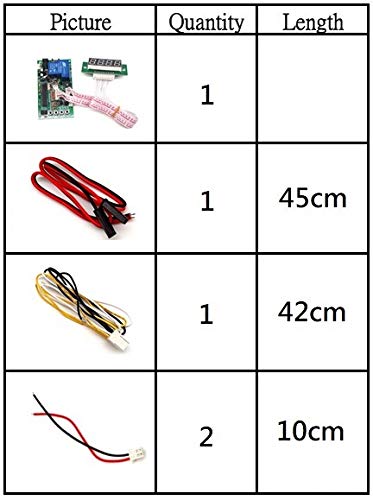

Package includes:

• 1 X JY-15B Timer Board for Multi Coin Acceptor

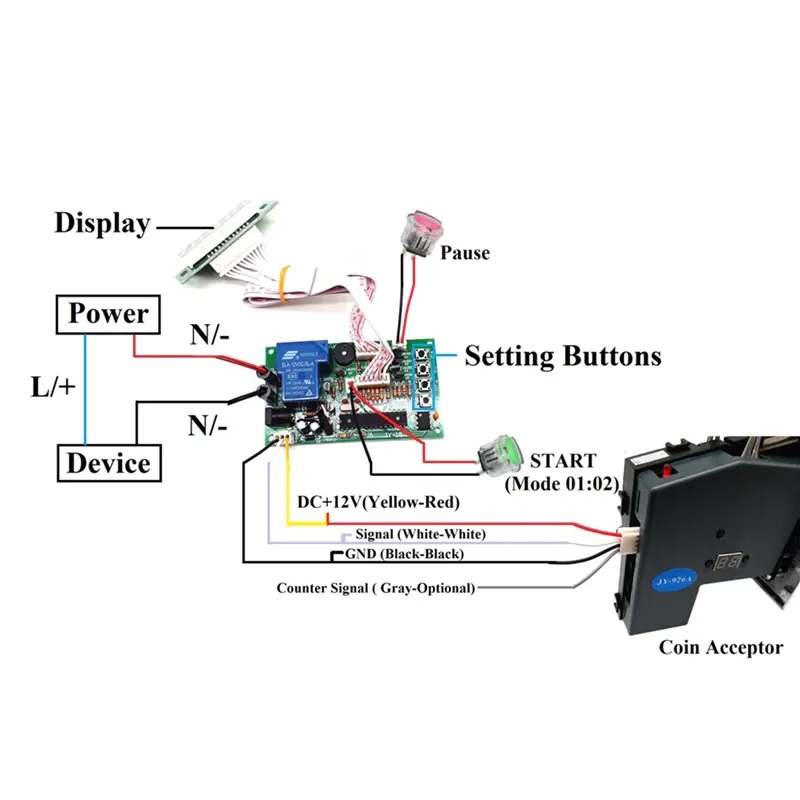

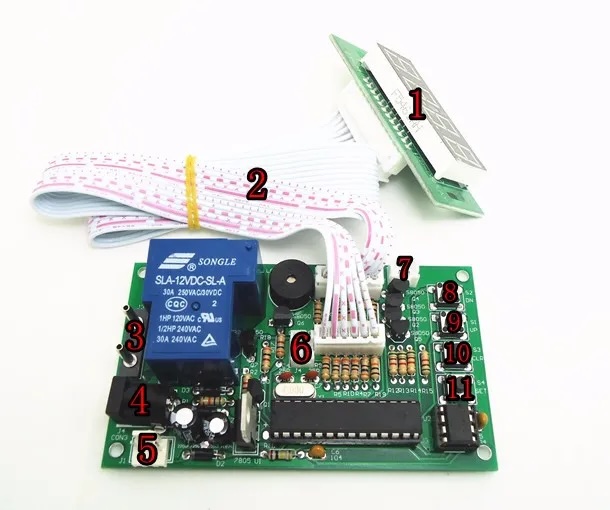

1 : Display
2: 40 cm white lead
3: Switch control device power wire: control “L” or “N” of device power wire
4: AC jack-5.5mm*2.1mm
5: YELLOW: DC12V, WHITE: input signal, BLACK: GND
6: START for mode 01:02
7: Pause
8-11: Button S2, S1, S3, and S4

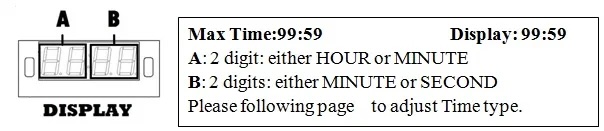

• Max Time:99:59 Display: 99:59
• A: 2 digit: either HOUR or MINUTE
• B: 2 digits: either MINUTE or SECOND
• Please following page to adjust Time type.
