Shelly Dimmer 2

R 610.00

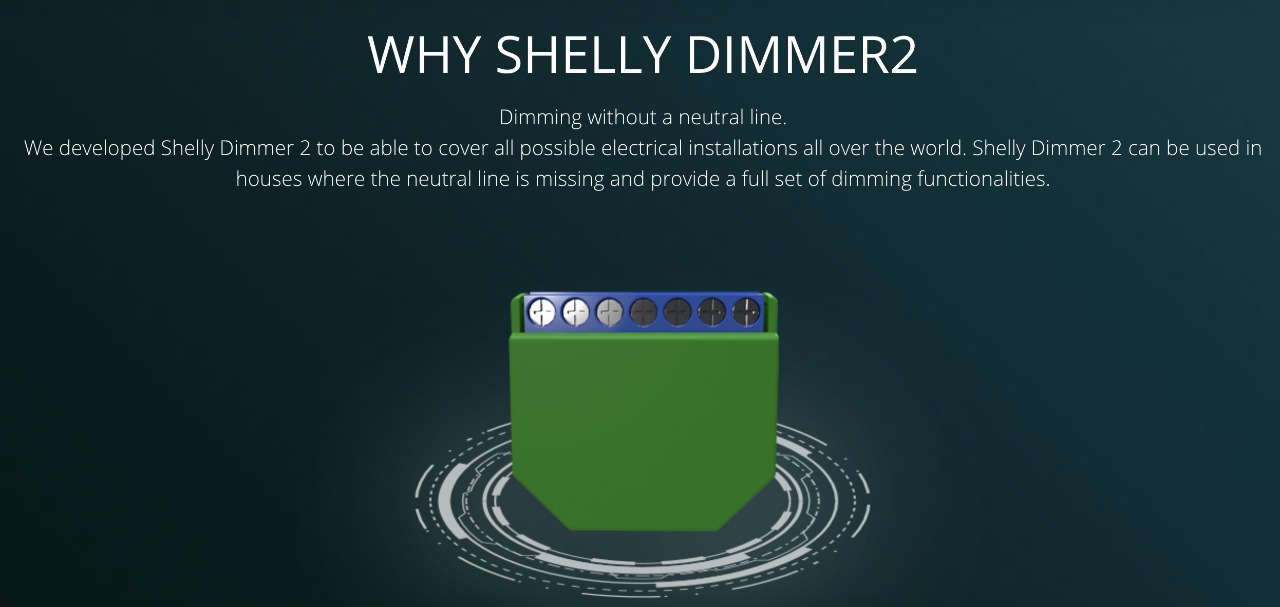

Dimming without a neutral line. Shelly Dimmer 2 was developed to consider all possible electrical installations across the world. Shelly Dimmer 2 can be used in homes where the neutral line is missing and provide a full set of dimming functionalities. You can control a wide range of halogen lights, dimmable LED and ferromagnetic transformers.

N.B. When using the device without neutral, Shelly Dimmer 2 requires at least 10W of power consumption to operate. If the connected light has a smaller power consumption, then Shelly Bypass is needed for the device to work.

Quantity

Stock Available
11 Items

Overview:

Dimming without a neutral line. Shelly Dimmer 2 was developed to consider all possible electrical installations across the world. Shelly Dimmer 2 can be used in homes where the neutral line is missing and provide a full set of dimming functionalities. You can control a wide range of halogen lights, dimmable LED and ferromagnetic transformers.

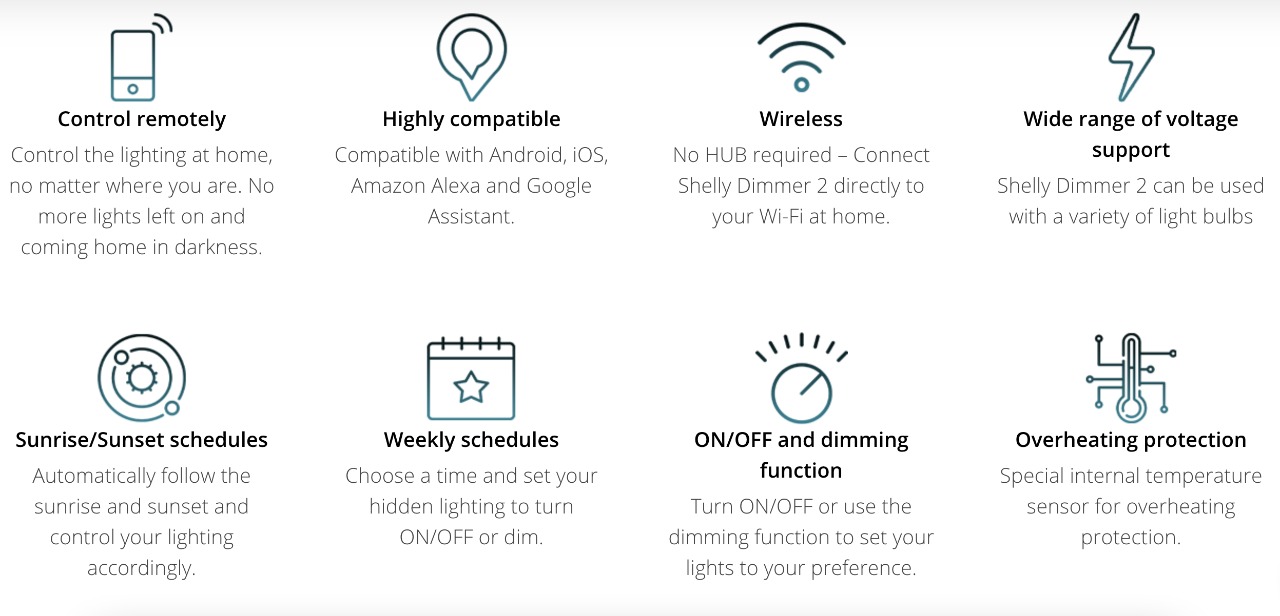

Features:

• Wireless: No hub required. Connect Shelly directly to your Wi-Fi network and control your home with your smartphone or tablet.

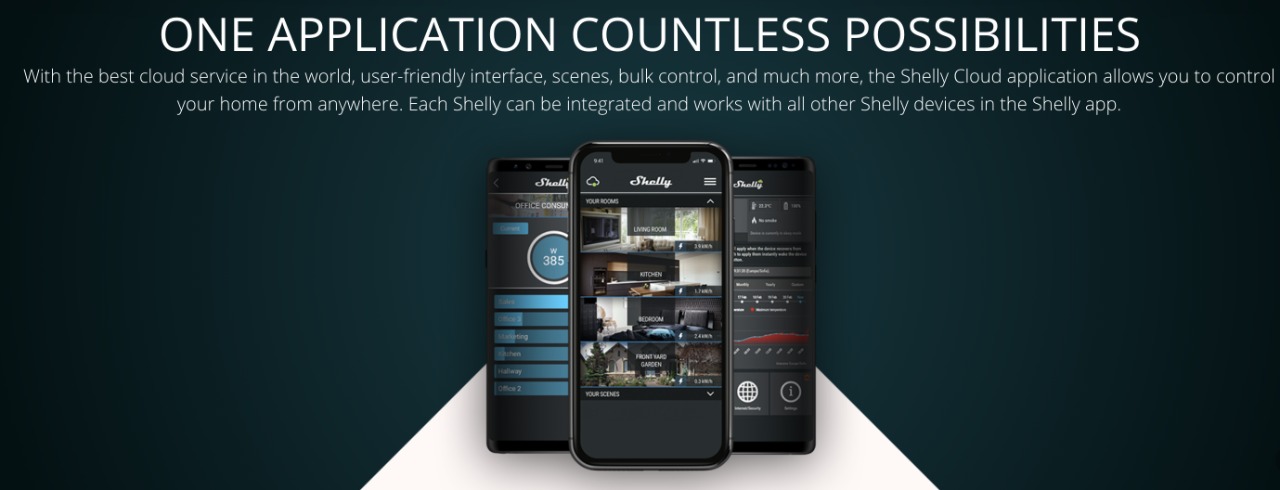

• Control Remotely: Control a wide range of appliances directly from your smartphone or tablet from anywhere in the World as long as you have an Internet connection. All you need is a smartphone or tablet and the free Shelly Cloud mobile application.
• Scheduling: Create a custom schedule to turn your devices on/off or dim to suit your lifestyle.
• No neutral required: A Wi-Fi dimmer that can be used in homes where the neutral line is missing and provide a full set of dimming functionalities.
• Temperature Sensor: Internal Temperature sensor for overheating protection.

Specification:

Power
Power supply AC 110-230V ±10%, 50/60Hz
Special functions
Dimming Yes
Dimmable LED 50 - 200VA / 10W - 200W
Incandescent and halogen light sources 10-220W
Resistive-inductive loads ferromagnetic transformers 50-150VA
Working without a neutral line Yes
Device temperature protection Yes
Overload protection Yes
Power measurement Yes
Features
Colour changing No
Predefined effects Yes
Channels 1 Channel
Operational temperature 0 to + 40 °C
Device power consumption < 1 W
Intelligent On/Off Yes
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
Connectivity
Wireless/WiFi Protocol 802.11 b/g/n
Radio frequency 2400 – 2500 MHz
Radio signal power 1mW
Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Dimensions

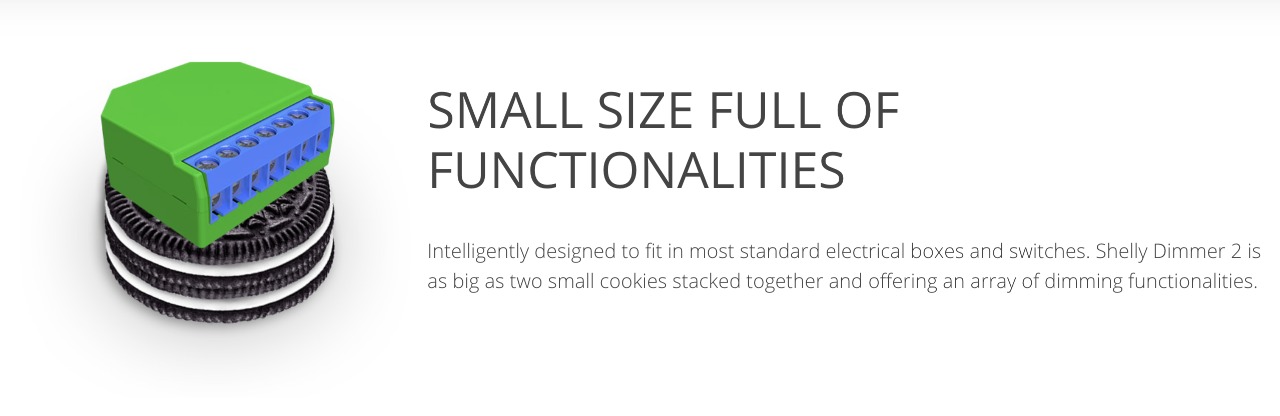

Size 42mm x 36mm x 14mm

Package Includes:

• 1 x Shelly Dimmer 2

Downloads:

• User manual

Shelly-dim-2
