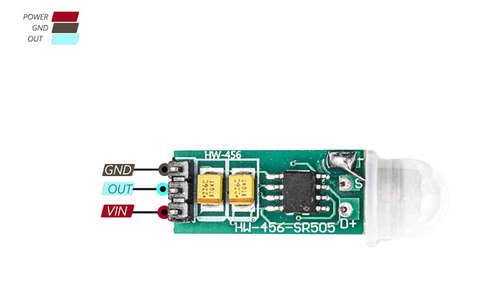

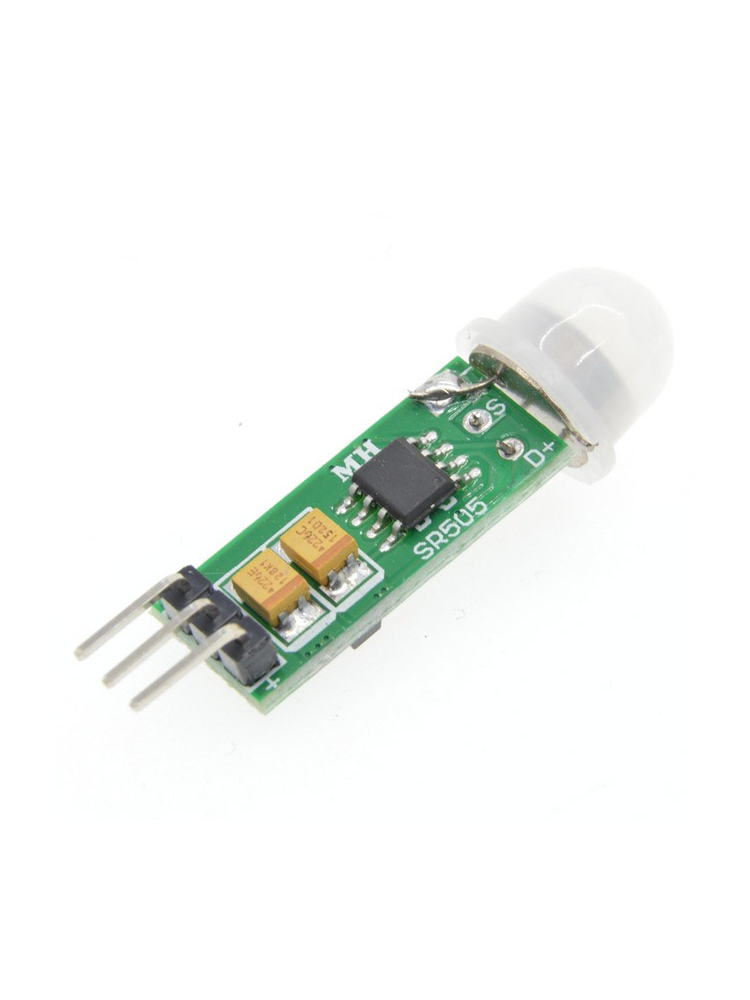

HC-SR505 Mini PIR Sensor

Overview:

The HC-SR505 is a small, infrared-based sensing module designed for automatic control products. It features high sensitivity, high reliability, and operates in ultra-low voltage, making it ideal for battery-powered applications. It is widely used in various auto-sensing electrical equipment.

Features:

• Infrared Technology: Provides high sensitivity and reliability for automatic control.
• Compact Size: Ultra-small form factor for easy integration into various devices.
• Low Power Consumption: Ultra-low voltage operation, suitable for battery-powered applications.
• Repeatable Trigger: Default setting allows for continuous triggering.

Specification:

• Operating Voltage Range: DC 4.5-20V
• Static Current: < 60µA
• Output Level: High 3.3V / Low 0V
• Trigger Mode: Repeatable trigger (default)
• Delay Time: Default 8 seconds ± 30%
• PCB Dimensions: 10 x 23 mm
• Induction Angle: < 100-degree cone angle
• Induction Distance: 3 meters
• Working Temperature: -20°C to +80°C
• Sensor Lens Dimensions: Diameter 10 mm (default)

Package includes:

• 1 x Flat Head 12mm 3-6V Waterproof Self-Locking Metal Push Button Switch with Red Light
