Kidsbits Intelligent Traffic System Kit Compatible With Arduino And Building Blocks

Overview:

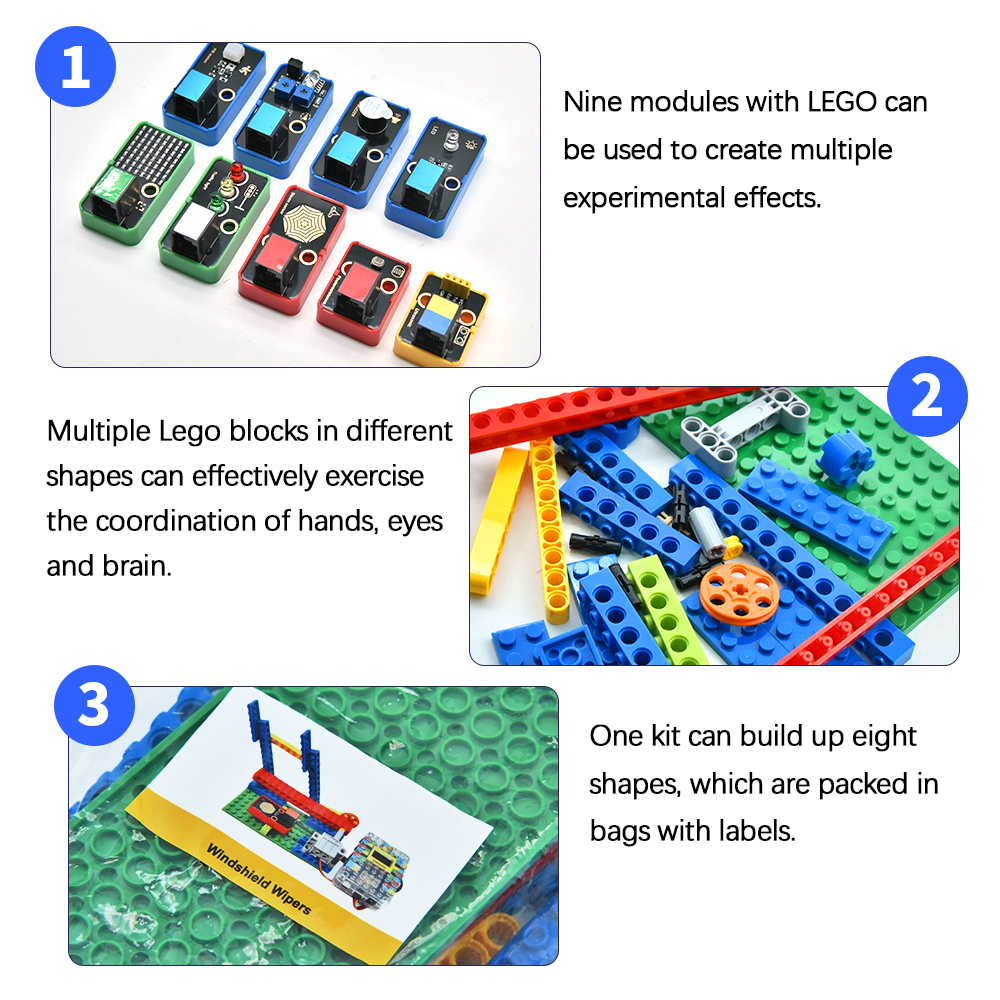

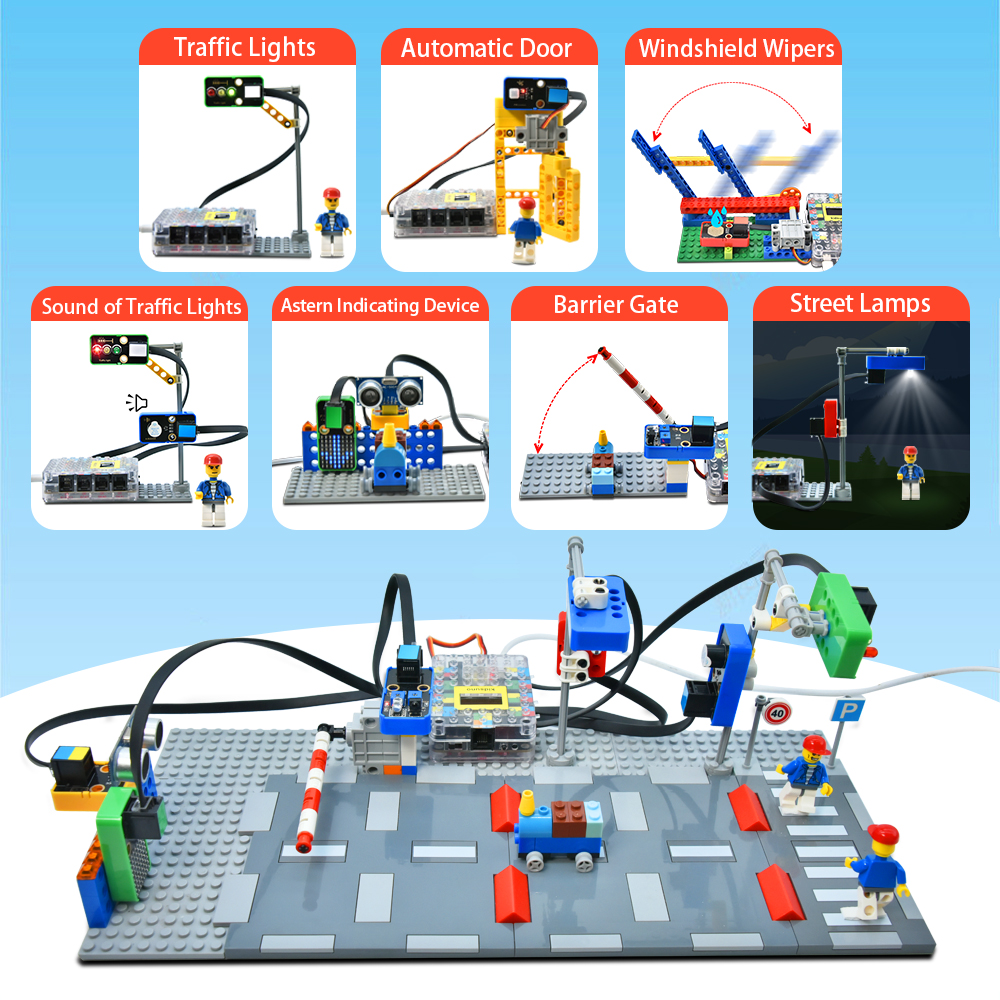

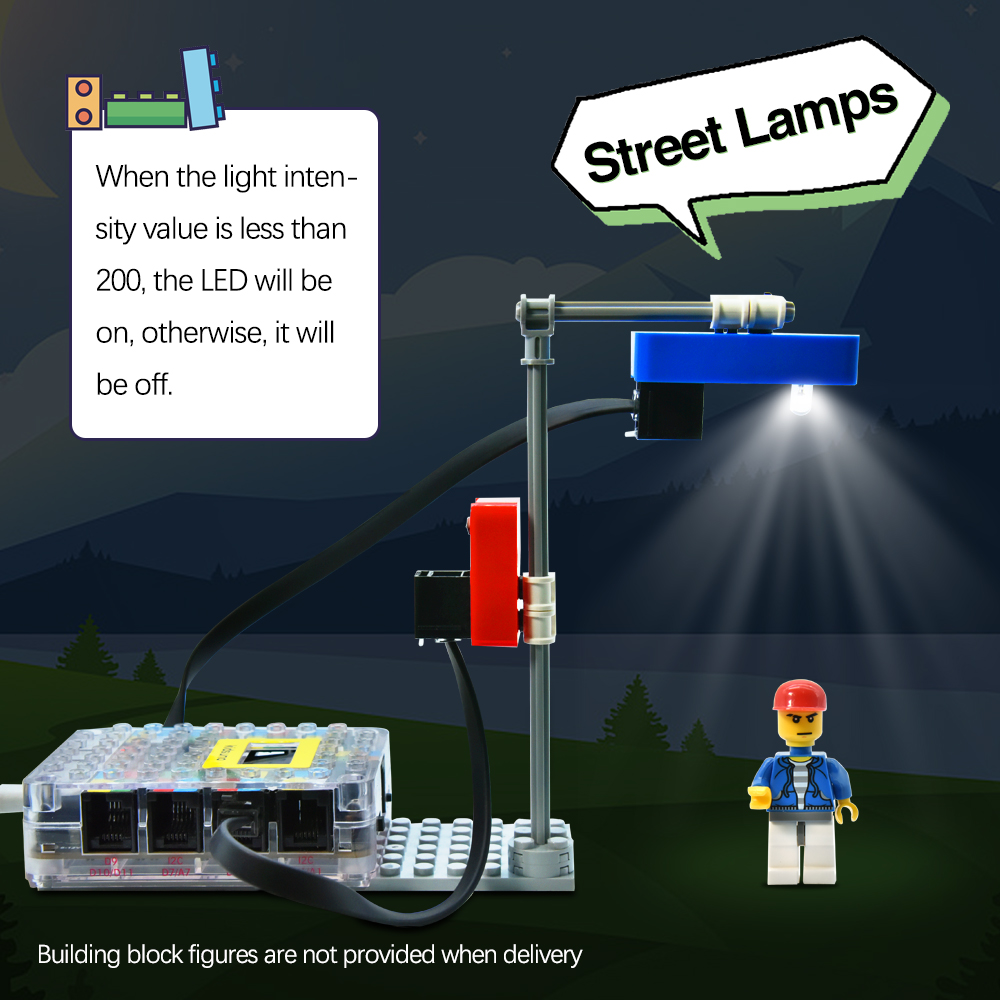

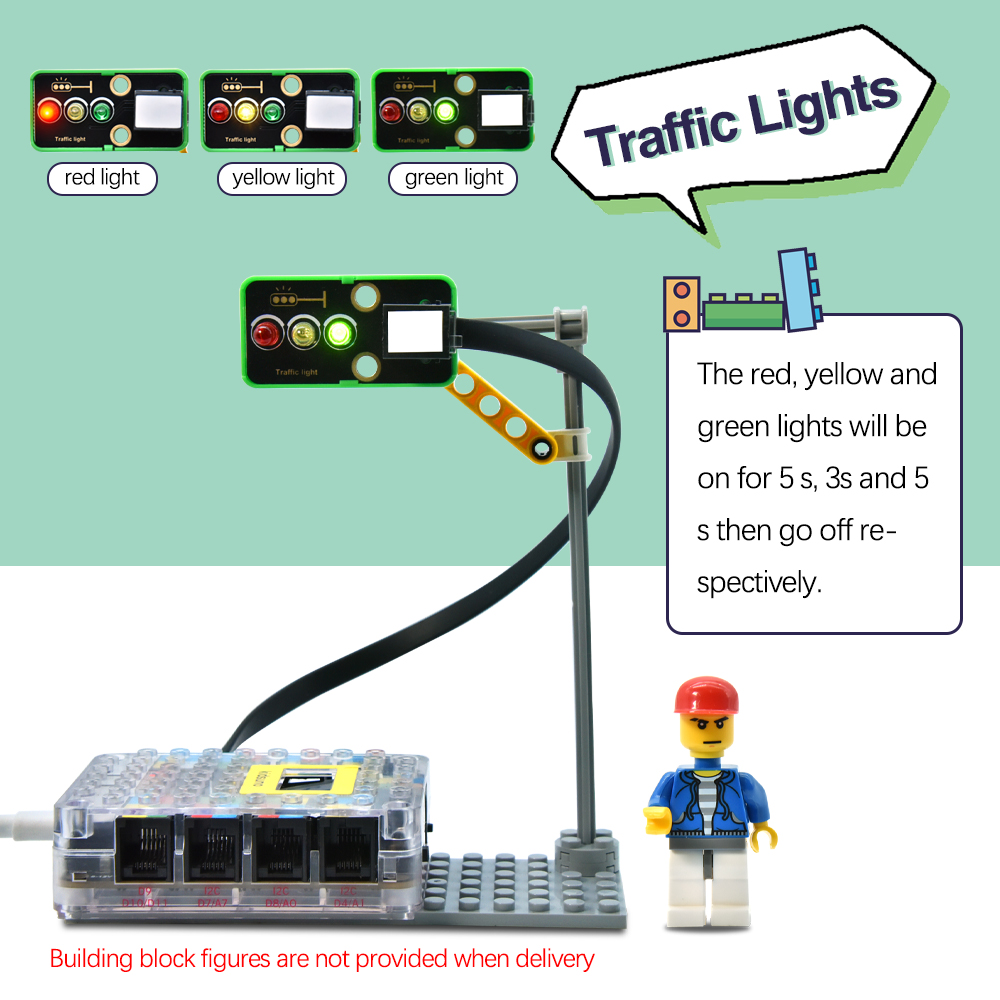

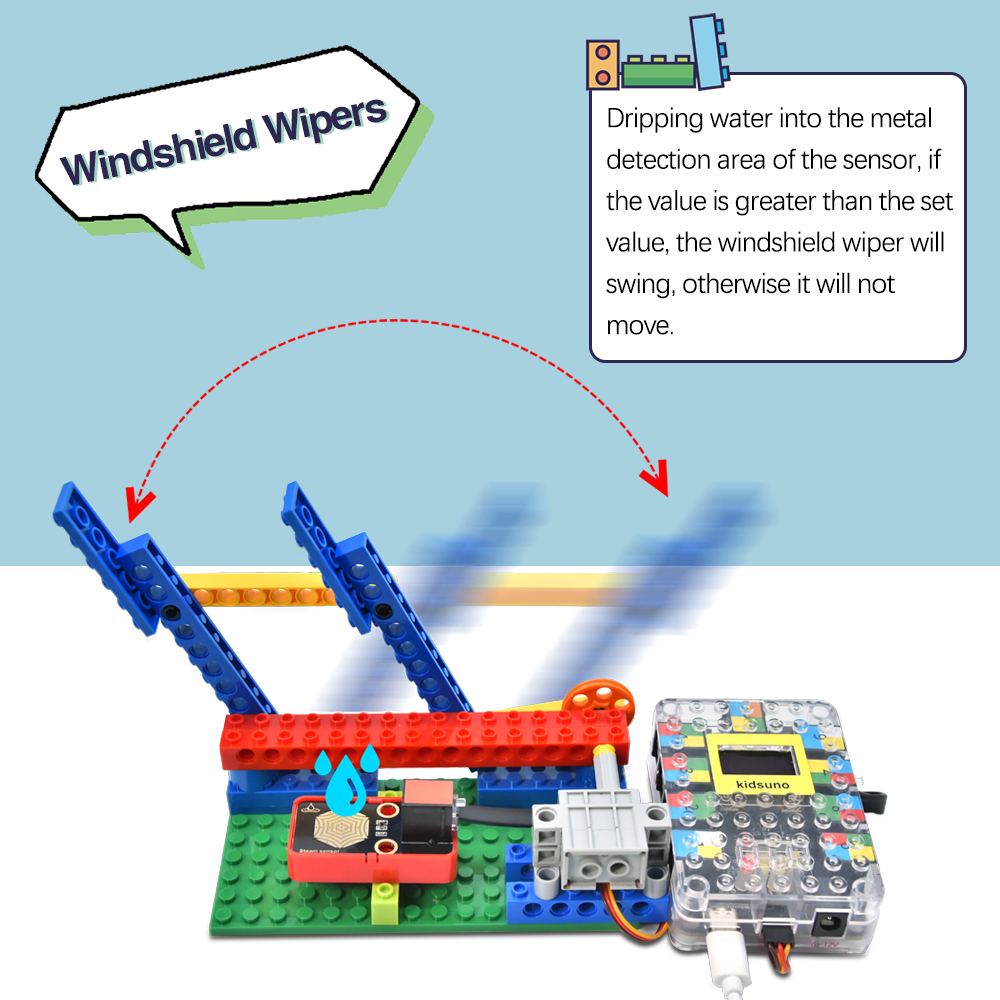

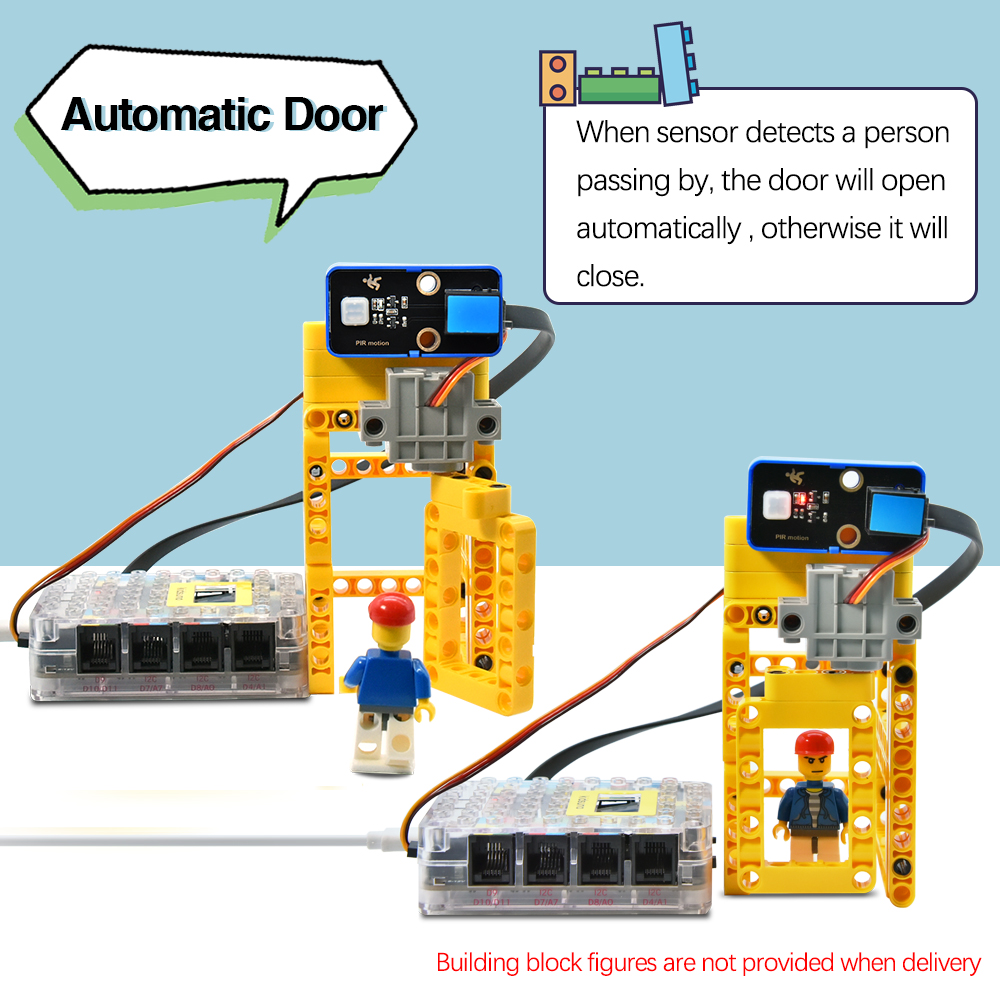

Based on Arduino and compatible with Building Blocks, "Intelligent Traffic" is a STEM project dedicated to programming education for children aged 6-9. It integrates a multitude of sensors and modules, including traffic lights, a photoresistor, a white LED, a PIR motion sensor, an 8x8 dot matrix display, and an active buzzer. With these components, children can easily create multiple intriguing projects such as street lamps, an automatic door, windshield wipers, and an integrated traffic system.

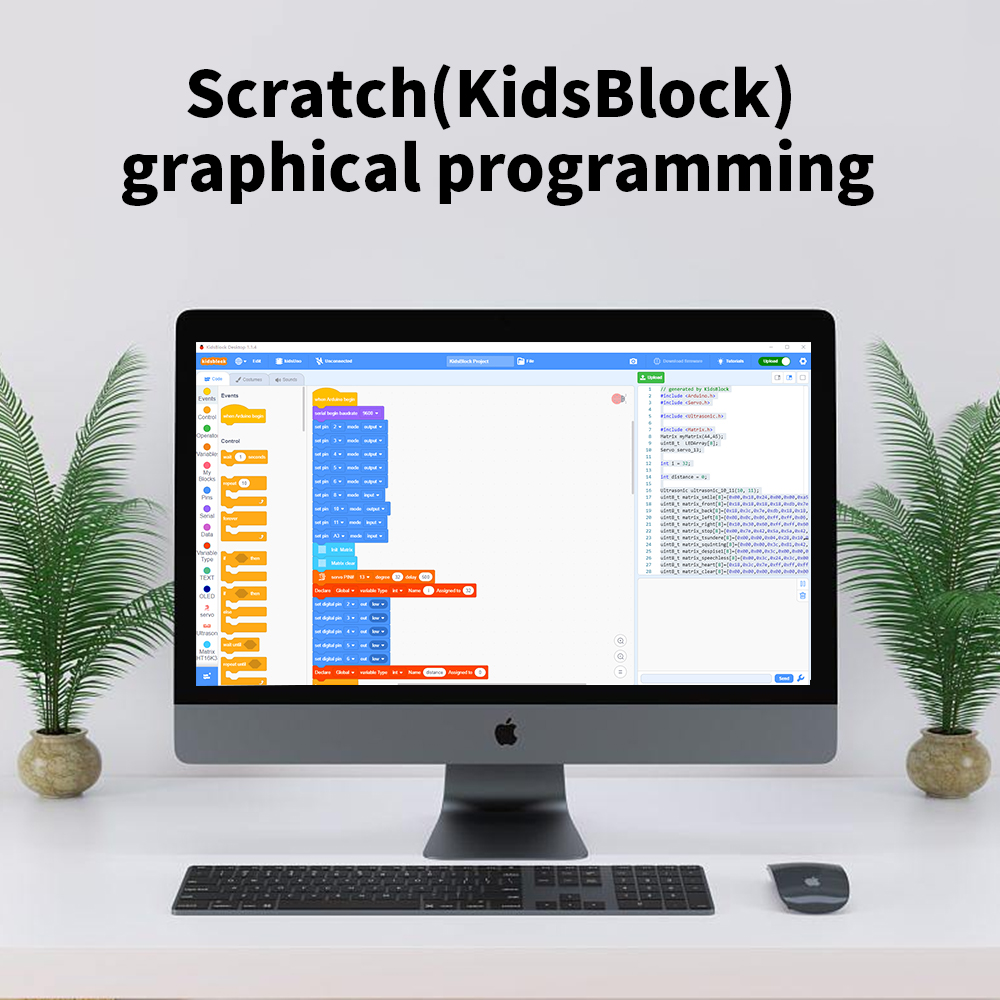

Equally important, Scratch graphical programming software allows children to learn from simple codes and master systematic programming knowledge. Additionally, the Building Blocks can be used to construct various shapes and impart basic physics and mechanical knowledge to children, greatly enhancing their logical analysis, creativity, hands-on skills, and problem-solving abilities.

Specification:

• Operating Voltage：5V
• Input Voltage：USB:5V, DC:6-12V
• Digital I/O Pins：14(of which 6 provide PWM output
• PWM Digital I/O Pins：6
• Analog Input Pins：8（A4 and A5 as fixed I2C）
• DC Current per I/O Pin：20mA
• Flash Memory：32KB(ATmega328P)of which 0.5 KB used by bootloader
• SRAM：2KB(ATmega328P)
• EEPROM：1KB(ATmega328P)
• Total Current：The max output of USB power supply is 400mA，and DC is 1.6A
• Max Power：8W
• Clock Speed：16MHZ
• Dimensions：87.5mm×60mm×20mm
• Weight：37g(without housing)
• Operating Temperature Range：-10°C~50°C

Resources:

• Kidsbits Tutorial

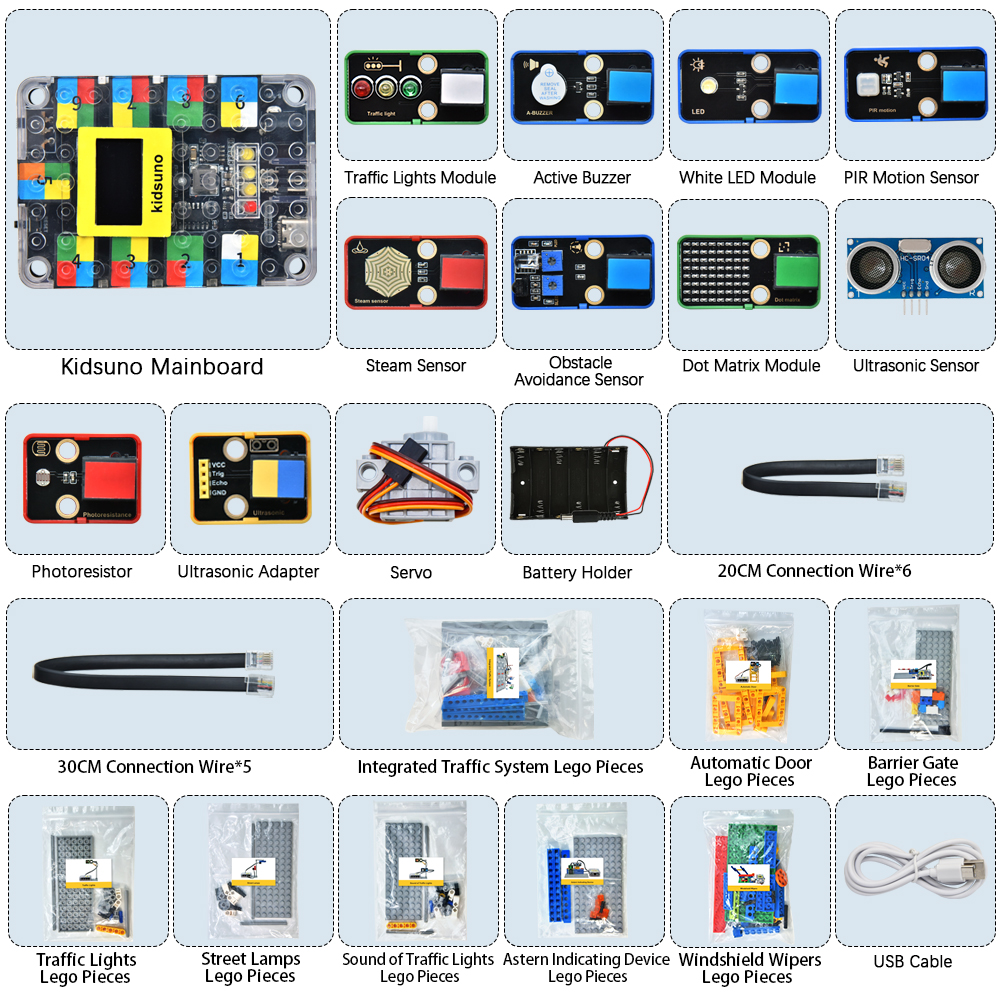

Package includes:

• 1 x Kidsbits Intelligent Traffic System Kit Compatible With Arduino And Building Blocks
