Sonoff TH 20A Origin Smart Temperature and Humidity Monitoring Switch

Overview:

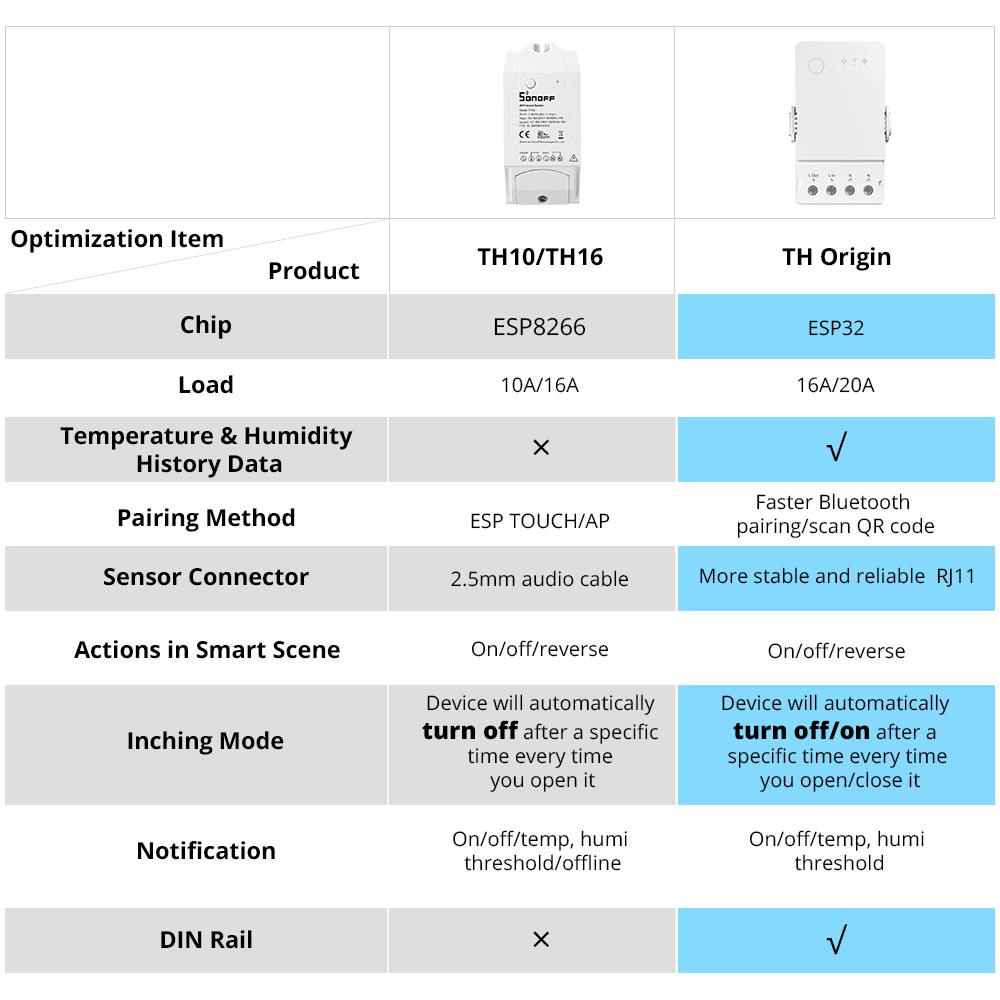

Sonoff TH Origin (the upgrade version of TH16) is a smart temperature and humidity monitoring switch with an ESP32 chip. The switch monitors the temperature and humidity in real time and once they reach a pre-set threshold or the device's on/off state changes, you will receive a push notification on the phone.

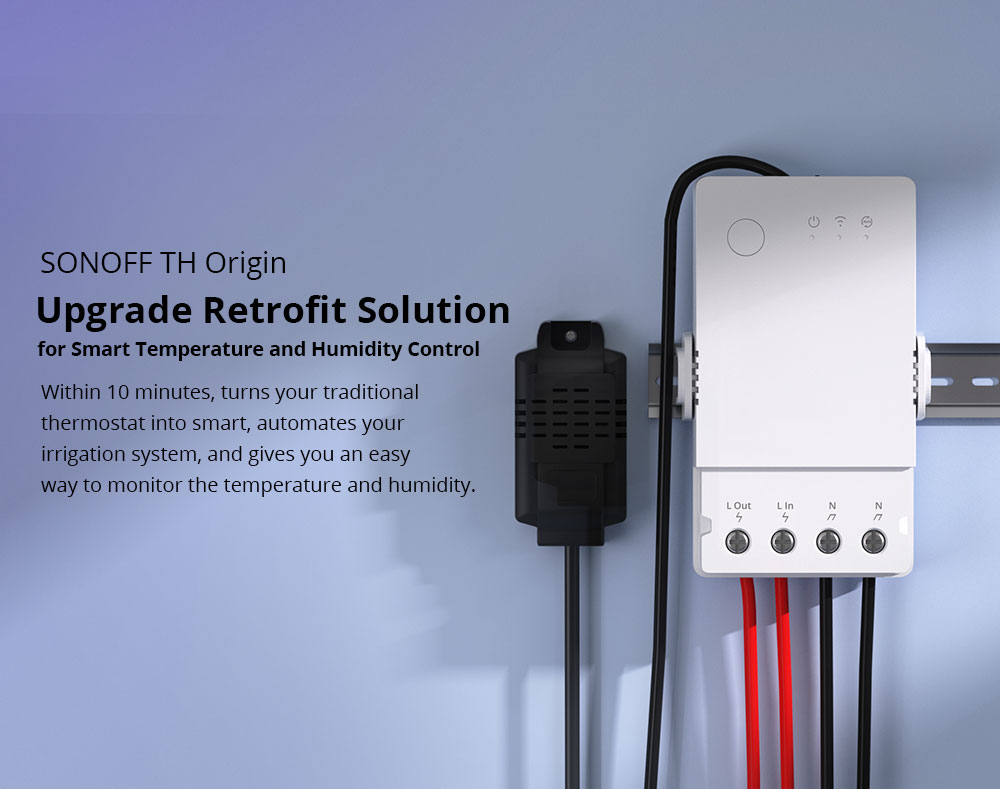

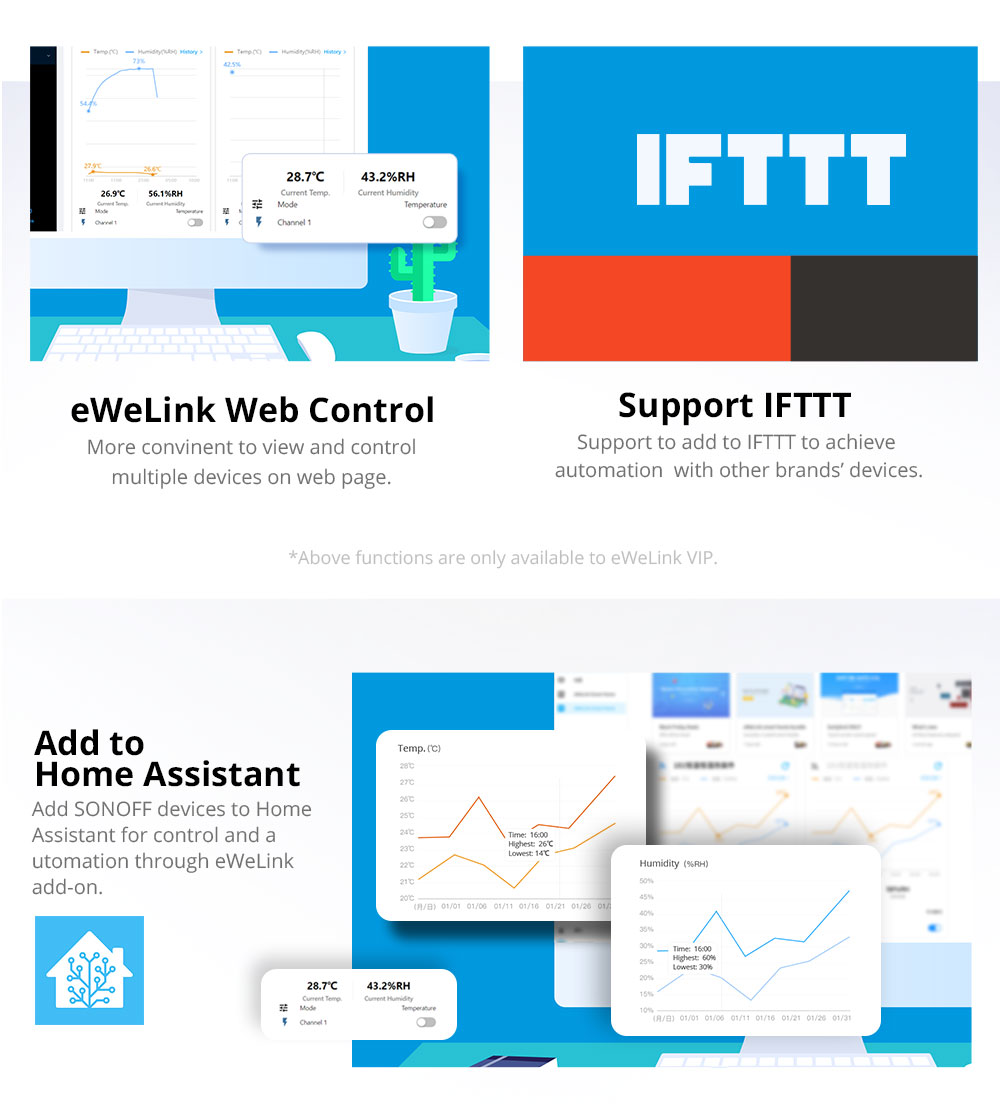

Sonoff TH Origin supports 20A max loads, compatible with more home appliances. TH Origin 6-Month Temp & Humi historical data is available and accurate to the hour. In the smart scene, temperature, humidity, on, off support setting as the trigger. Support is available for Sonoff devices on Home Assistant for control and automation through the eWeLink add-on. TH Origin can turn your traditional thermostat into a smart device , automate your irrigation system, and gives you an easy way to monitor the temperature and humidity.
The RL560 sensor extension cable can connect the Sonoff temperature and humidity sensors to extend your device's distance. THS01, DS18B20 can be extended to 60M, and MS01 Soil Moisture Sensor can be extended to 10M.
Note: Sensors and Extension cable sold separately.

Features:

• 20A Max Output: Support to connect 20A Max high load, compatible with more home appliances.

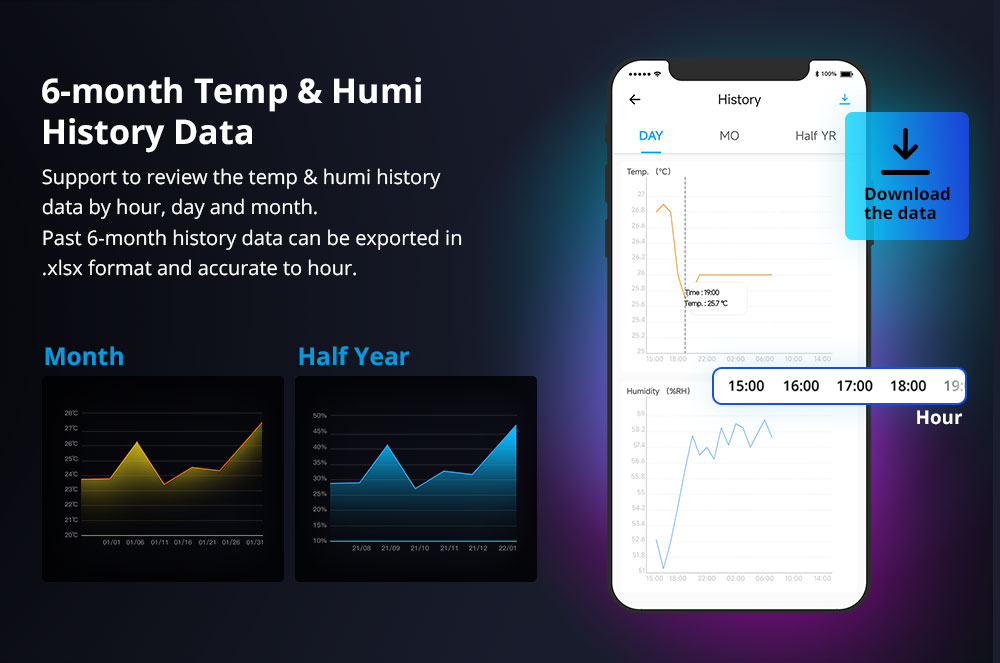

• 6-Month Temp & Humi Historical Data by Hours: Support to check the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.

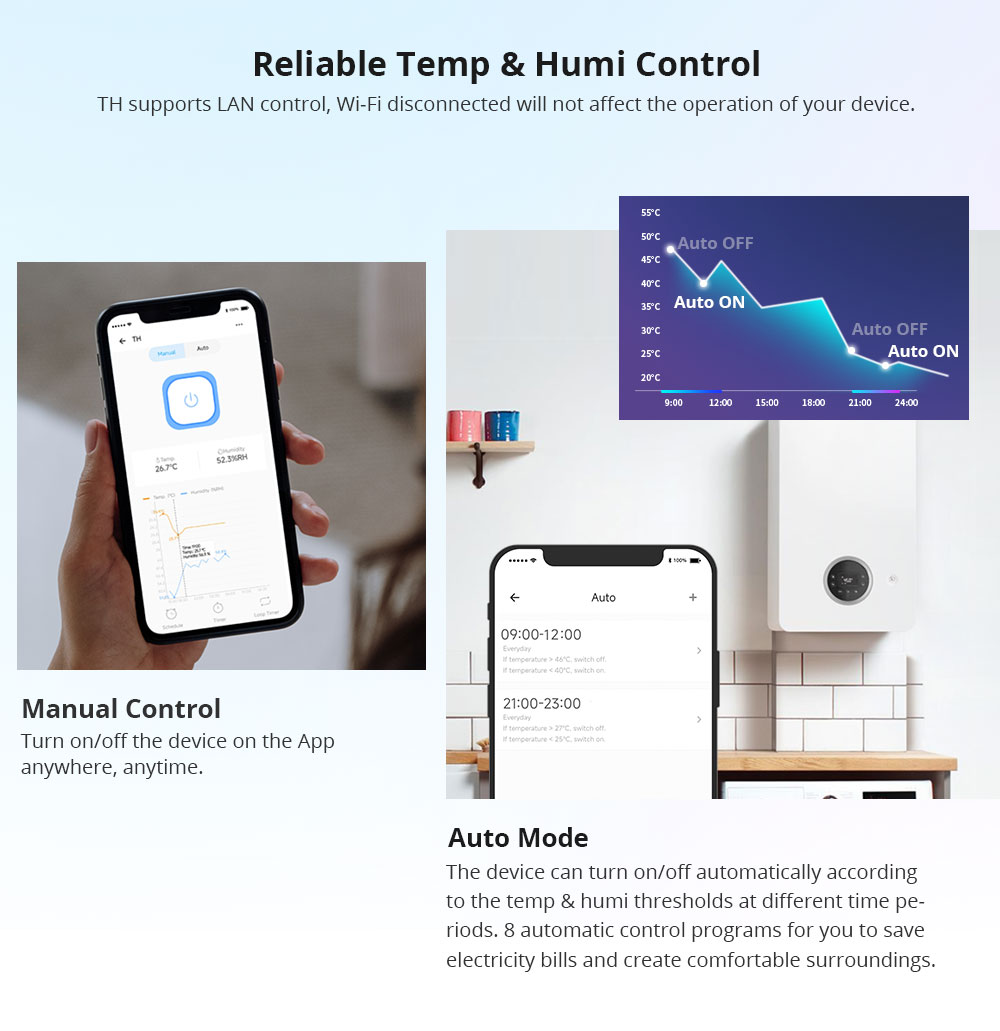

• Local Automatic Control: Support LAN control, the device can turn on/off automatically according to the temp & humi thresholds at different time periods. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.
• Voice Control: Compatible with Alexa, Google Assistant. Just speak out your command, they can do on/off as you say, and check the temperature and humidity for you.

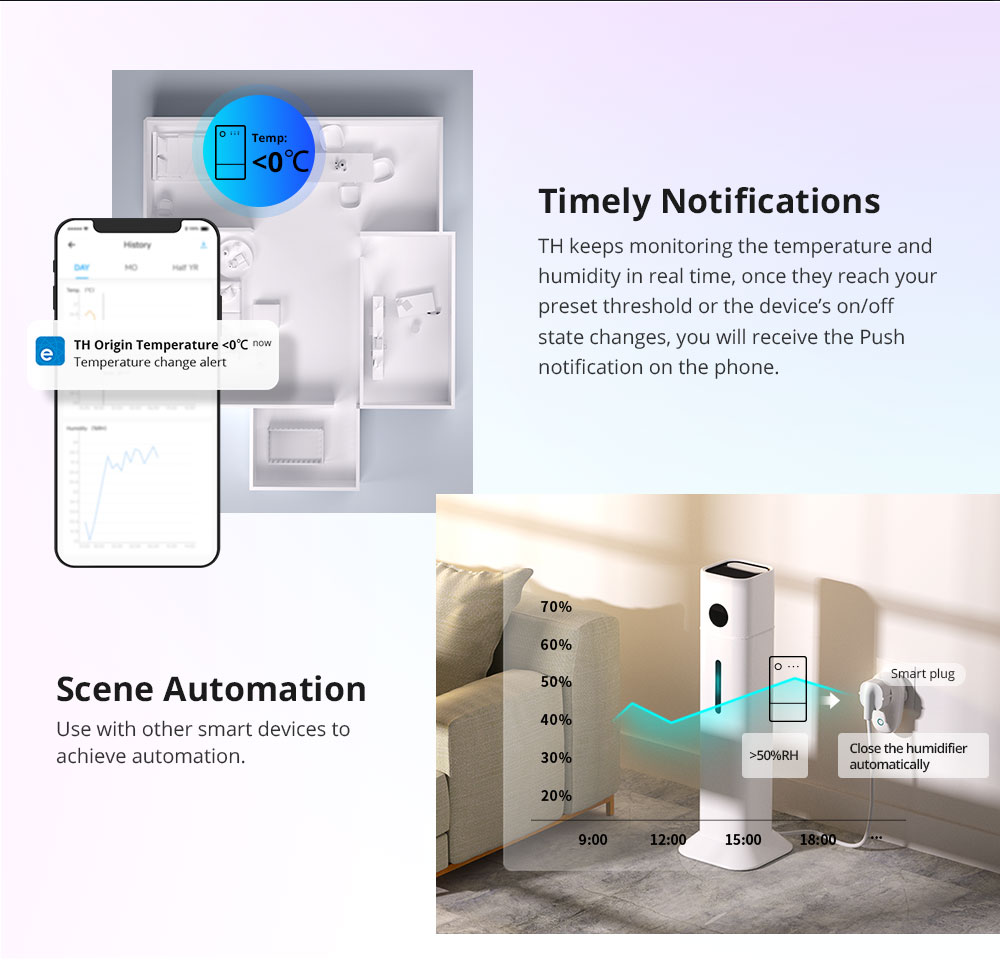

• Smart Scenes: TH Origin can trigger other smart devices when the temperature and humidity reach the threshold or the device switches on or off. The device on, off, and invert can also as execute action.

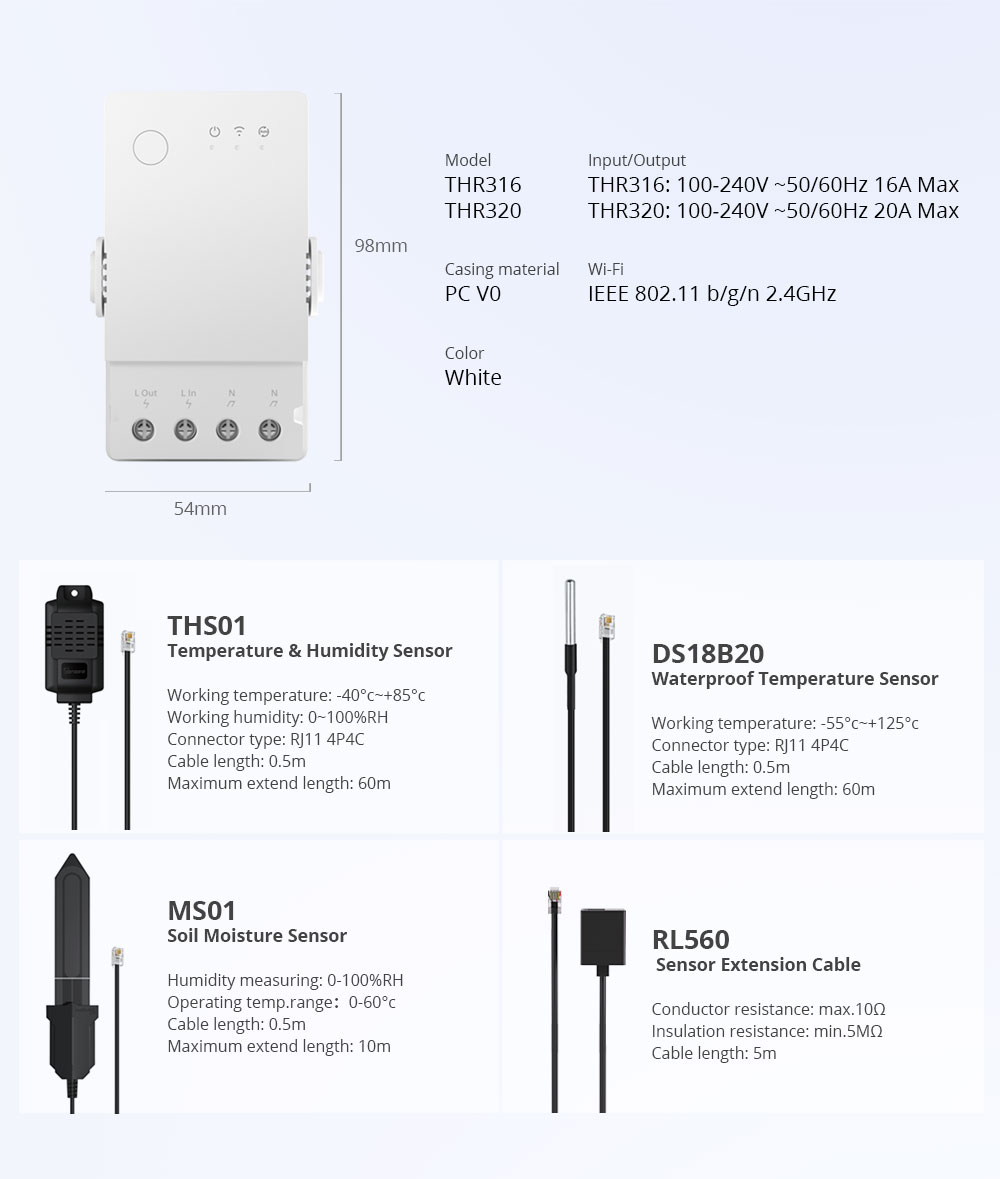

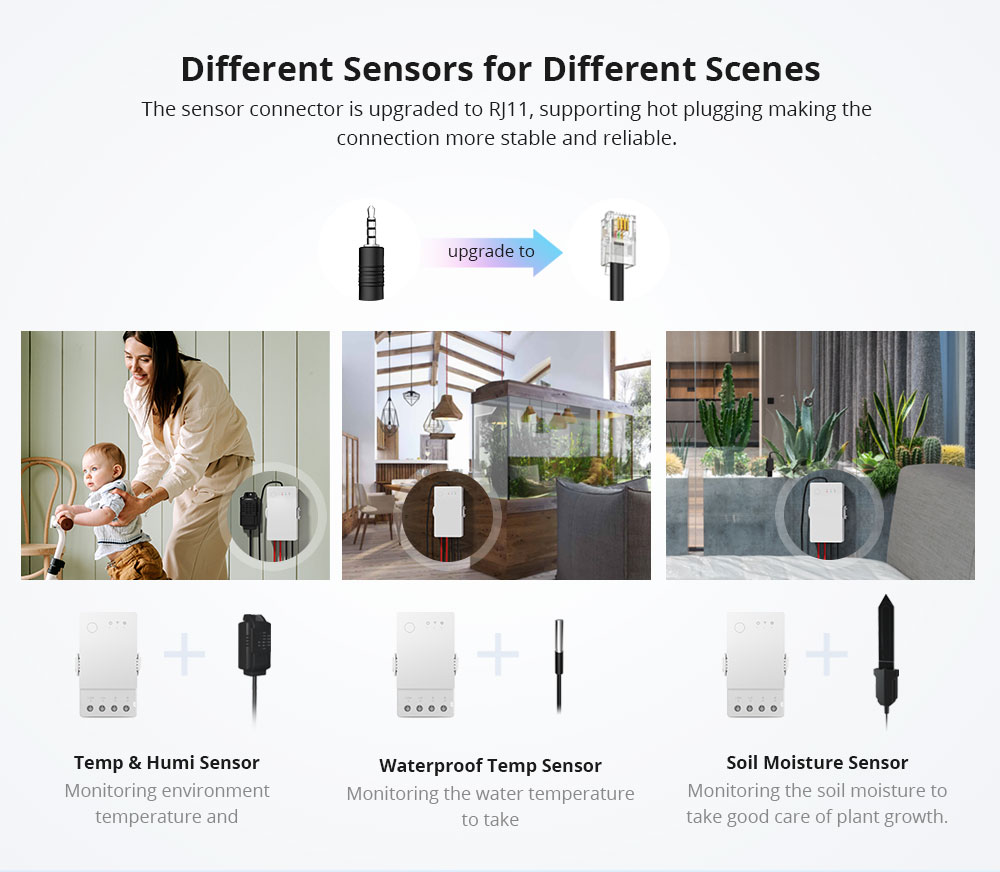

THS01 Sensor

• Sensor Type: Temperature & Humidity sensor
• Connector type: RJ11 4P4C
• Temperature Measuring Range: –40℃~+85°C
• Humidity Measuring Range: 0~100%RH
• Cable Length: 50cm

DS18B20 Sensor

• Sensor Type: Waterproof temperature sensor
• Connector type: RJ11 4P4C
• Working Temperature: -55℃~+125℃
• Length: 50cm

MS01 Sensor

• Sensor Type: Soil Moisture Sensor
• Humidity Measuring Range: 0~100%RH
• Operating Temperature Range: 0℃~60°C
• Cable Length: 50cm

RL560 Sensor Extension Cable

• Conductor resistance: max.10Ω
• Insulation resistance: min.5MΩ
• Length: 5m cable length & Max. 60m extendable length.

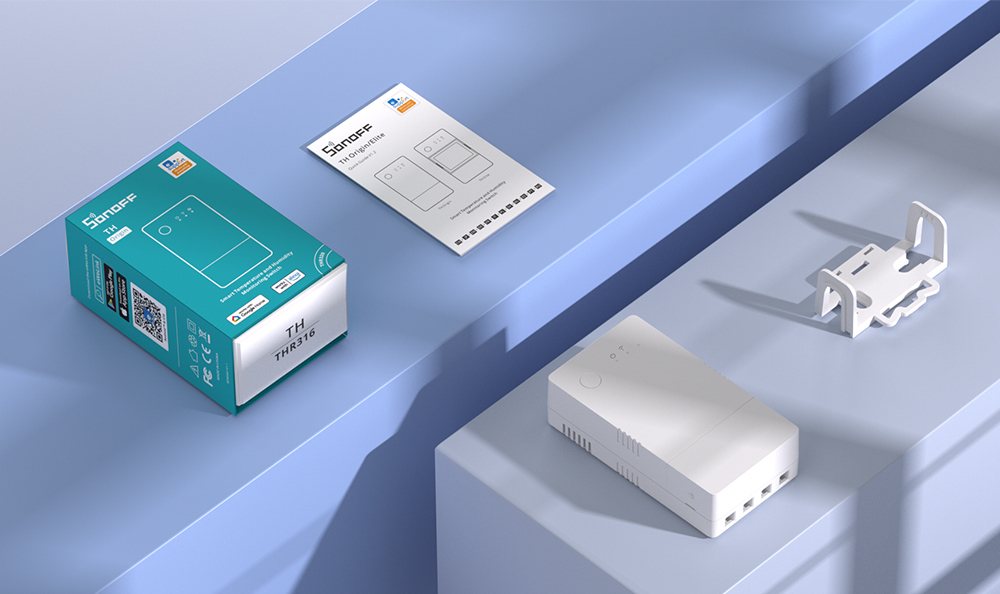

Package includes:

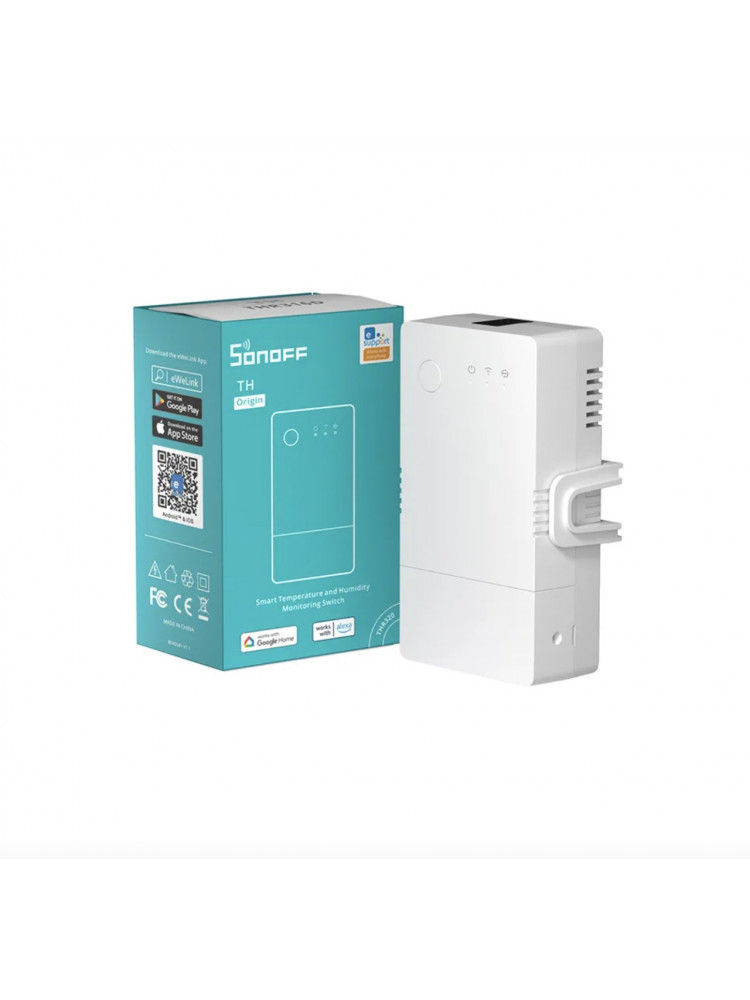

• 1 x Sonoff TH Origin 20A Smart Temperature and Humidity Monitoring Switch

Resources:

• User Manual and Certification
