XGO Robot Kit (Without micro:bit Board）

Overview:

The micro:bit XGO Micro Bit Dog Robot Kit is an AI dog micro robot with 12 DOFs, designed for artificial intelligence education for teenagers. It supports omni-movement and is able to perform as a real pet dog. Students can gain a good understanding of AI technology by learning the mechanism, electronic knowledge, programming, and AI while playing with it.

Specification:

• Battery: Built-in 7.4V 1500mAh lithium batteries
• Charger input: 100-240V 50~60Hz
• Charger output 8.4V 1A
• Battery Life: estimated at 120min
• Body material: Aluminium alloy
• Limb material: PLA
• Master Control IC: STM32/ESP32
• Program Methods: MakeCode、Python
• APP Control: Supported
• 2.4G Remote Control: Supported
• Dimensions(L*W*H): 235mm x 140mm x 160mm （Standing state）
• Weight: 500g

Resources:

• Tutorial

Package includes:

• 1 x XGO micro robot
• 1 x Ring:bit V2
• 1 x Charger
• 1 x Plug
• 1 x Bolt Driver
• 1 x Accessories Pack

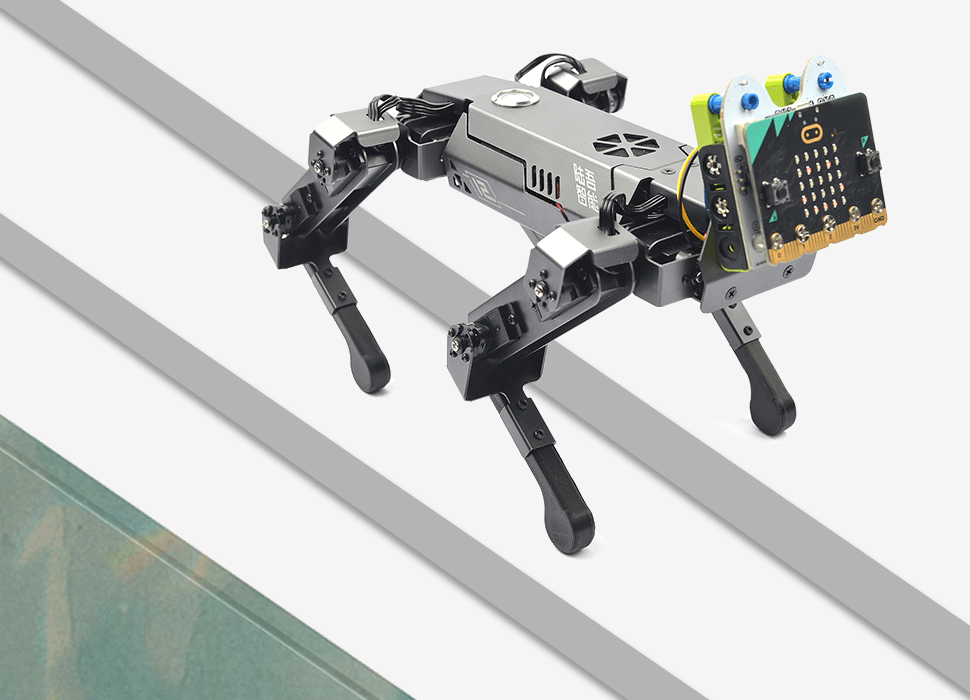

Small and Cute:

The XGO micro:bit robot is only about the size of a book, with a small body, and can freely play on the table.

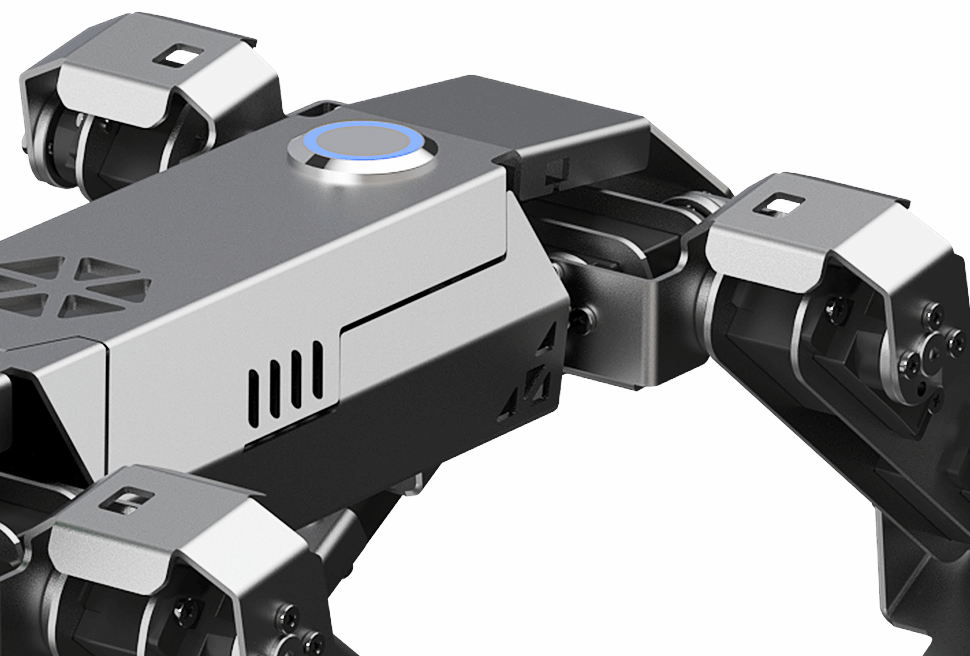

Full Metal Shell:

The shell of the XGO micro:bit robot is made of aluminium alloy material and is covered with an anodized coating.

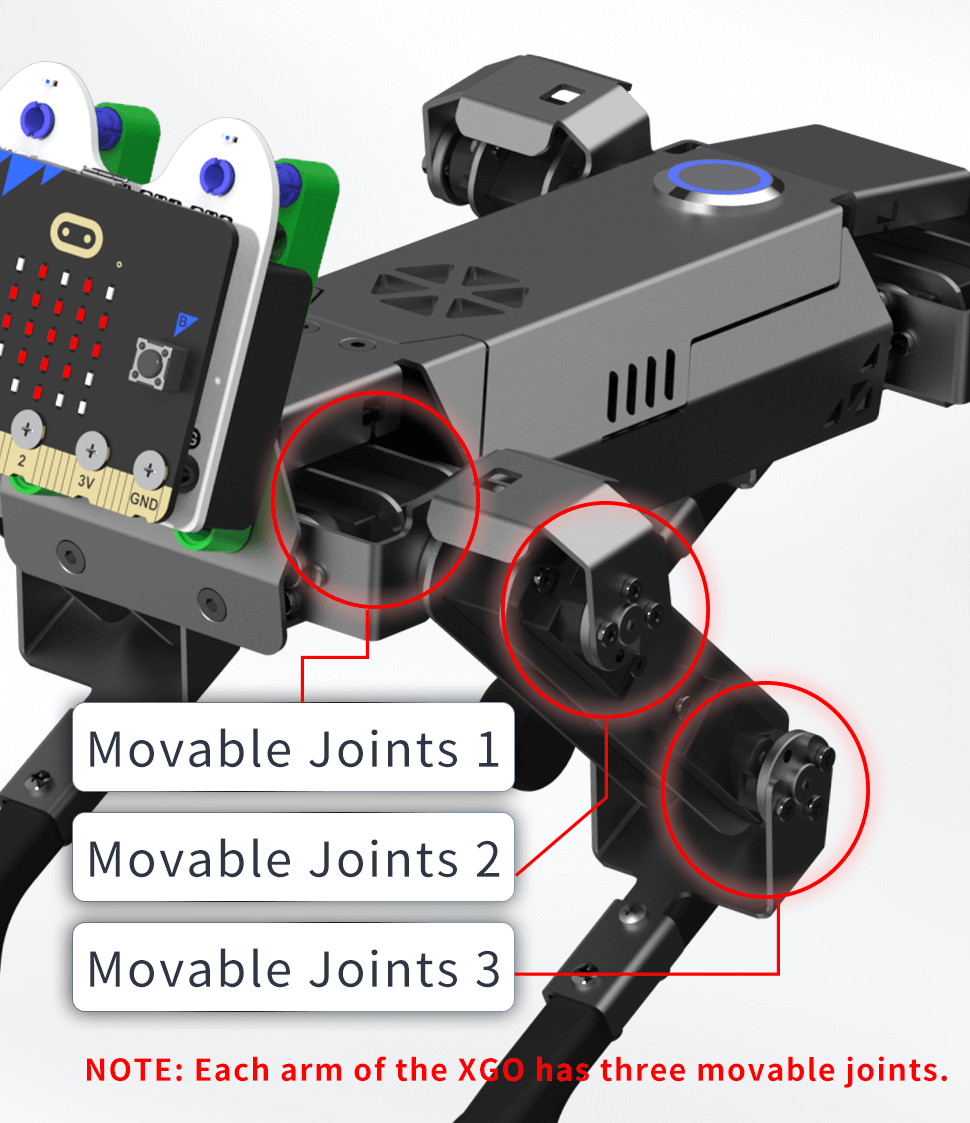

12 DOFs:

With reference to bionics, the XGO micro:bit Robot Kit has 12 movable joints, enabling it to achieve a variety of actions. It can move forward, backward, left, and right, and supports the superposition of omnidirectional and multidirectional motion.

Various Control Methods:

The XGO micro:bit Dog Robot Kit can be controlled independently using the mobile app or programmed with behaviour commands through graphical programming. It can also be controlled with our ELECFREAKS Joystick:bit 2 Kit.

Rich Features:

It contains more than 19 common actions, such as sitting down, crawling forward, shaking hands, looking for food, and other bionic movements.

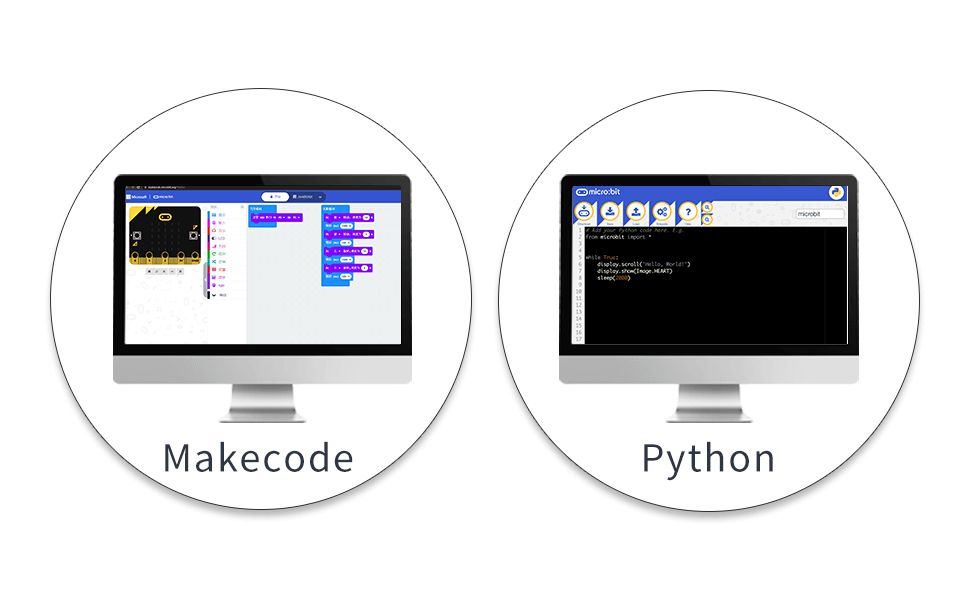

Support for Multiple Programming Languages:

The XGO micro:bit Robot Kit supports micro:bit graphical programming and Python programming.

Expandable:

The XGO micro:bit Robot Kit can be connected to other masters such as Arduino and Raspberry Pi for secondary development. It can also be connected to other sensors, such as the ELECFREAKS Smart AI Lens Kit and the ELECFREAKS Octopus MP3 Player Sensor.

Multi-Scene Application:

The XGO micro:bit Robot Kit can be used in outdoor and indoor activities, classrooms, and various other scenarios.
