1S 3.7V 25A 18650 Lithium Battery Protection Board

Overview:

The 1S 3.7V 25A 18650 Lithium Battery Protection Board can be used to protect a battery from overcharging, discharging, short circuit and overcurrent.

Specification:

• Maximum operating current: 24A
• Upper limit instantaneous current: 42A
• Overcharge voltage range: 4.28±0.05V
• Over-discharge voltage range: 2.4V±0.05V
• Charging voltage: 4.2V
• Quiescent current: <30ua br="">• Size: 50 x 25 x 3.5mm

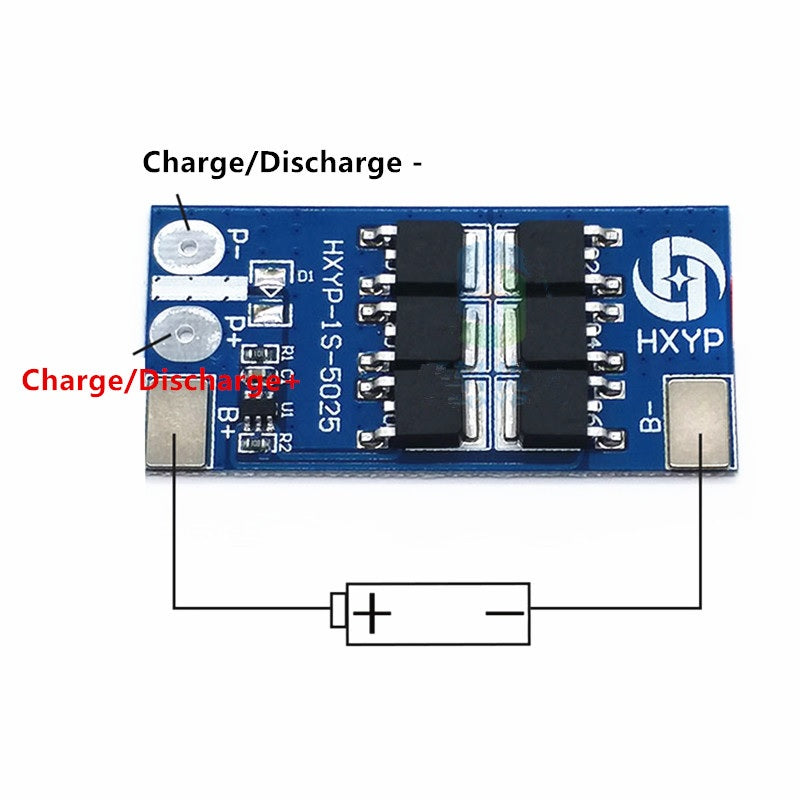

Instructions:

• B + : Connect to the positive battery terminal
• B-: Connected to the negative battery terminal
• P + : For the battery pack output - input positive
• P- : For the battery pack output - input negative

Package includes:

• 1 x 1S 3.7V 25A 18650 Lithium Battery Protection Board
