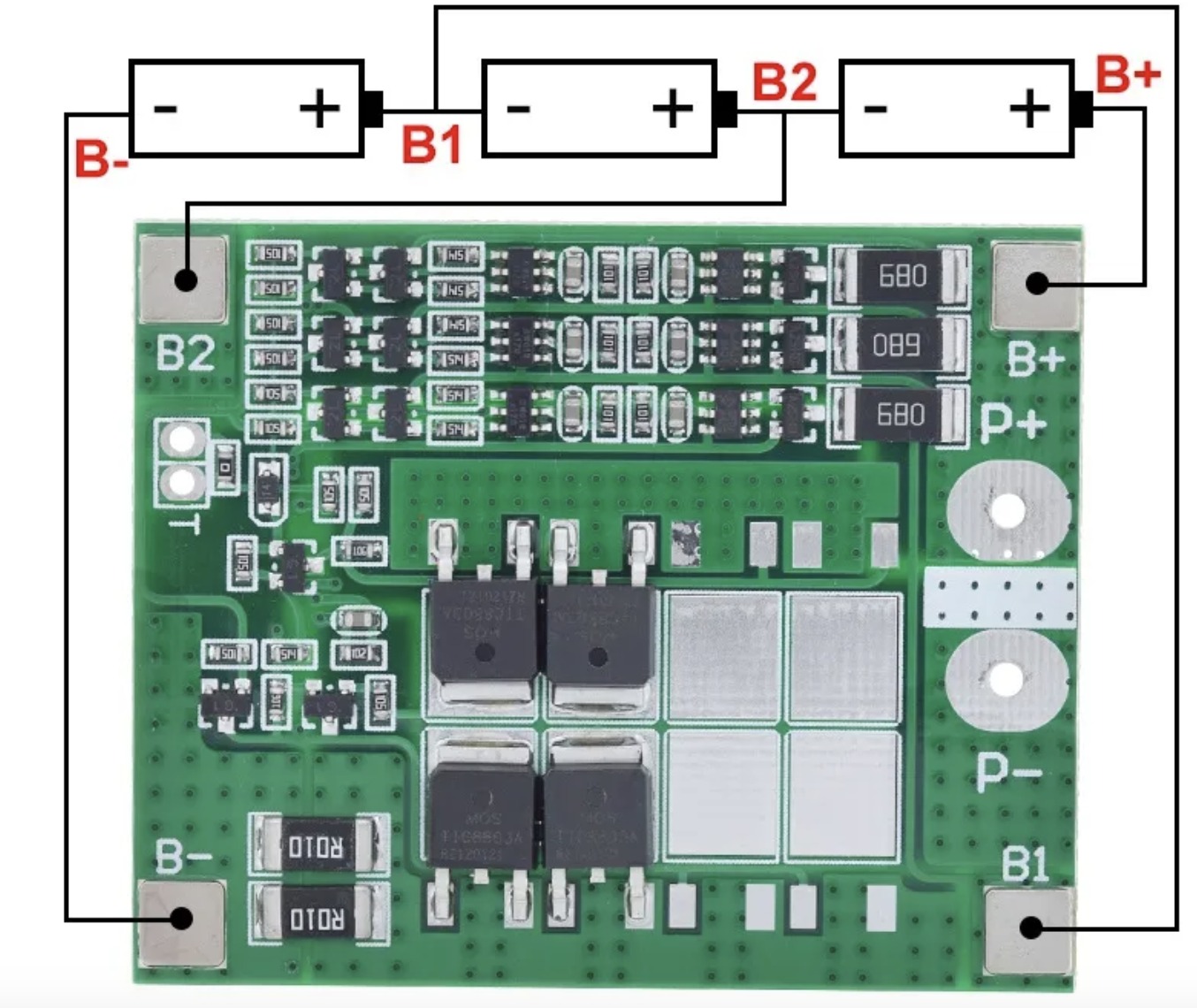

3S 12.6V 15A 18650 Lithium Battery Protection Board with Balance

Overview:

The 3S 12.6V 15A 18650 Lithium Battery Protection Board can be used to protect a battery from overcharging, discharging, short circuit and overcurrent.

Specification:

• Overcharge voltage range: 4.25-4.35v ± 0.05v
• Overpressure voltage range: 2.3-3.0v ± 0.05v
• Upper limit working current: 0-15A (pay attention to heat)
• Operating temperature: -40 --- +50 ℃
• Upper limit instantaneous current: 15A
• Storage conditions: -40-- +80 ℃
• Quiescent current: less than 30uA
• Internal resistance: less than 100mΩ
• Short circuit protection: protection, delay self-recovery.
• Equalizing current: 45 mA
• Charging voltage: 12.6V-13V
• Size: 56 x 45 x 4.0mm

Package includes:

• 1 x 3S 12.6V 15A 18650 Lithium Battery Protection Board
