Lithium 2.4A 5V Powerbank Charger Module

R 150.00

The Lithium 2.4A 5V Powerbank Charger Lithium Charger module comes fitted with a with display and connectivity for Type-C, Micro USB, Lightning, and USB. Ideal to help you build your own power bank.

Quantity

Stock Available
40 Items

Overview:

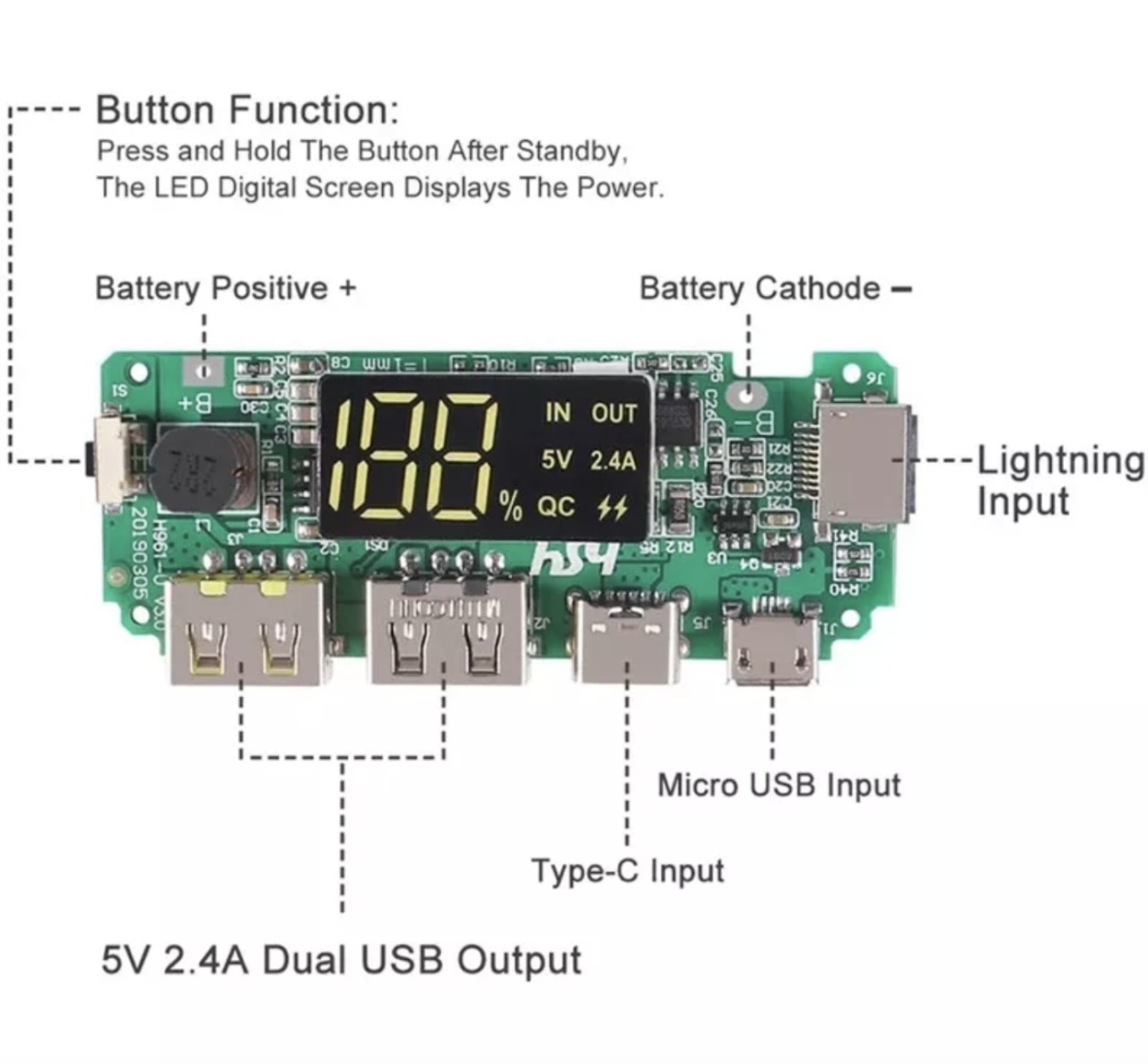

The Lithium 2.4A 5V Powerbank Charger Lithium Charger module comes fitted with a with display and connectivity for Type-C, Micro USB, Lightning, and USB. Ideal to help you build your own power bank. The module comes a few features including a display Button function: Press and hold the button after standby, the LED digital screen displays the power.
Note: The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!!

Features:

• LED Indicator Display: The LED digital screen displays the current battery charge while charging.
• When discharging, the LED digital screen displays the current power, and the display is saved in +- 30 seconds (double-click the button to resume display).
• The system will provide an accurate battery indication after a complete charge and discharge.
• Dual Output Current: 5V 2.4A;
• Protection: constant current; overcharge protection; over-discharge protection; short circuit protection

Specification:

• Constant Current: 2.4A; Input Voltage B+ to B-: 3.0 - 4.2V
• Suggest working temperature: -5~45℃
Prevent Overcharge Protection:
• Detection voltage: 4.20 +/- 0.05V
• Release voltage: 4.100 +/- 0.05V
• Detection delay time: less than 200 ms
Short Circuit Protection
• Short detection delay time: less than 50 uS
• Release Conditions: Cut off load
Prevent Over discharge Protection
• Detection voltage: 3.0 +/- 0.10V
• Release voltage: 3.10 +/- 0.10V
• Detection delay time: less than 100 ms
• IR of PCM : Less than or equal to 65 momega
• Material: ABS
• Normal current consumption of PCM: Max 60uA;Stanby current consumption: Max 50uA
• Dual Output Current: 5V 2.4A;
• Size: 6.5 x 2.5cm

Package includes:

• Lithium 2.4A 5V Powerbank Charger
