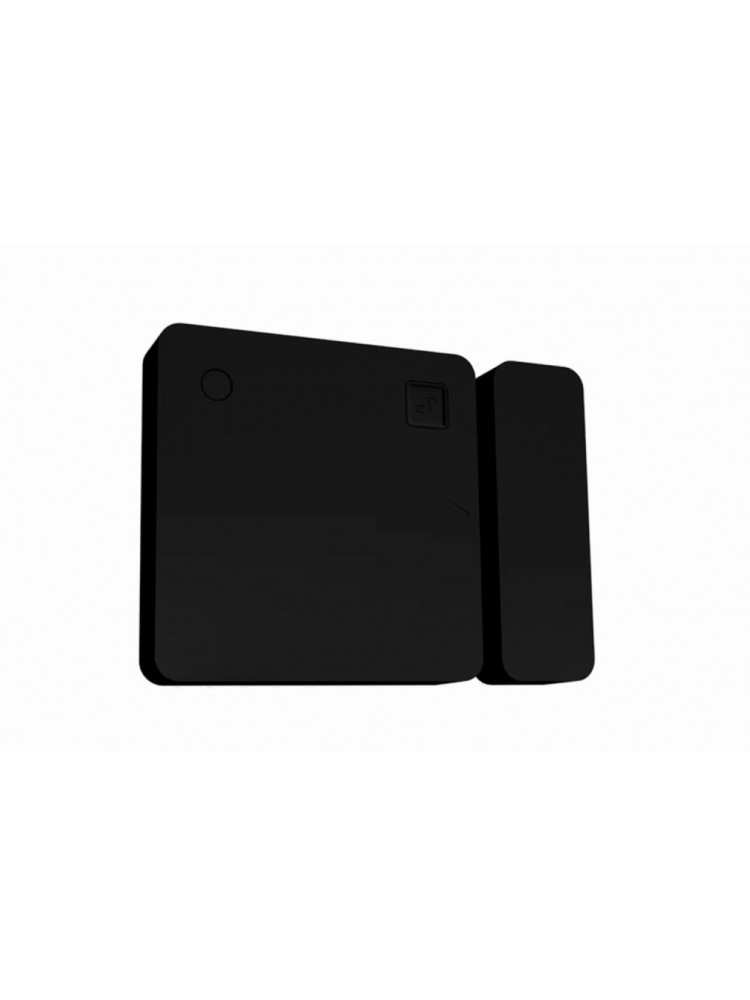

Shelly Blu Door/Window - Black

Overview:

Shelly BLU Door/Window is a Bluetooth sensor designed to detect the opening and closing of a door or a window. It can also measure the angle of a inclination of a door or a window that tilts and turns. In addition, it features a light sensor. N.B. To use this device with the Shelly Smart Control app, a gateway is necessary. Compatible gateways are Shelly BLU Gateway, or any Shelly Plus, Pro or Gen3 device (excluding sensors)

Features:

• Detects and reports opening or closing of doors/windows
• Measures tilt angle and luminosity
• Battery 1 x 3 V CR2032 - included
• Battery life - up to 5 years
• Easy control through the Shelly Smart Control app, BTHome protocol or various platforms
• Can be integrated into automation scenarios and scenes

Modes of Operation:

• Regular mode - the Device broadcasts the current open/closed state, illuminance, and battery status each time the open/closed state changes (door/window opened or closed). If a door or window, which tilts and turns is opened, the Device immediately broadcasts information about the event, the illumination, and the battery status at the time of the opening detection. Two seconds later, it broadcasts inclination angle, the illumination, and the battery status at the moment. Then every 8 seconds the Device checks the inclination angle. If a change is detected, the Device broadcasts the new angle value.
• Beacon mode - the Device broadcasts the current open/closed state, illuminance, and battery status every 30 seconds. You can enable the Beacon mode from the Device settings in the Shelly Smart Control application. For more details, visit the Shelly Smart Control guide.
N.B. The battery life may be significantly reduced when the Device is in Beacon mode.

User Interface:

• One push button (behind the back cover)
• Press and hold for 10 sec to pair ShellyBLU Door/Window with another Bluetooth device.
• Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).

Specification:

Physical:

• Size (HxWxD): 35x35x7 ±0.5 mm (Sensor); 35x12x7 ±0.5 mm (Magnet)
• Weight: 10g ±1 g (Device with battery); 8g ±1 g (Magnet)
• Mounting: 2 way tape
• Shell material: Plastic
• Colour: Black, White, Brown

Environmental:

• Ambient temperature: -20 °C to 40 °C
• Humidity: 30 % to 70 % RH

Electrical:

• Power supply voltage: 1 x 3v CR2032 Battery (included)
• Battery Life: Up to 5 years

Sensors:

• Reed switch: Yes
• G-Sensor: Yes
• Light Sensor: Yes

Radio:

• RF band: 2400 - 2483.5 MHz
• Max. RF power: < 4 dbm
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU:

• CPU: EFR32BG22C222F352GM32

Firmware Capabilities:

• Encryption: AES encryption (CCM mode)
• Beacon mode: Yes

Resources:

• Components and APIs - This device
• Components and APIs - All Shelly devices and services
• Compliance
• Installation guide
• Battery material safety data sheet

Package includes:

• 1 X Shelly Blu Door/Window - Black
