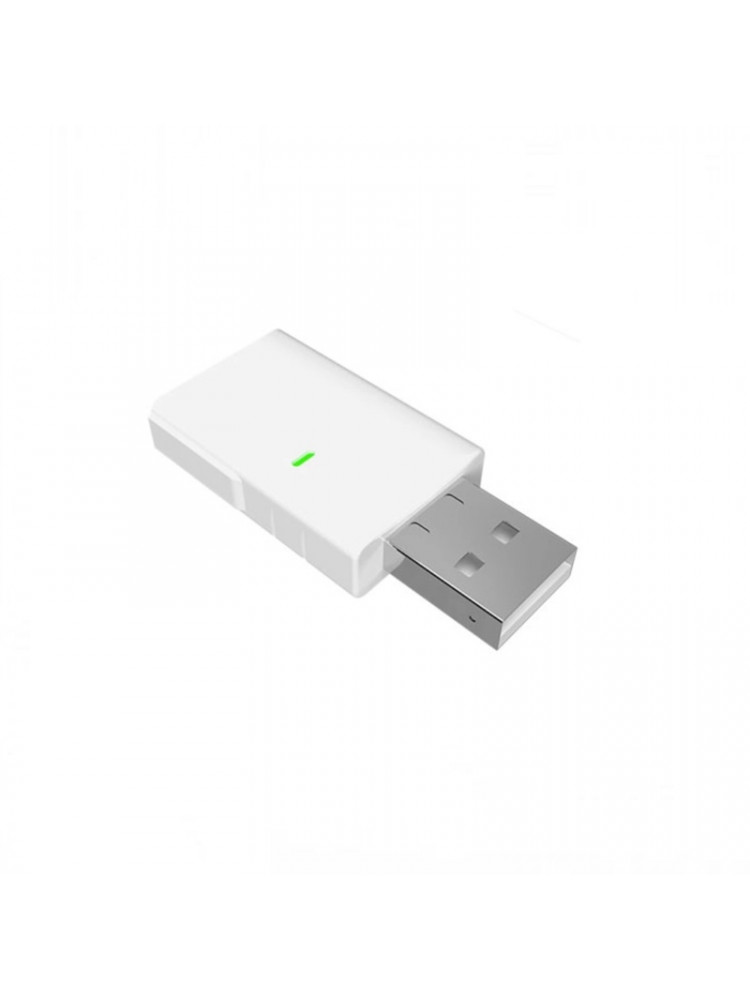

Shelly Blu Gateway

Overview:

Step into a new era of seamless connectivity with Shelly BLU Gateway. Typically, Bluetooth-enabled devices require a Bluetooth gateway like a Plus or Pro device, but if you want to use Shelly BLU devices with your Gen-1 Shelly relays (Shelly Dimmer2, Shelly RGBW2, etc), Shelly BLU Gateway is the solution! This compact dongle revolutionizes your setup without the need to wire extra relays – just plug it into an adapter. It bridges the gap between your Shelly BLU devices and the broader Shelly ecosystem, capturing Bluetooth signals and transferring them to the cloud or locally to other devices without Bluetooth capability.

Features:

• USB Type-A plug
• Scripting for local control
• Supports MQTT, WebSocket or any other compatible home automation system, like Home Assistant
• Wi-Fi range extender
• Can scan the Bluetooth network and find all other Bluetooth devices; can trigger actions on third-party devices using scripting

Main Applications:

• Residential
• MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
• Government/municipal
• University/college

User interface:

• Inputs
   • One (Reset) button
   • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
   • Press and hold for 10 seconds to factory reset the Device.
• Outputs
   • LED indication
   • Blue light indicator will be on if in AP mode.
   • Red light indicator will be on if in STA mode and not connected to a Wi-Fi network.
   • Yellow light indicator will be on if in STA mode and connected to a Wi-Fi network. Not connected to Shelly Cloud or Shelly Cloud disabled.
   • Green light indicator will be on if in STA mode and connected to a Wi-Fi network and to the Shelly Cloud.
   • The light indicator will be flashing Red/Blue if OTA update is in progress.

Specification:

Physical:

• Size (HxWxD): Button: 45x20x8 mm
• Weight: 5g
• Shell material: Plastic
• Colour: White

Environmental:

• Ambient temperature: -20 °C to 40 °C
• Humidity: 30 % to 70 % RH

Electrical:

• Power supply: 1 x 5VDC (from USB Type-A Port) - Not included
• Power Consumption: < 1W

Radio:

• RF band: 2400 - 2495 MHz
• Max. RF power: < 20 dbm
• Wi-Fi Protocol: 802.11 b/g/n
• Wi-Fi Range: upto 30m indoors adnd 50m outdoors
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 20 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU:

• CPU: ESP32
• Flash: 4 MB

Firmware Capabilities:

• Scripting: Yes
• MQTT: Yes
• CoAP: No

Resources:

• Components and APIs - This device
• Components and APIs - All Shelly devices and services
• Compliance
• Installation guide

Package includes:

• 1 X Shelly Blu Gateway
