Joystick Module for Arduino

Overview:

The Joystick module is a versatile and ergonomic input device designed for microcontroller-based projects like Arduino. It allows precise two-dimensional control along with a built-in push button, making it ideal for robotics, motor control, servos, or gaming projects.

Features:

• Dual Axis Control: Includes two 10K potentiometers for X and Y position tracking.
• Push Button: Built-in normally open momentary switch activated by downward pressure.
• Spring Return: Automatically returns to the center position for precise control.
• Ergonomic Design: Thumb-friendly dome for smooth and comfortable operation.
• Compact and Easy-to-Use Interface: 5-pin connection with labeled pins on a standard 2.54mm pitch for easy integration.
• Durable Construction: Designed for long-term usage with a strong mechanical structure.

Specification:

• Potentiometer Resistance: 10K Ohms (X and Y axes).
• Switch Type: Normally open (NO), momentary push button.

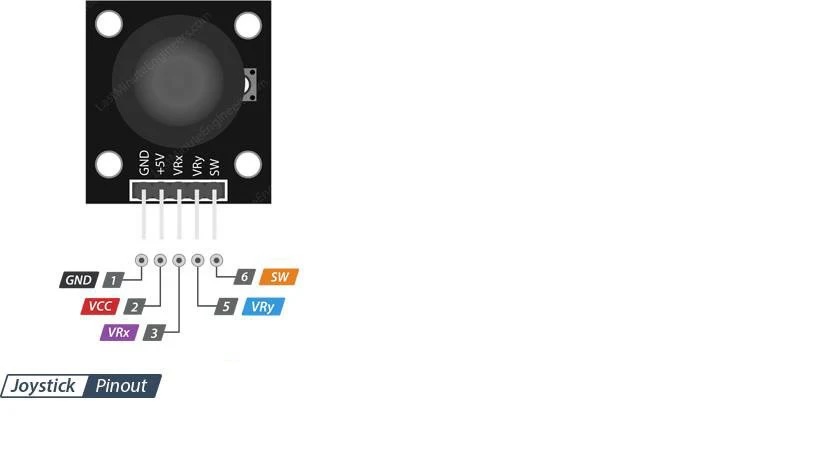

• Pin Interface:
   • VCC: Power supply (typically 5V).
   • GND: Ground connection.
   • VRx: Analog output for the X-axis.
   • VRy: Analog output for the Y-axis.
   • SW: Digital output for the push button.
• Pin Spacing: 2.54mm pitch (standard for Arduino and other microcontrollers).
• Recommended Wiring: Use 5-pin BLS connectors for easy setup.

Applications:

• Robotics: Control robotic arms, wheels, or servo motors.
• Gaming: DIY gaming controllers or arcade-style inputs.
• Automation: Remote operation of machines or devices.
• Educational Projects: Great for learning analog-to-digital conversion and input handling.

Package includes:

• 1 X Joystick Module
