ESP32-S NodeMCU development board

Overview:

The ESP32 NodeMCU development board has WiFi and Bluetooth connectivity. I/O pins of ESP-WROOM-32 module are available through the extension headers. Programme the board using Lua/AT commands/MicroPython/Arduino/IOT source code

Features:

• Onboard ESP-WROOM-32 module, CP2102, USB to UART converter
• USB port for power input, firmware programming, or UART debugging

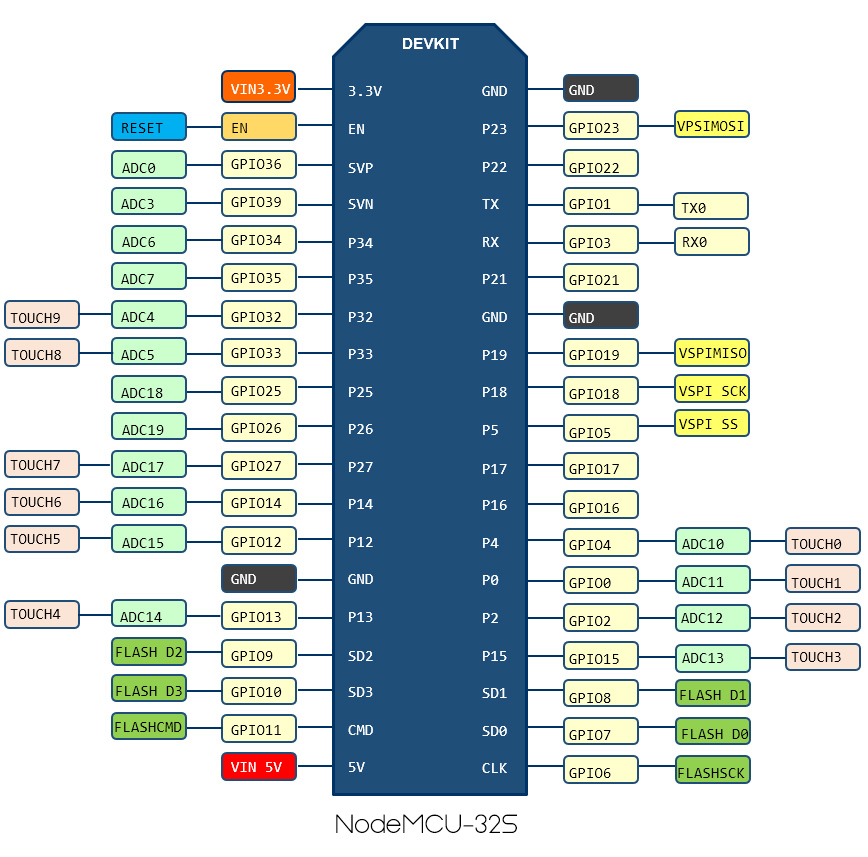

• 2 x 19pin extension headers with breakout for all the I/O pins
• 2 x keys, used as reset or user-defined

Specification:

• WIFI module: ESP-WROOM-32
• Processor: ESP32-D0WDQ6
• Built-in Flash: 32Mbit
• Antenna: Onboard PCB antenna
• Peripheral interface: UART/GPIO/ADC/DAC/SDIO/PWM/I2C/I2S
• WiFi protocol: IEEE 802.11 b/g/n
• Bluetooth Version: 4.2
• Frequency: 2.4G ~ 2.5G (2400M ~ 2483.5M)
• WIFI mode: Station / SoftAP / SoftAP Station
• Power supply: 5V
• Logic level: 3.3V
• Dimensions: 48.26mm x 25.4mm

Applications:

• IOT devices
• Smart Home
• IP camera
