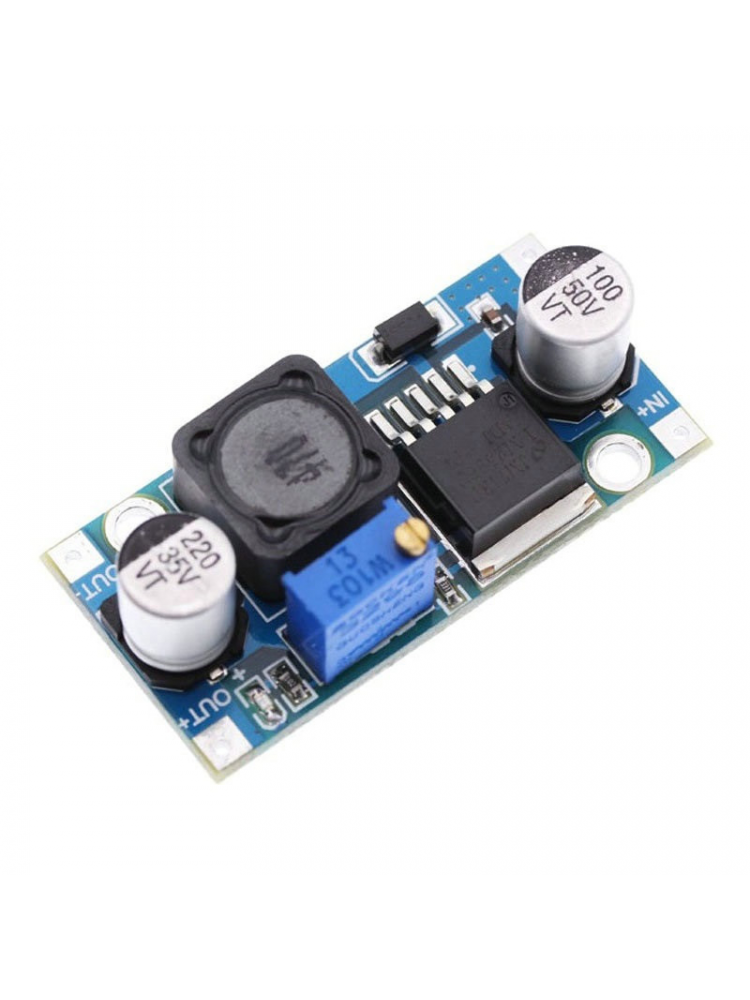

LM2596 4.5-40V 3A buck module

R 32.00

LM2596 DC-DC step-down power supply module. 3A adjustable, voltage regulator 4.5-40V

Are you looking for an enclosure? Download the 3D print files from here or you can purchase a 3D printed enclosure from here


Stock Available
164 Items


Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)

Switching Frequency: 150KHz

Rectifier: Non-Synchronous Rectification

Module Properties: Non-isolated step-down module (buck)

Short circuit protection: current limiting, since the recovery

Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)

Full load temperature rise: 40

Load regulation: ± 0.5%

Voltage regulation: ± 2.5%

Dynamic response speed: 5% 200uS


Input voltage:4V-35V

Output voltage:1.23V-30V(Adjustable)

Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)


Package list:

1 xLM2596 Low Ripple Buck Voltage Step Down Module
