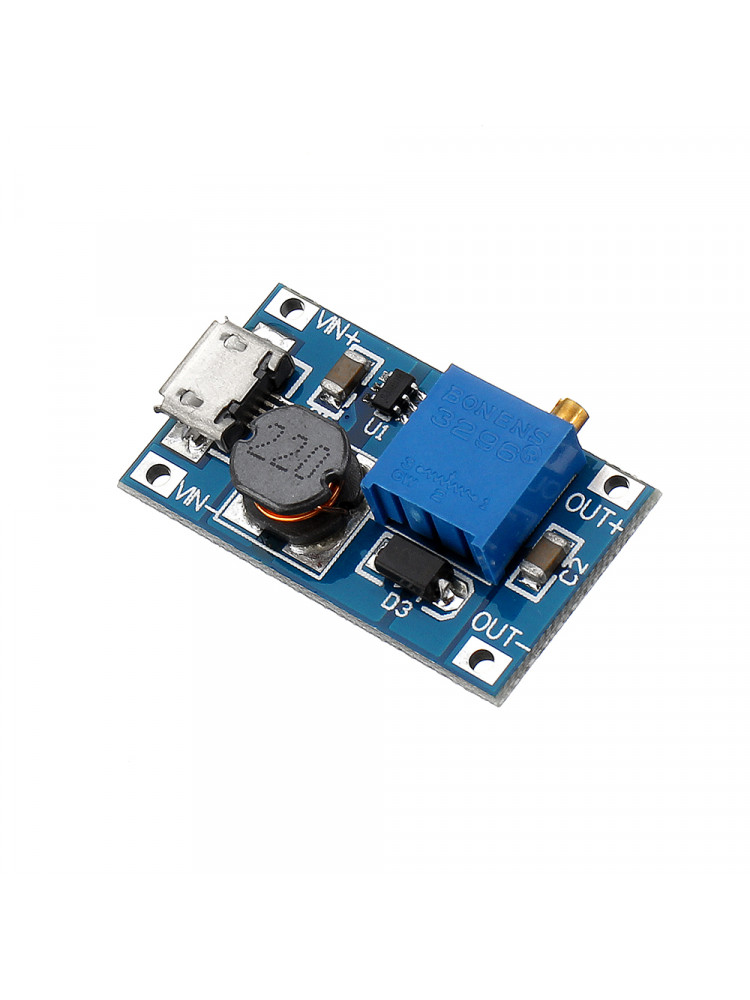

MT3608 DC-DC 2A Boost Module 2V - 24V with Micro USB

Overview:

The DC-DC Step-up module can take an Input of 2-24V with Output of 5-28V. Features a Micro-USB Input.

Features/Operating Instructions:

• Turn clockwise to boost Voltage, counter clockwise to reduce voltage.
• The module supports MicroUSB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V
• Wide input and output voltage, high conversion efficiency.
• Maximum output current: 2A (recommended for use within 1A)
• Input voltage: 2 v ~ 24 v
• Maximum output voltage:> 28 v (recommended for use within 26V)
• Efficiency:> 93%
• Size: 30mm * 17mm * 14mm (L * W * H)
• This module is a step-up module, the output voltage is greater than the input voltage.
• Peak current output current does not exceed 2A.
• MT3608 1.2MHz boost converter IC
• N.B If you experience that the output voltage cannot be adjusted, turn the potentiometer counter clockwise at least 10 times

Package includes:

• 1 X DC-DC 2A Boost Module 2V - 24V with Micro USB
