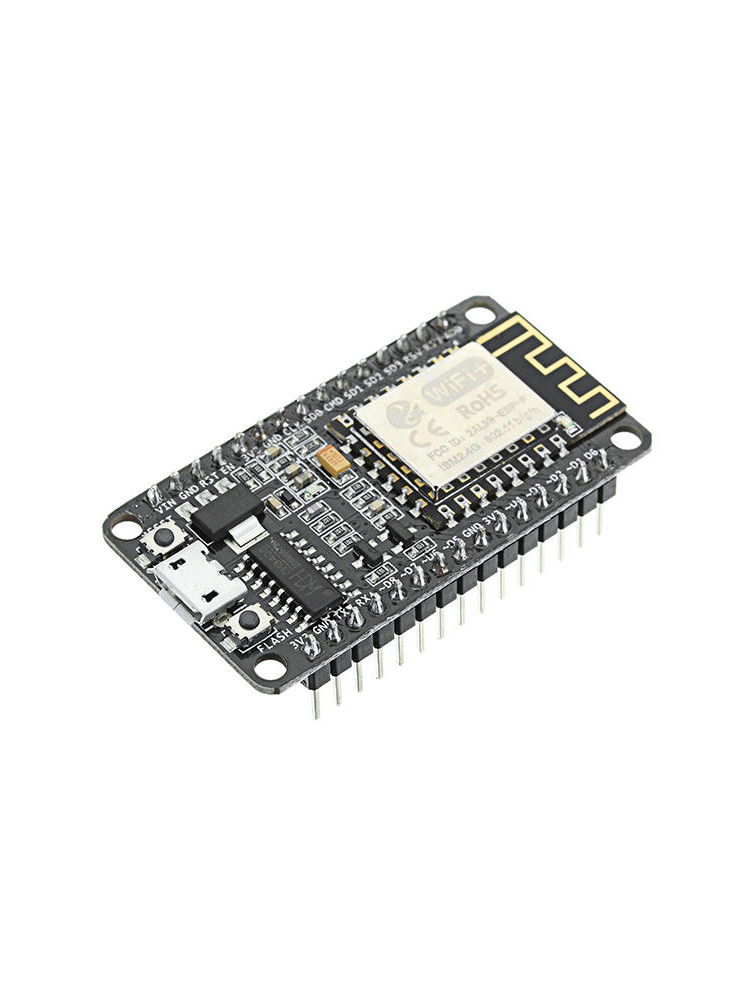

ESP8266 CH340G NodeMcu V3 Lua WiFi Development Board

R 120.00

ESP8266 CH340G NodeMcu V3 Lua WIFI Development Board is the perfect development tool for prototyping IoT products. It comes with a builtin micro USB and LED. Plug in your 5v USB and get going.

Quantity

Stock Available
31 Items

Overview:

WINDOWS driver USB to serial CH341 / CH340 installation package. Support WINDOWS 98 / ME / 2000 / XP / Server 2003 / VISTA / Server 2008 / Win7 / Win8 / Win8.1 32 Bit / 64 and MAC through Micro soft's digital signature authentication. In the computer end of the USB device emulation as a standard serial devices Serial COM. It contains the serial number and identification CH34X monitoring CH34X equipment swap library.
Driver: http://en.doit.am/CH341SER.zip

Features:

• Wireless 802.11 b / g / n standard
• Support STA / AP / STA + AP three operating modes
• Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
• D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
• AD0: 1 channel ADC
• Power input: 4.5V ~ 9V (10VMAX), USB-powered
• Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200ua br="">• Transfer rate: 110-460800bps
• Support UART / GPIO data communication interface
• Remote firmware upgrade (OTA)
• Support Smart Link Smart Networking
• Working temperature: -40 ℃ ~ + 125 ℃
• Drive Type: Dual high-power H-bridge driver

Package includes:

• 1 x NodeMcu Lua ESP-12F WIFI Development Board

AD-CH340G
