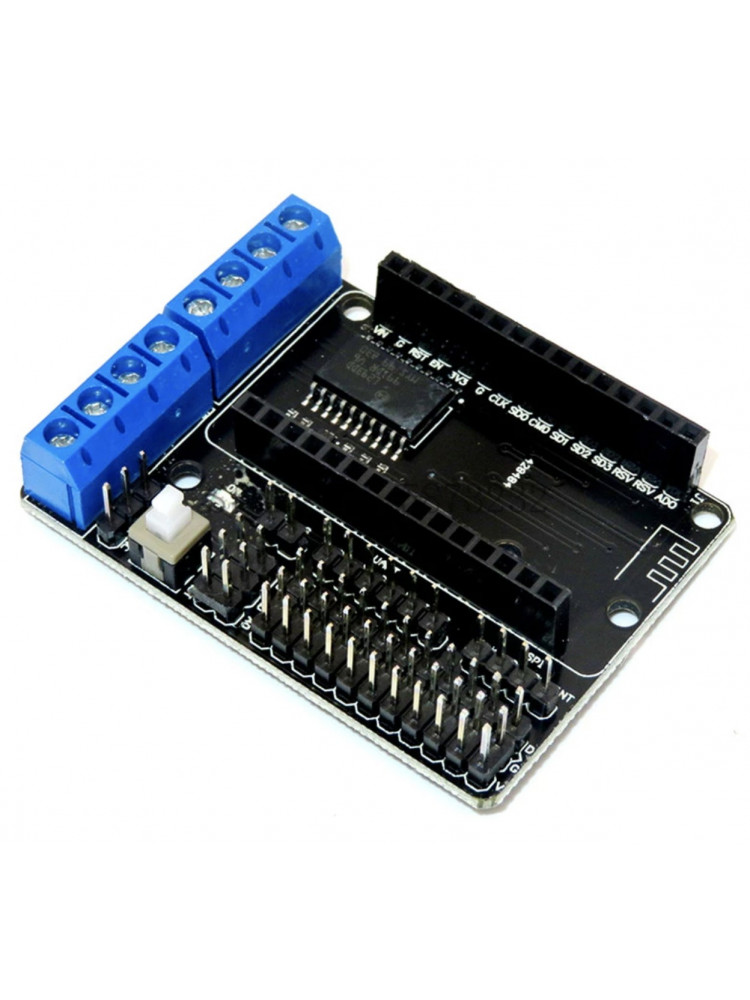

L293D Motor Driver Expansion Board for ESP8266

Overview:

The L293D Motor Driver Board allows for easy connectivity and expansion of the ESP8266.

Features:

• All-function pins: SPI, UART, GPIO, AI and 3.3V power connector
• Onboard power switch
• Drive Two DC Motor Channels or one Stepper Motor Channel

Specification:

• Motor power range (VM): 4.5V ~ 36V
• Control power range (VIN): 4.5V ~ 9V
• Controller Current (Iss): ≤60mA (Vi=L), ≤(Vi=H)
• Motor working current (Io): ≤1.2A
• Max power dissipation: 4W(T=90℃)
• Control signal input voltage - 2.3V≤VIH≤VIN (high); -0.3V≤VIL≤1.5V (low)
• Working temperature: -25℃ ~ +125℃
• Motor Drive: Dual high power H bridge
• L293D chip

Package includes:

• 1 x L293d Motor Driver expansion Board for ESP8266
