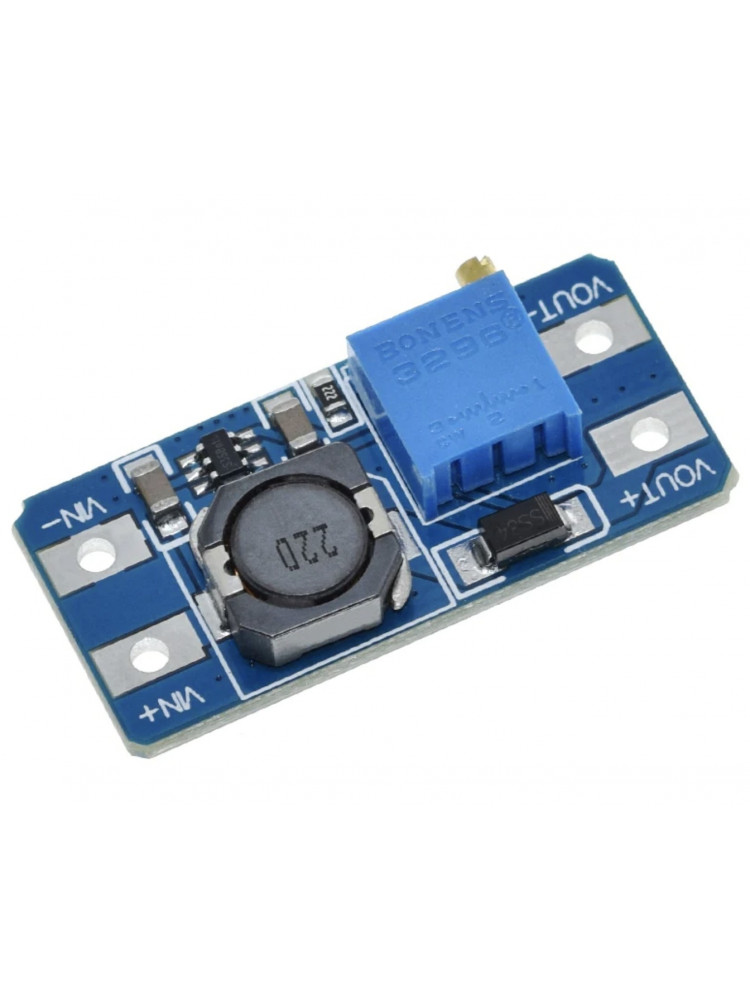

MT3608 DC-DC 2A Boost Module 2V - 24V

Overview:

MT3608 is a step-up DC-DC voltage regulator IC designed to provide a fixed voltage output from a lower voltage input. It is commonly used in applications where a higher voltage level is required, such as in battery-powered devices or LED driver circuits. The MT3608 is highly efficient and can operate with input voltages as low as 2V, making it suitable for a wide range of applications.

Features:

• Wide input voltage range: 2V to 24V
• Fixed output voltage: 5V or adjustable from 1.2V to 24V
• Maximum output current: 2A
• Highly efficient: up to 93%
• Over-temperature and short-circuit protection
• Low quiescent current: < 1μA

Specification:

• Input Voltage Range: 2V to 24V
• Output Voltage Range: 5V to 24V
• Maximum Output Current: 2A
• Efficiency: up to 93%
• Quiescent Current: < 1μA
• Operating Temperature Range: -40°C to 85°C
• Output Ripple: 100mV
• Load Regulation: +/-0.5%
• Size: 37 x 17 x 14mm

User Instructions:

• Connect the input voltage to the VIN pin and the ground to the GND pin.
• Connect the load to the VOUT pin and the ground to the GND pin.
• Set the output voltage by adjusting the potentiometer
• Apply power and measure the output voltage.

Package includes:

• MT3608 DC-DC 2A Boost Module 2V - 24V
