M5Stack FIRE IoT Development Kit (PSRAM) V2.6

R 1,100.00

M5Stack FIRE It' a cost-effective Wi-Fi IoT controller adopts Espressif ESP32 main control chip, equipped with two low-power Xtensa¬Æ 32-bit LX6 microprocessors, with main frequency up to 240MHz. With 8M PSRAM + 16M FLASH memory, 2.0-inch full-colour HD IPS display panel, IMU, LED, microphone, speaker, TFCard slot and other peripherals. The full-coverage case ensures circuit stability even in complex industrial applications.

Quantity

Stock Available
2 Items

Overview:

M5Stack FIRE It' a cost-effective Wi-Fi IoT controller adopts Espressif ESP32 main control chip, equipped with two low-power Xtensa® 32-bit LX6 microprocessors, with main frequency up to 240MHz. With 8M PSRAM + 16M FLASH memory, 2.0-inch full-colour HD IPS display panel, IMU, LED, microphone, speaker, TFCard slot and other peripherals. The full-coverage case ensures circuit stability even in complex industrial applications. The internal offers a wide range of common interface resources (ADC/DAC/I2C/UART/SPI, etc.) which is highly expandable. This functional and powerful IoT controller is very applicable to various product prototyping, industrial control and smart building applications.

Features:

• High productization - Exquisite designs, Prototyping right into products. Product-grade full-coverage cover for more stable circuit operation
• Low code development - Support UIFlow graphical programming platform, scripting-free, cloud push. Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms. Support FreeRTOS, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.
• High integration - 2.0-inch IPS display panel, 6-axis IMU, programmable RGB lights x10, microphone, speaker, custom buttons x3. Built-in Li-ion power, integrated power management chip, supports TypeC and POGO PIN. finely tuned RF circuit for stable and reliable wireless communication.
• Strong expandability - GROVE expansion ports x3 (I2C, GPIO, UART). Easy access to M5Stack software and hardware system, stackable module design, plug-and-play sensor expansion
• Based on ESP32 development
• 8M PSRAM + 16M FLASH memory combination
• Integrated HD IPS display panel with various hardware peripherals
• Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.
• Adopt M5GO BOTTOM base compatible with 8mm size Building blocks, the structure is full of fun to build.
• Microsoft Azure authentication device
Compatible with multi-platform development:
• UIFlow
• MicroPython
• Arduino
• .NET nanoFramework

Applications

• IoT Controller
• DIY creator works
• Smart Home Control

Resources:

• Detailed description and specification

Tutorials:

• UIFlow
• Arduino IDE
• Micropython

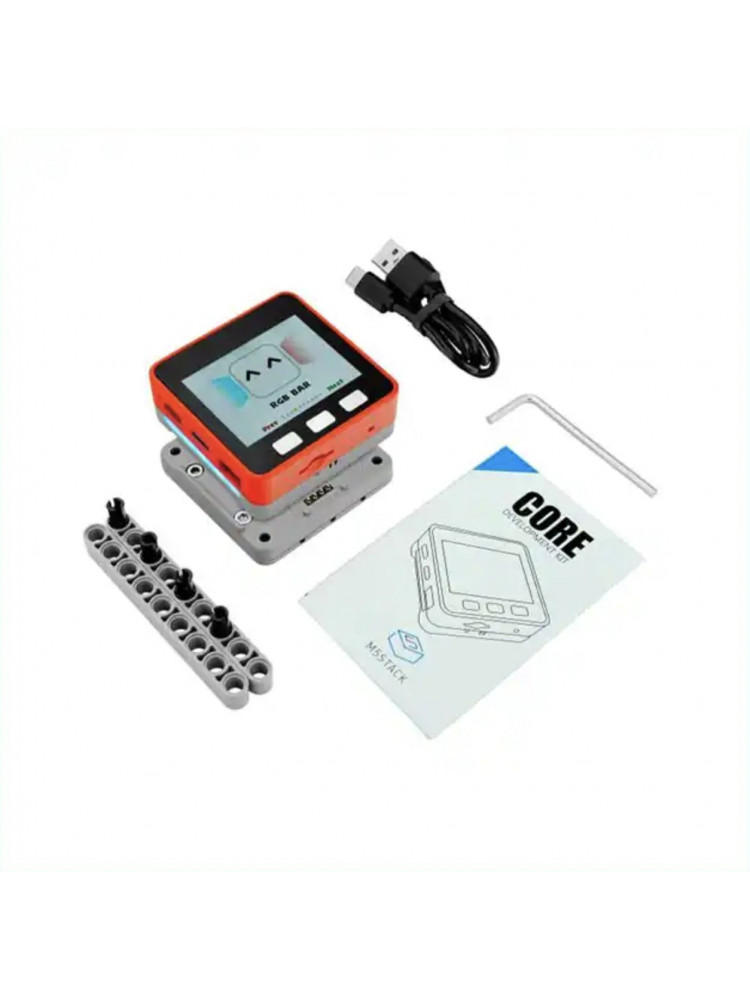

Package includes:

• 1 x M5Stack FIRE
• 1 x M5GO Charging Base
• 2 x Building Blocks
• 5 x Building Block Connections
• 1 x M3 Hex Wrench
• 1 x Type-C USB (50cm)
• 1 x User's Manual

M5-Fire-IOT-PSRAM-K007-V26
2 Items

Specific References
