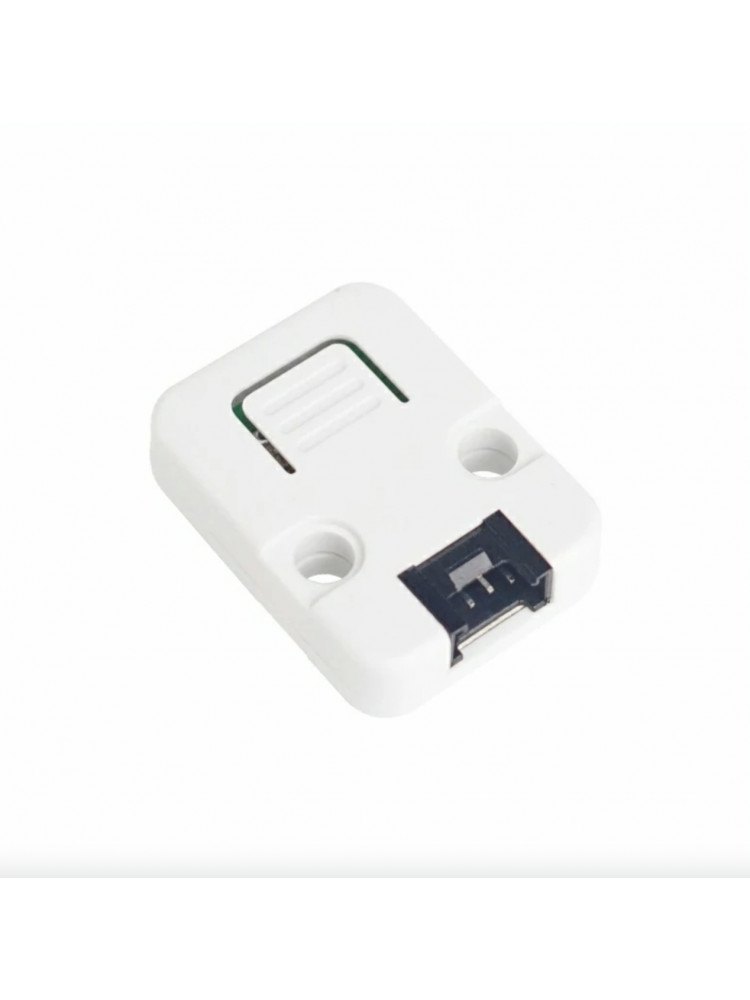

Mini Button Unit

Overview:

BUTTON is a single button Unit. The button status can be detected by the input pin by simply capturing the high/low electrical level. If the button is pressed, the signal level will be high if the button is released, the signal level will be low.

This unit communicates with M5Core through GROVE B port.

Features:

• GROVE interface, support UIFlow and Arduino
• Two Lego installation holes

Applications:

• Lamp holder switch
• Remote control switch

Resources:

• Detailed description and specification

Tutorials:

• DIY Camera with Thermal Printer
• Arduino example
• UIFlow example

Package includes:

• 1x BUTTON Unit
• 1x Grove Cable
