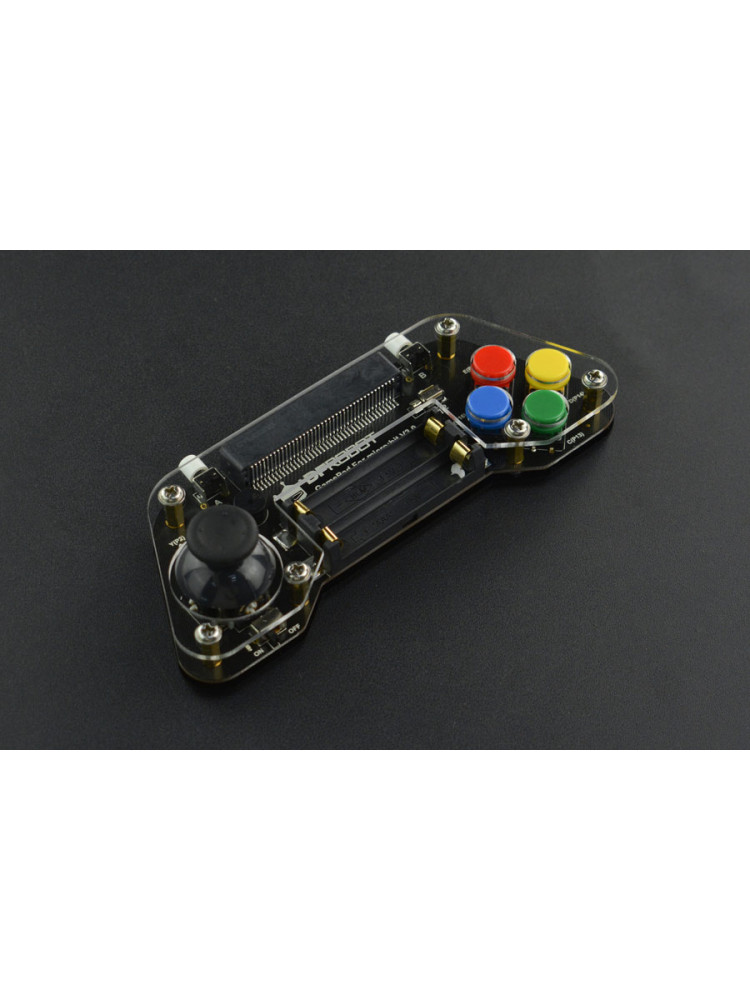

micro:Gamepad for micro:bit

Overview:

GamePad for micro:bit V3.0 is a micro:bit gamepad with a joystick. It adopts a high-precision three-axis analog amount joystick. The combination of joystick and gamepad allows you to control Maqueen's direction and speed at the same time. Moreover, there are 7 programmable buttons, which means you can explore more interesting functions and more flexible controls.
In the latest V3.0 product, the battery box is on the onboard PCB, which is more convenient to use.

Features:

• two axes(X-Y) programmable analog joystick, which can control the direction and speed of the maqueen at the same time.
• Up to 7 programmable keys, flexible and convenient
• Onboard buzzer, vibrating motor, LED output equipment
• Acrylic protection up and down, safe to use and comfortable to handle

Specification:

• Power: 3V DC (2 x AAA batteries)
• Onboard LED and vibration motor: P12
• Onboard buzzer: P0
• Keys: A(A), B(B), C(P13), D(P14), E(P15), F(P16), Z(P8)
• Dimension: 5.83 x 2.24inch / 148 x 57 mm

Package includes:

• 1 x Gamepad for micro:bit

Download Center:

• Product Wiki for GamePad V3.0
