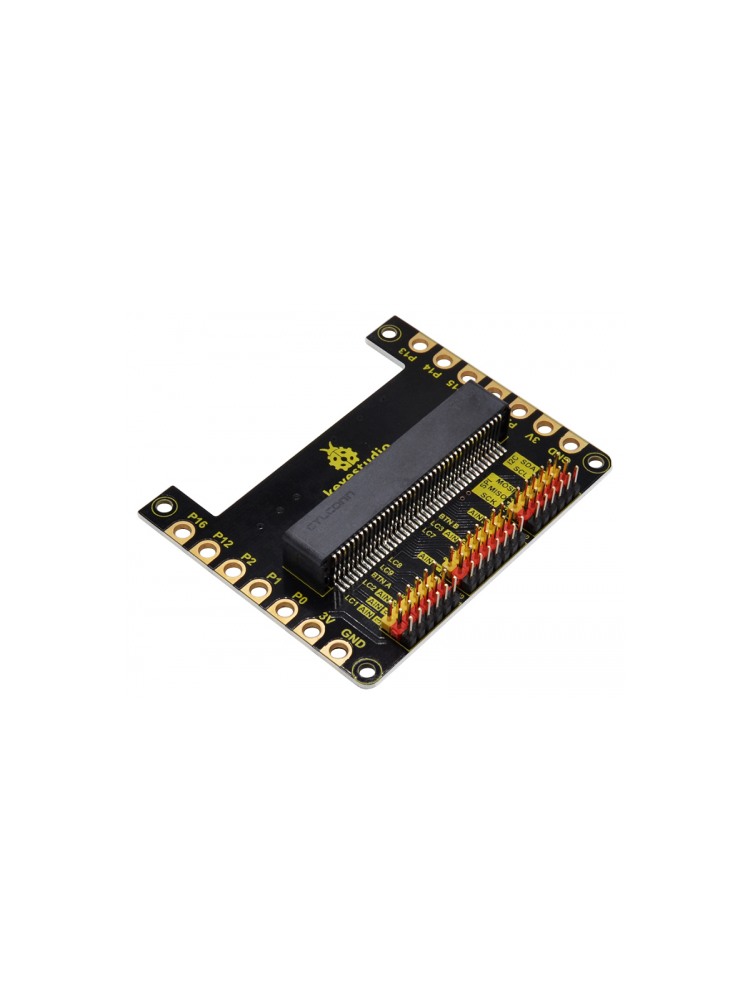

micro:bit 3V Sensor Shield Board

R 190.00

Connect sensor modules to the micro:bit main board using the 3v sensor shield for micro:bit. To make connection more direct, the sensor shield has brought out all the IO pins on the edge of micro:bit main board to 3Pin interface.

Note: The BBC micro:bit board is NOT included. This unit is NOT manufactured or supplied by the BBC micro:bit but compatible with the BBC micro:bit

Quantity

Stock Available
2 Items

Overview:

Connect sensor modules to the micro:bit main board using the 3v sensor shield for micro:bit. To make connection more direct, the sensor shield has brought out all the IO pins on the edge of micro:bit main board to 3Pin interface. These provide an easy way of connecting circuits using jumper wires. Label G means GND; V is VCC (3.0-3V); S is Signal pin; corresponds to IO pins of micro:bit main board. You can connect the golden rings on the sensor shield to other sensors or modules using Alligator clip line. Or connect the sensors/modules to the pin headers on the sensor shield using jumper wires.

There are 3 kinds of power supply methods for the sensor shield and micro:bit main board.

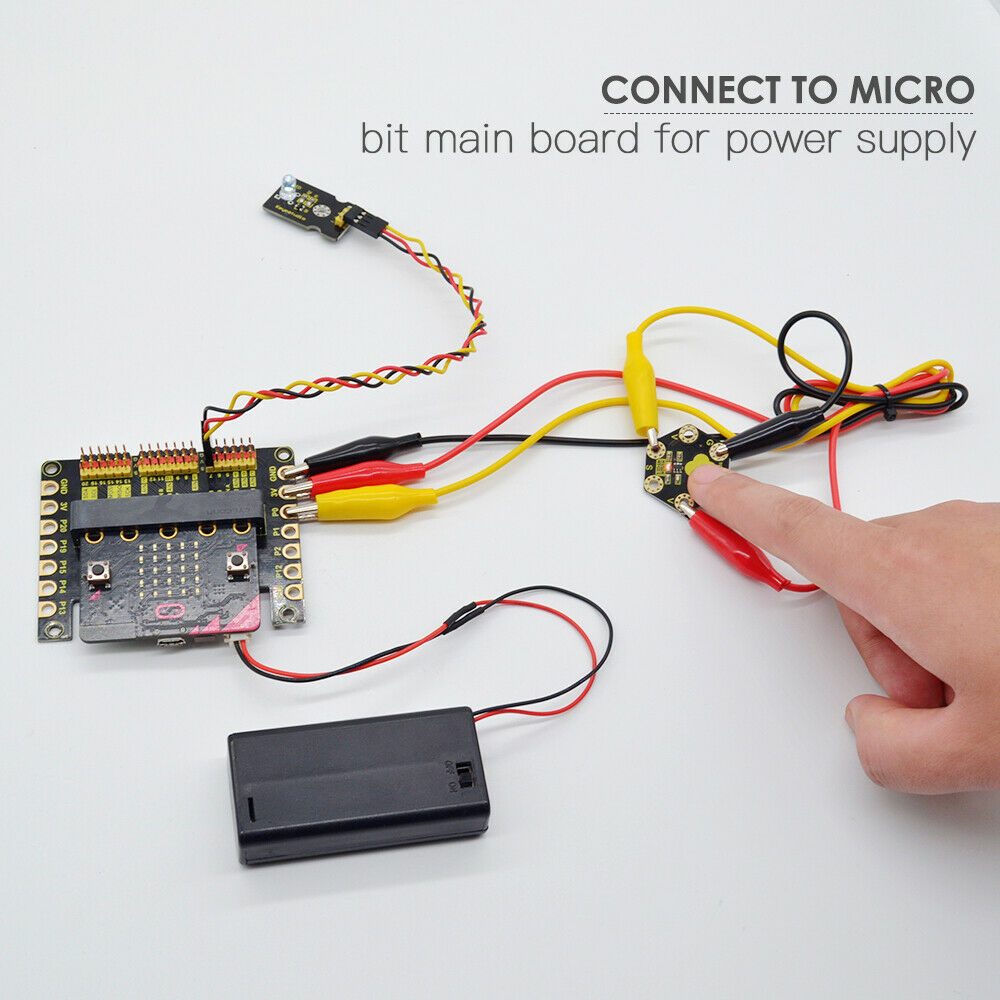

1) Direct connect the battery case to micro:bit main board for power supply;
2) Connect the golden rings 3V GND with alligator clip lines for power supply;
3) Connect random group of V G pin headers with jumper wire for power supply. The sensor shield comes with 4 fixed holes at the edge, easy to mount on any other devices.

Specification

• Operating voltage: DC3.0-3.3V
• Pin Pitch: 2.54mm
• Dimensions: 76mm*63mm*12mm
• Weight:22.8g

Resources

https://wiki.keyestudio.com/KS0432_keyestudio_3V_Sensor_Shield_For_BBC_micro:bit

Micro-3V-Sen-Shld
