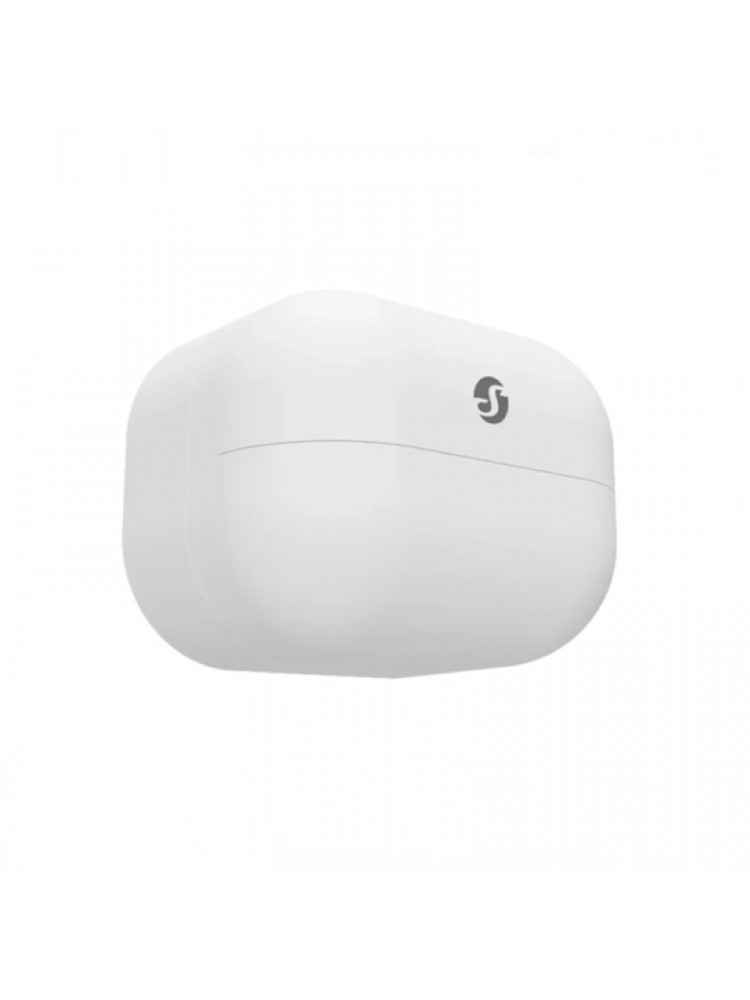

Shelly BLU Motion

Overview:

Shelly BLU Motion is a smart Bluetooth motion detection sensor featuring a lux meter with instant responsiveness and long-lasting battery life. Swift alerts will keep you informed of any motion in real time, while its durable battery ensures long-term peace of mind. N.B. To use this device with the Shelly Smart Control app, a gateway is necessary. Compatible gateways are Shelly BLU Gateway, or any Shelly Plus, Pro or Gen3 device (excluding sensors)

Features:

• Battery: CR2477 3V
• Battery life - up to 5 years
• Adhesive wall sticker included
• LUX sensor for actions based on room brightness
• Adjustable sensitivity to suit your needs
• Encryption
• Beacon mode
• Can be integrated into automation scenarios and scenes with other devices

Modes of Operation:

• Regular mode - the Device broadcasts the motion detection status, illuminance, and battery status each time the motion-detection status changes (motion is detected or no motion is detected during the blind time). You can adjust the blind time from the Device settings in the Shelly Smart Control application. For more details, visit the Shelly Smart Control guide.
• Beacon mode - the Device broadcasts the motion detection status, illuminance, and battery status every 30 seconds. You can enable the Beacon mode from the Device settings in the Shelly Smart Control application. For more details, visit the Shelly Smart Control guide.
N.B. The battery life may be significantly reduced when the Device is in Beacon mode.

User Interface:

• One push button (behind the back cover)
• Press and hold for 10 sec to pair Shelly BLU Motion with another Bluetooth device.
• Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).
• Double-press to set the Device in test mode. For a minute, the Device will broadcast every motion detection, indicating it by a red flash.

Specification:

Physical:

• Size (HxWxD): 32x42x27 ±0.5 mm
• Weight: 26 ±1 g
• Mounting: 2 way tape
• Shell material: Plastic
• Colour: White

Environmental:

• Ambient temperature: -20 °C to 40 °C
• Humidity: 30 % to 70 % RH

Electrical:

• Power supply voltage AC: 1 x 3v CR2477 Battery (included)
• Battery LIde: Up to 5 years

Sensors:

• PIR: Yes
• Light Sensor: Yes

Radio:

• RF band: 2400 - 2483.5 MHz
• Max. RF power: < 4 dbm
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU:

• CPU: EFR32BG22C222F352GM32

Firmware Capabilities:

• Encryption: AES encryption (CCM mode)
• Beacon mode: Yes

Resources:

• Components and APIs - This device
• Components and APIs - All Shelly devices and services
• Compliance
• Installation guide
• Battery material safety data sheet

Package includes:

• 1 X Shelly Blu Motion
