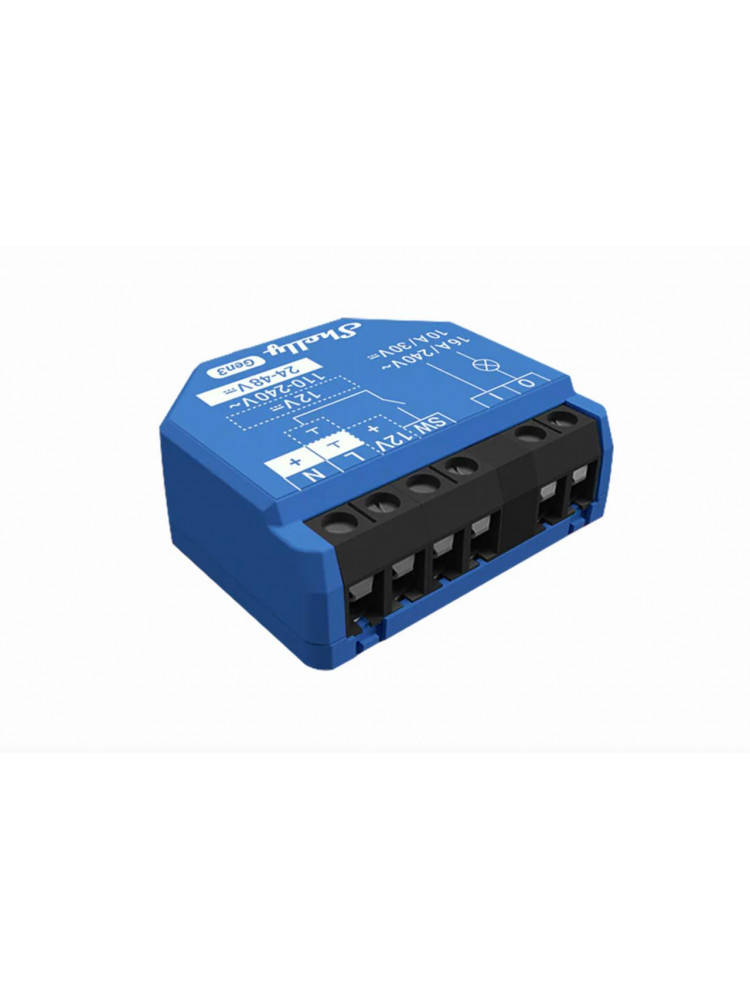

Shelly 1 Gen3 Wi-Fi-operated Smart Switch

Overview:

Shelly 1 Gen3 is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device also has improved processor and increased memory compared to its predecessor.
Shelly 1 Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.
Shelly 1 Gen3 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Features:

• Wi-Fi Connectivity: The device can connect to your home Wi-Fi network, allowing you to remotely monitor humidity and temperature data through a smartphone app or other compatible devices.
• Integration with Smart Home Platforms: You can integrate the Shelly 1 Gen3 with popular smart home platforms, including Google, Alexa, and Samsung SmartThings. This enables voice control and automation capabilities through these platforms.
• Local and Cloud Control: Can function independently in a local Wi-Fi network and can also be operated through cloud home automation services.
• Bluetooth Connectivity: Bluetooth and BLE gateway are available for inclusion purposes, which may be useful during the setup process.
• User-Friendly Interface: The device provides a user-friendly interface with a reset button for manual interactions.
• Improved Processor and Memory: Upgraded with an improved processor and increased memory for enhanced performance.
• Embedded Web Interface: Features an embedded web interface for monitoring, control, and adjustment of settings.
• Wireless Connectivity: The device supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 protocols with specified indoor and outdoor range capabilities.
• Dry Contact: Allows switching on and off of lower voltage devices.
• BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.
• Wi-Fi Range extender for IoT devices: A Wi-Fi extender is employed to expand the reach of your Wi-Fi network by receiving your current Wi-Fi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.
• Scripting: https://shelly-api-docs.shelly.cloud/gen2/Scripts/ShellyScriptLanguageFeatures/
• Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP
• Schedules: Allows scheduling of complex operations to be executed in predefined time window. Users can specify time windows based on date, time of day, weekdays, hours, minutes and seconds.
• Virtual Components: https://shelly-api-docs.shelly.cloud/gen2/DynamicComponents/Virtual/

Main Applications:

• Residential
• MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
• Government/municipal
• University/college

Use Cases:

• Remote Appliance Control: Turn on or off electric appliances remotely using your mobile phone, tablet, PC, or home automation system.
• Internet-Connected Convenience: Access аnd control devices from anywhere with internet connectivity, as long as the Shelly 1 Gen3 is connected to a Wi-Fi router.
• Home Automation: Shelly 1 Gen3 enables automatic control of power appliances for more relaxing and enjoyable experience.

Device electrical interfaces:

Inputs
• 1 switch/button input on screw terminal
• 1 potential-free contacts relay input on screw terminal
• 2 power supply inputs on screw terminals: N and L

Outputs
• 1 potential-free contacts relay output on screw terminal

Connectivity
• Wi-Fi
• Bluetooth

Safety function
• Overheating protection

Supported load types
• Resistive (incandescent bulbs, heating appliances)
• Capacitive (capacitor banks, electronic equipment, motor starting capacitors)
• Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners, washing machines, tumble dryers)

User interfaces:

Inputs
• One (Control) button
• Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
• Press and hold for 10 seconds to factory reset the Device.

Outputs
• LED (monocolor) indication
• AP (Access Point) enabled and Wi-Fi disabled: 1 second ON / 1 second OFF
• Wi-Fi enabled, but not connected to a Wi-Fi network: 1 second ON / 3 seconds OFF
• Connected to a Wi-Fi network: Constantly ON
• Cloud is enabled, but not connected: 1 second ON /5 seconds OFF
• Connected to Shelly Cloud: Constantly ON
• OTA (Over the Air Update): ½ sec ON / ½ second OFF
• Button pressed and held for 5 seconds: ½ second ON / ½ second OFF
• Button presses and held for 10 seconds: ¼ second ON / ¼ second OFF

Simplified internal schematics

Wiring Diagram

24-48 V⎓ power supply

110-240 AC V~ power supply

12 V⎓ power supply

Specification:

Physical:

• Size (HxWxD): Button: 37x42x16 mm
• Weight: 26g
• Mounting: Wall console
• Screw Terminals Max Torque: 0.4Nm
• Conductor Cross Section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded and bootlace ferrules)
• Conductor Striped length: 6 to 7 mm
• Shell material: Plastic
• Colour: Blue
• Terminal Colour: Blue

Environmental:

• Ambient temperature: -20 °C to 40 °C
• Humidity: 30 % to 70 % RH
• Max. Altitude: 2000m

Electrical:

• Power supply voltage AC: 110 - 240 v, DC: 24-48 v, DC: 12v
• Neutral not needed: No
• Power Consumption: < 1.2W
• External protection:: Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)

Output circuits ratings:

• Max switching voltage AC: 240 V / 16A
• Max switching voltage DC: 30 V / 10A

Sensors, meters:

• Internal-temperature sensor: Yes

Radio:

• Wi-Fi
• RF band: 2401 - 2483 MHz
• Max. RF power: < 20 dbm
• Wi-Fi Protocol: 802.11 b/g/n
• Wi-Fi Range: upto 30m indoors adnd 50m outdoors (Depends on local conditions)
• Bluetooth
• Bluetooth Protocol: 4.2 with BLE
• RF band: 2400 - 2483.5 MHz
• Max RF Power: < 4 dbm
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU:

• CPU: ESP-Shelly-C68F
• Flash: 8 MB

Firmware Capabilities:

• Webhooks (URL actions): 20 with 5 URLs per hook
• Schedules: 20
• Scripting: Yes
• MQTT: Yes

Resources:

• Components and APIs - This device
• Components and APIs - All Shelly devices and services
• Compliance
• Installation guide

Package includes:

• 1 X Shelly 1 Gen3
