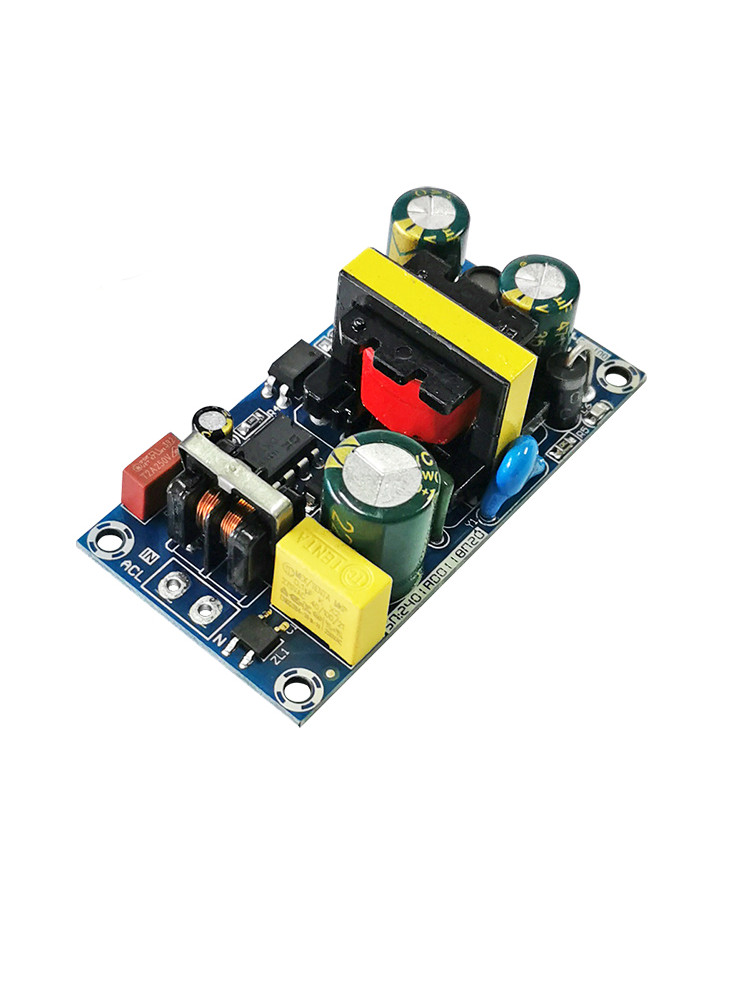

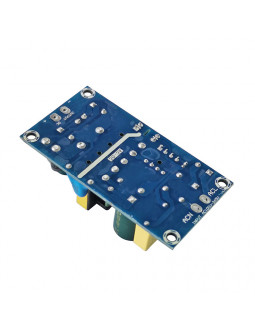

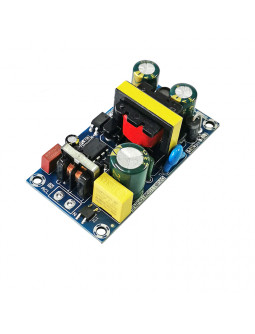

220v to 12V 2A Step Down Buck Module

Overview:

The 220v to 12V 2A Step Down Buck Module switches power from AC to DC. The module also provides high voltage circuit protection.

Features:

• Easy installation, input and output can be soldered with 5.08 terminal or pin
• Fixed mounting holes in the four corners. Fixed hole diameter is 3.0MM
• Universal input voltage: AC 110V ~ 265V
• High efficiency, strong design density, small size, easy to install, and extremely low output ripple
• High isolation between input and output
• Overload protection, short circuit protection and temperature protection are available.

Specification:

• Voltage input: AC 100 ~ 265V
• Frequency input: 50HZ~ 60HZ
• Output voltage: DC12V
• Output current: rated 2A / peak 4A protection
• Output power: 24W
