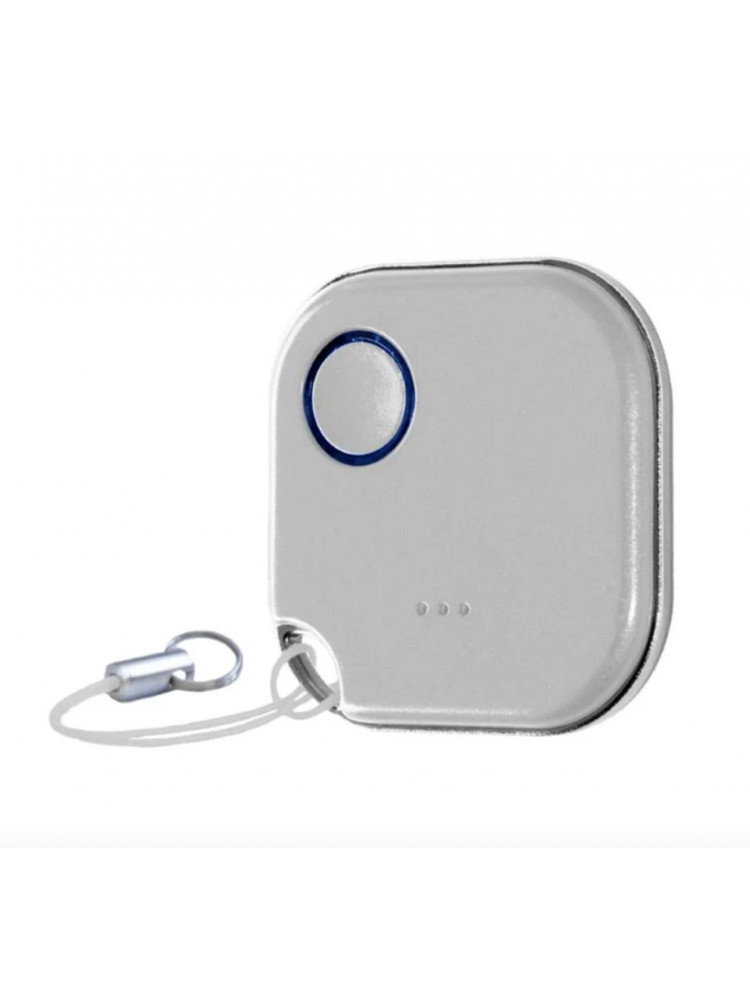

Shelly Blu Button 1 White

Overview:

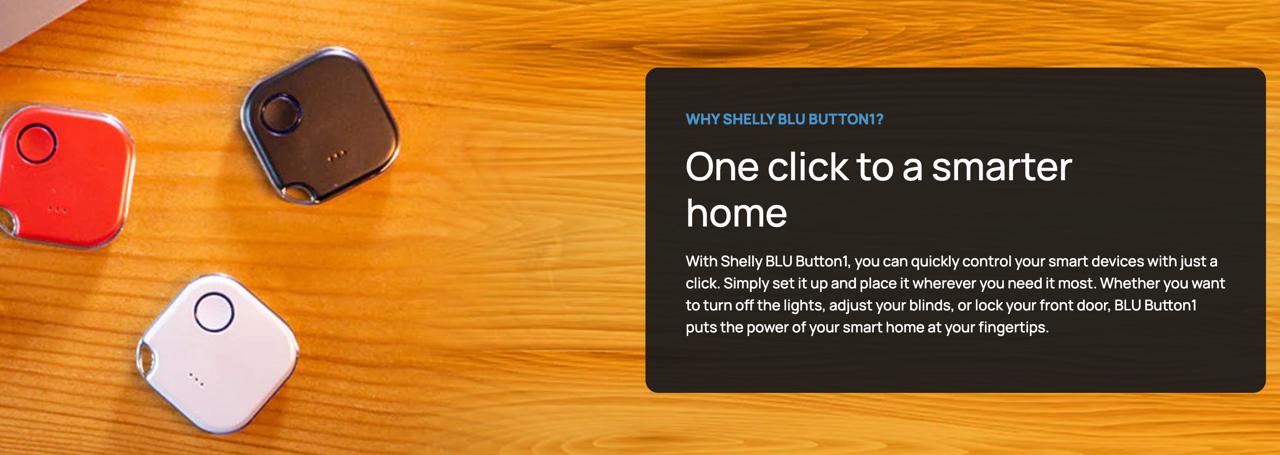

With Shelly BLU Button1, you can quickly control your smart devices with just a click. Simply set it up and place it wherever you need it most. Whether you want to turn off the lights, adjust your blinds, or lock your front door, BLU Button1 puts the power of your smart home at your fingertips.

Features:

• Scripting functionality for endless actions based on location
• Full compatibility with Home Assistant and any other device which is supported by BTHome protocol
• Uses BLE technology
• Able to turn on/off appliances, dim, and activate scenes
• Encryption
• Has sound and light alert; "Hush" mode for no sounds
• "Find me" function activated by beacon mode
• Range of 10m indoors and 30m outdoors
• Works with Plus, Pro and Gen3 devices

Specification:

Physical:

• Size (HxWxD): 36x36x6 mm
• Weight: 9g
• Shell material: Plastic
• Colour: Black, White, Red, Blue

Environmental:

• Ambient temperature: -20 °C to 40 °C
• Humidity: 30 % to 70 % RH

Electrical:

• Power supply voltage: 1 x 3v CR2032 Battery (included)
• Battery Life: Up to 2 years

Main Applications:

• Residential
• MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
• Government/municipal
• University/college

User Interface:

• Inputs
   • One push button
   • Press shortly once, twice, or three times, or press and hold for about 2 sec to emit a signal
   • Press and hold for 10 sec to pair ShellyBLU Button1 with another Bluetooth device.
   • Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).

• Outputs
   • Red LED indication
   • Buzzer

Radio:

• RF band: 2400 - 2483.5 MHz
• Max. RF power: < 4 dbm
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU:

• CPU: EFR32BG22
• Flash: 32KB RAM

Firmware Capabilities:

• Encryption: AES encryption (CCM mode)
• Beacon Mode: Yes
• Multi-Click Support: Upto 4 possible actions

Resources:

• Components and APIs - This device
• Components and APIs - All Shelly devices and services
• Compliance
• Installation guide
• Battery material safety data sheet

Package includes:

• 1 X Shelly Blu Button 1 White
