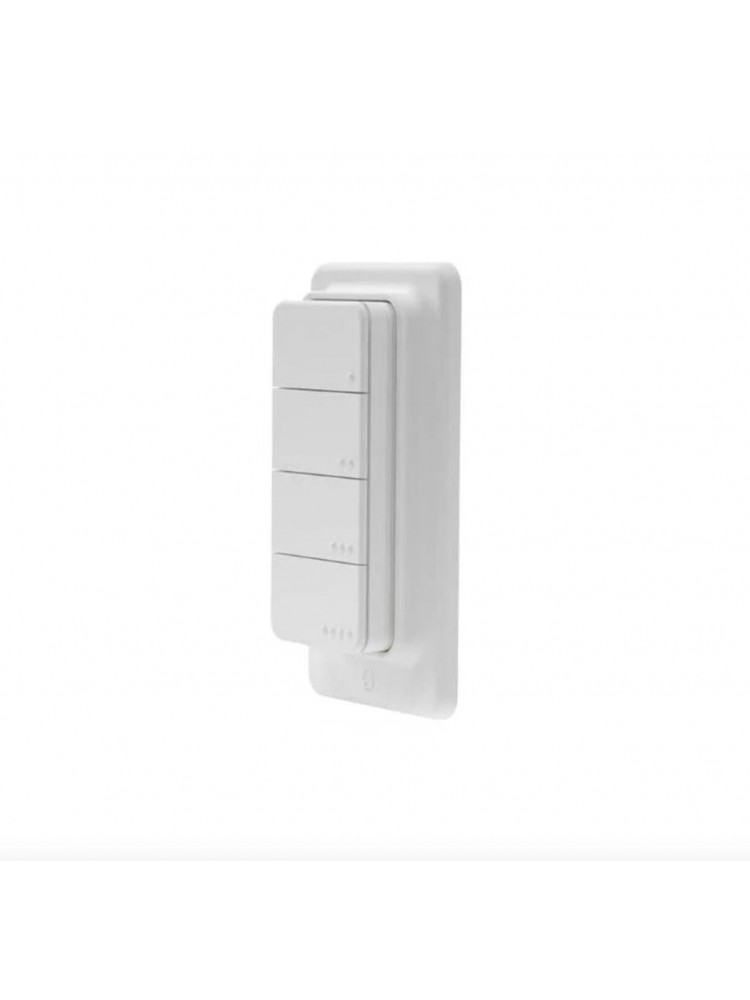

Shelly Blu RC Button 4

Overview:

Capable of managing many smart home devices and scenarios, this smart RC button simplifies your daily routines. You can keep it in your pocket for easy access, stick it on a metal surface like your refrigerator, mount it to the wall using the included 3M patch, or even attach it to your existing wall switch. Adaptable to your needs, Shelly BLU RC Button 4 ensures control is always within reach, allowing you to manage your lights, garage doors, appliances, blinds, or custom scenes with 16 simple click combinations.

Features:

• Uses BLE technology (Bluetooth-operated)
• Supports multi-click - single, double, triple, and long press (16 actions in total)
• 2 years of battery life
• Encryption (high level of security)
• Variety of placement options (3M patch included in the box)
• Beacon mode - If enabled, the device will emit beacons every 8 seconds.
• Full compatibility with Home Assistant and any other device that is supported by BTHome protocol (out of the box)

Use cases:

• Lighting control: Assign the button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.
• Garage door opener: Use the strong encryption of Shelly BLU Wall Switch 4 and control your smart garage door opener as you approach or leave your garage.
• Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.
• Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the Device for presence control, for example to keep lights on while you need to spend some time in a certain area.
• Scene control: Use the 4 buttons to activate any scene or specific actions you can imagine. Each button supports single, double, triple and long push - which allows the user to make 16 different actions!

User interface:

• Inputs
   • Four push buttons
   • Press and hold for 10 sec to pair Shelly BLU RC Button 4 US with another Bluetooth device.
   • Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).
• Outputs
   • LED indication
   • Blue light flashing when the Device is in pairing mode.
   • Red light flashing when a button is pressed. The number of flashes corresponds to the number of the button presses.

Specification:

Physical:

• Size (HxWxD): Button: 65x30x13 mm; Magnetic holder for wall: 105x44x13 mm; Magnetic holder for flat surfaces: 83x44x9mm
• Weight: 21g
• Shell material: Plastic
• Colour: White

Environmental:

• Ambient temperature: -20 °C to 40 °C
• Humidity: 30 % to 70 % RH

Electrical:

• Power supply voltage: 1 x 3v CR2032 Battery (included)
• Battery Life: Up to 2 years

Radio:

• RF band: 2400 - 2483.5 MHz
• Max. RF power: < 4 dbm
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Firmware Capabilities:

• Encryption: AES encryption (CCM mode)

Resources:

• Components and APIs - This device
• Components and APIs - All Shelly devices and services
• Installation guide
• Battery material safety data sheet

Package includes:

• 1 X Shelly Blu RC Button 4
