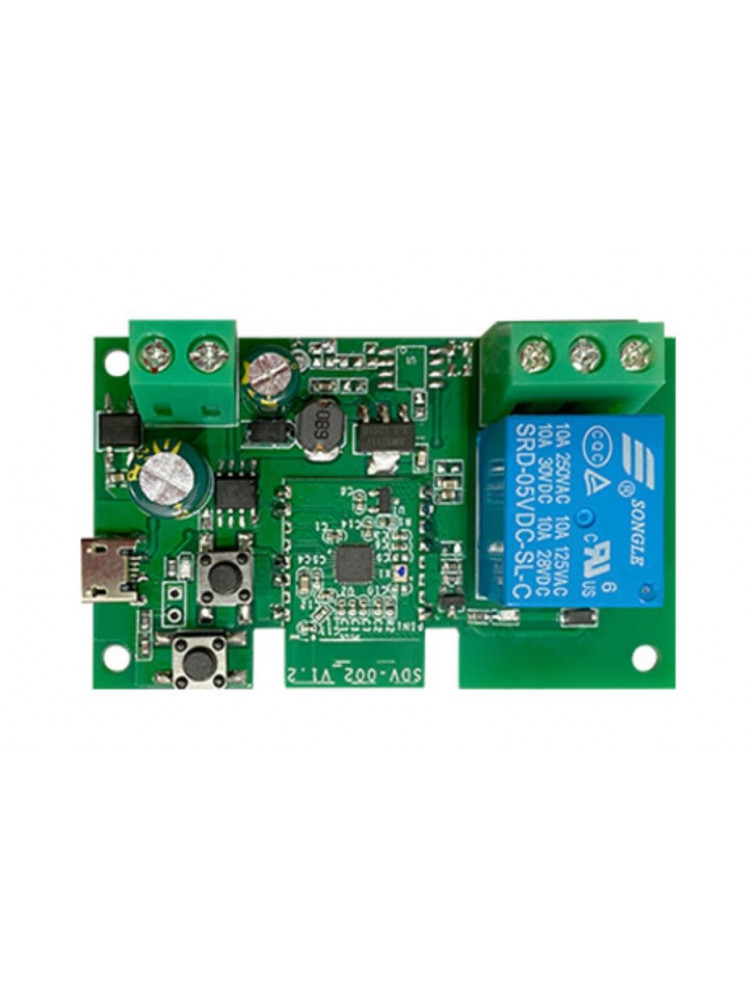

Ewelink Gate / Garage Wifi Smart Switch

Overview:

The Gate/ Garage switch enables remote control of connected appliances via the eWeLink mobile application, available on both Android and iOS. It bridges traditional devices (like a garage motor that uses a simple pulse from a remote) into a smart home system, allowing operation from anywhere with an internet connection. The device supports both DC 5V (via the micro-USB port) and a wider range of DC 7-32V power inputs through screw terminal

Features:

• Remote Control: Turn devices on/off from anywhere using the eWeLink app.
• Voice Control: Works with popular voice assistants such as Amazon Alexa and Google Home for hands-free operation.

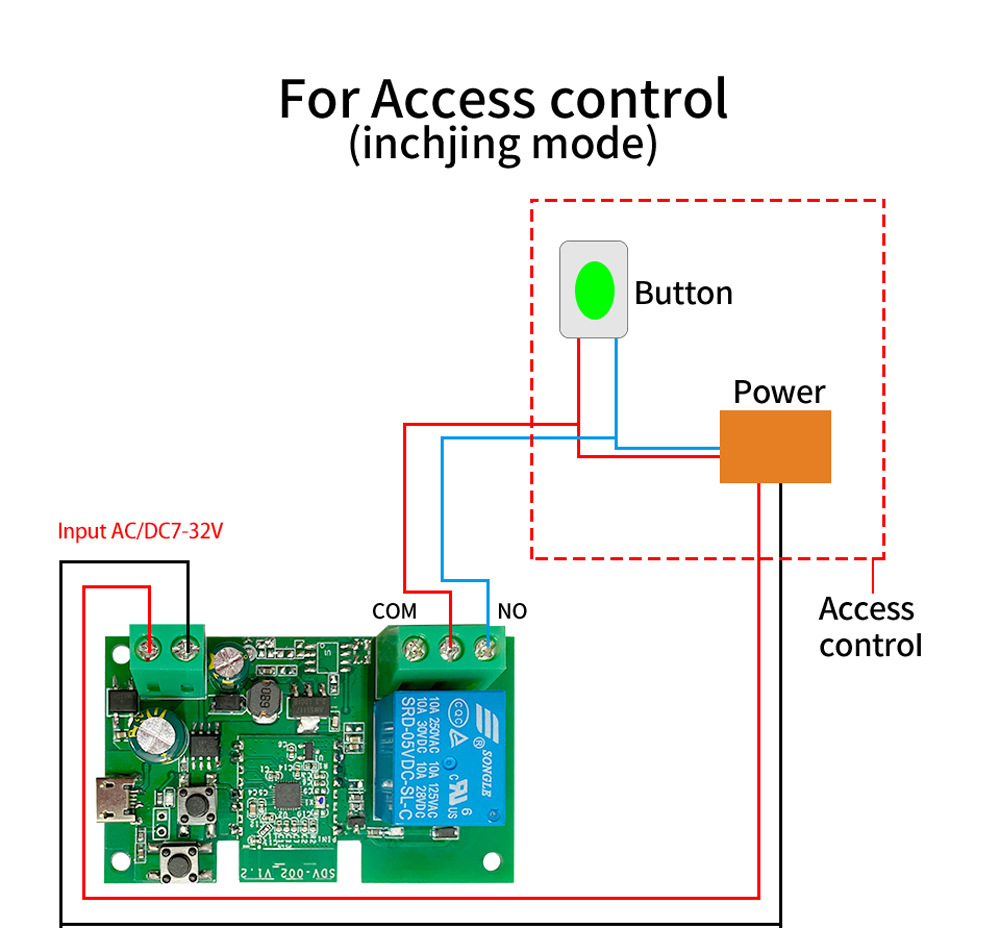

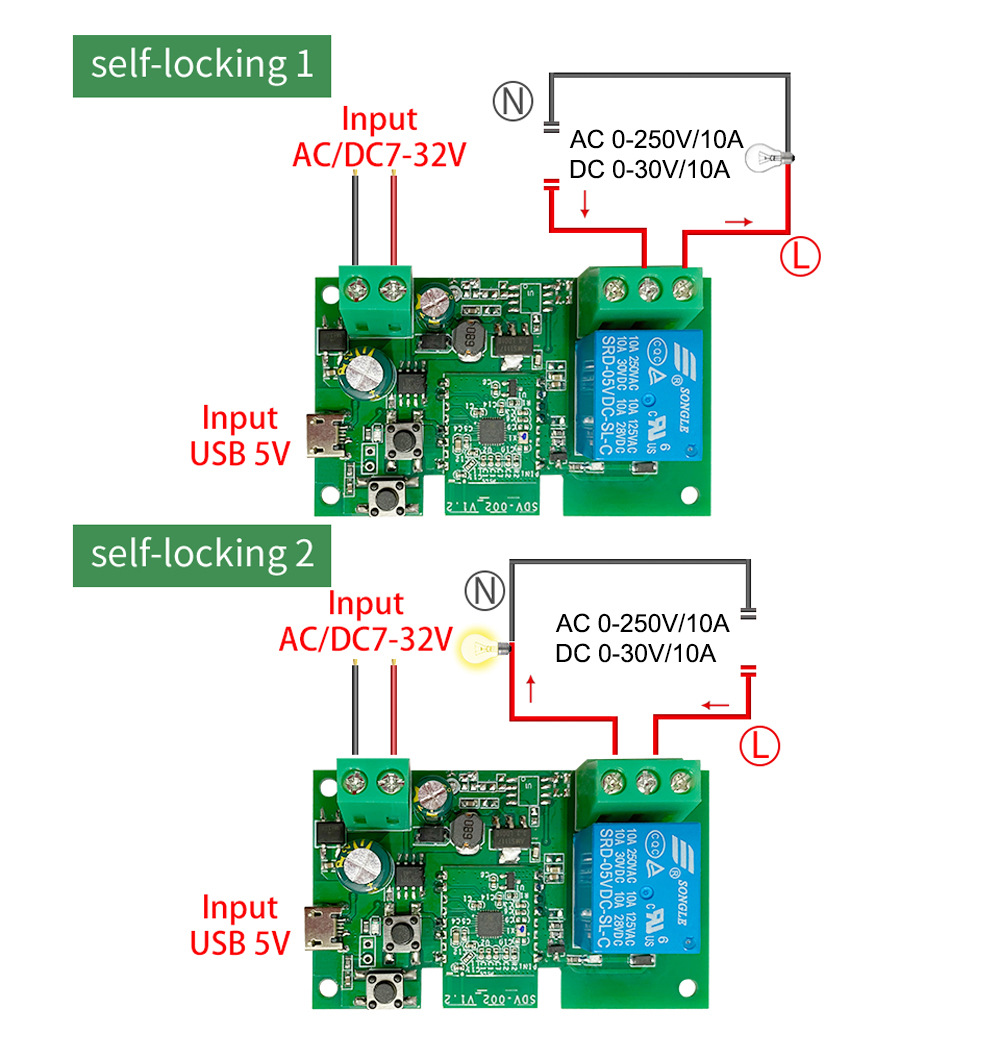

• Multiple Work Modes: Supports "Inching" (momentary pulse, ideal for gates/garage doors) and "Self-Locking" (standard on/off switch) modes, configurable within the app.
• Scheduling & Timers: Set timers, countdowns, and smart scenes to automate routines.
• Device Sharing: The primary owner can share control access with other eWeLink users.
• Dry Contact Output: The relay provides a voltage-free "dry contact" (NO/COM/NC terminals), ensuring safe isolation from the module's power supply and compatibility with various systems

Specification:

• Input Voltage: DC 5V (USB) or DC 7-32V
• Max Load (DC): 10A / 30VDC
• Max Power: 2200W (approx. 10A max)
• Wi-Fi Standard: 2.4GHz b/g/n
• Control App: eWeLink (Android & iOS)
• Operating Temp: -20°C to 70°C

Package includes:

• 1 X Gate / Garage Wifi Smart switch
