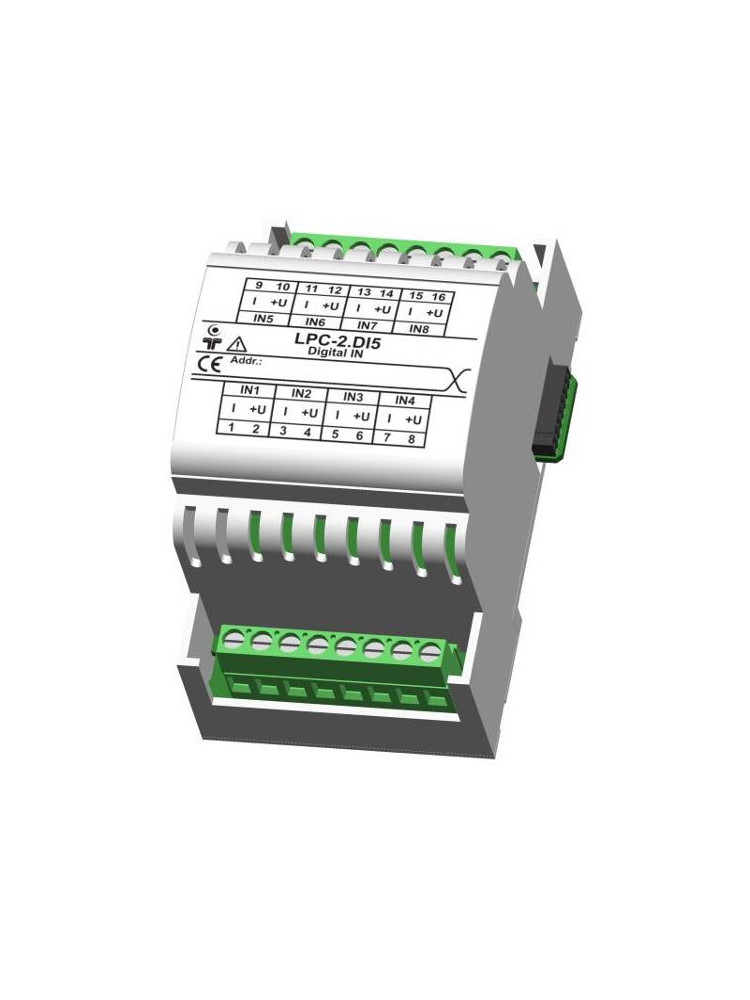

LPC-2.DI5 | 8DI Digital Input Module Volt-Free

Overview:

LPC-2.DI5 is intended for use as digital input module for voltage free (dry) contacts. Eight channels are available for input connection. Module's inputs are galvanic isolated. This module can be used in a wide range of operations.

Features:

• Eight standard digital inputs, galvanic isolated Flexible input for wide use of operation
• Standard DIN EN50022-35 rail mounting
• Module is powered from internal BUS.

Specification:

• Power supply: from internal BUS
• Power consumption: 1.5 W
• Number of digital inputs: 8
• Input threshold: ”ON”: 40 kΩ / “OFF”: >40 kΩ
• Connection type: screw type connector for stranded wire 0.75 to 2.5 mm2
• Max. transition time: 1 s
• Dimensions (L x W x H): 90 x 53 x 60 mm
• Weight: 100 g
• Ambient temperature: 0 to 50 °C
• Ambient humidity: max. 95 %, no condensation
• Maximum altitude: 2000 m
• Mounting position: vertical
• Transport and storage temperature: -20 to 60 °C
• Pollution degree: 2
• Protection class: IP 3

Package includes:

• The LPC-2.DI5 Module
• Configuration Software
• Online Resources
• User Manual
• Email support for technical questions

Need Help?:

• Contact us at:
• Email Support: [email protected]
• Contact Number: +27 10 443 2581

Availability:

Please email [email protected] to check stock availability.
Lead time:

• 2-3 days for main centres - if in stock. (if Overnight system is used on the Courier Guy. Rates: R120)
• 3-5 days for outlying areas - if in stock. (If Eco System is used with the Courier Guy. Rates: R170)
• 2-3 weeks if not in stock.
