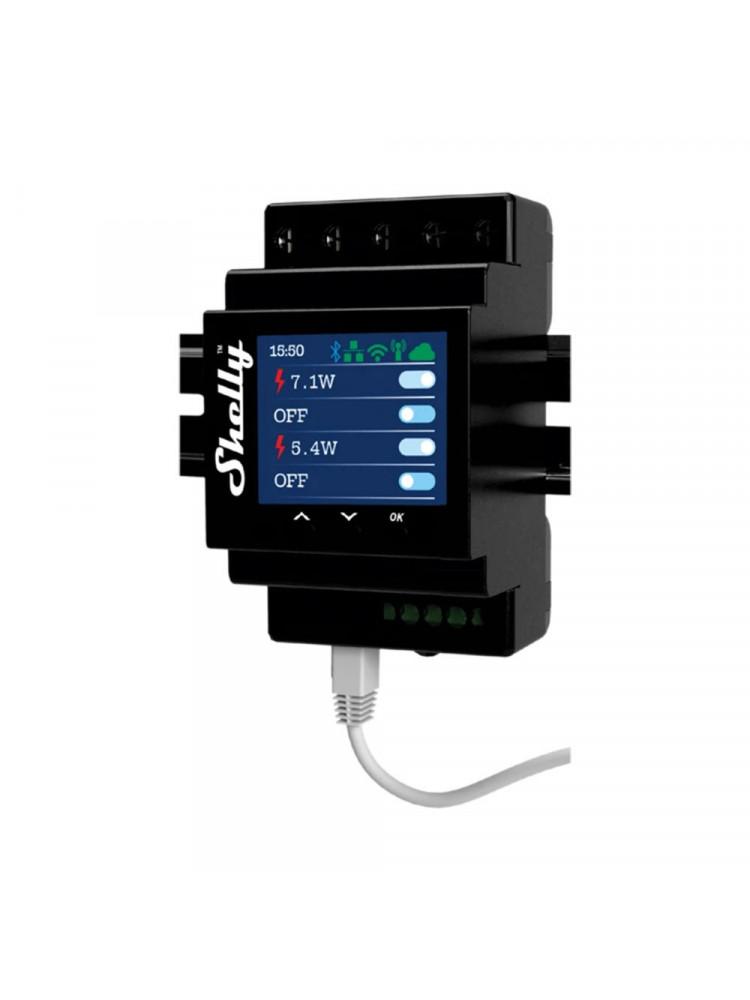

Shelly Pro 4PM - 1P 4CH 40A

Overview:

Shelly Pro 4PM is a one-phase, 4-channel relay, supporting up to 16A per channel with a total device capacity of 40A. Shelly Pro 4PM is equipped with four integrated precise power meters that allow you to control and monitor the consumption for each channel separately. Equipped with LAN, Wi-Fi, and Bluetooth connectivity, it allows for a more secure and reliable connection. Use scripting functionalities to set custom automation scenes based on various occurrences, weather forecasts, wind forecasts, etc.

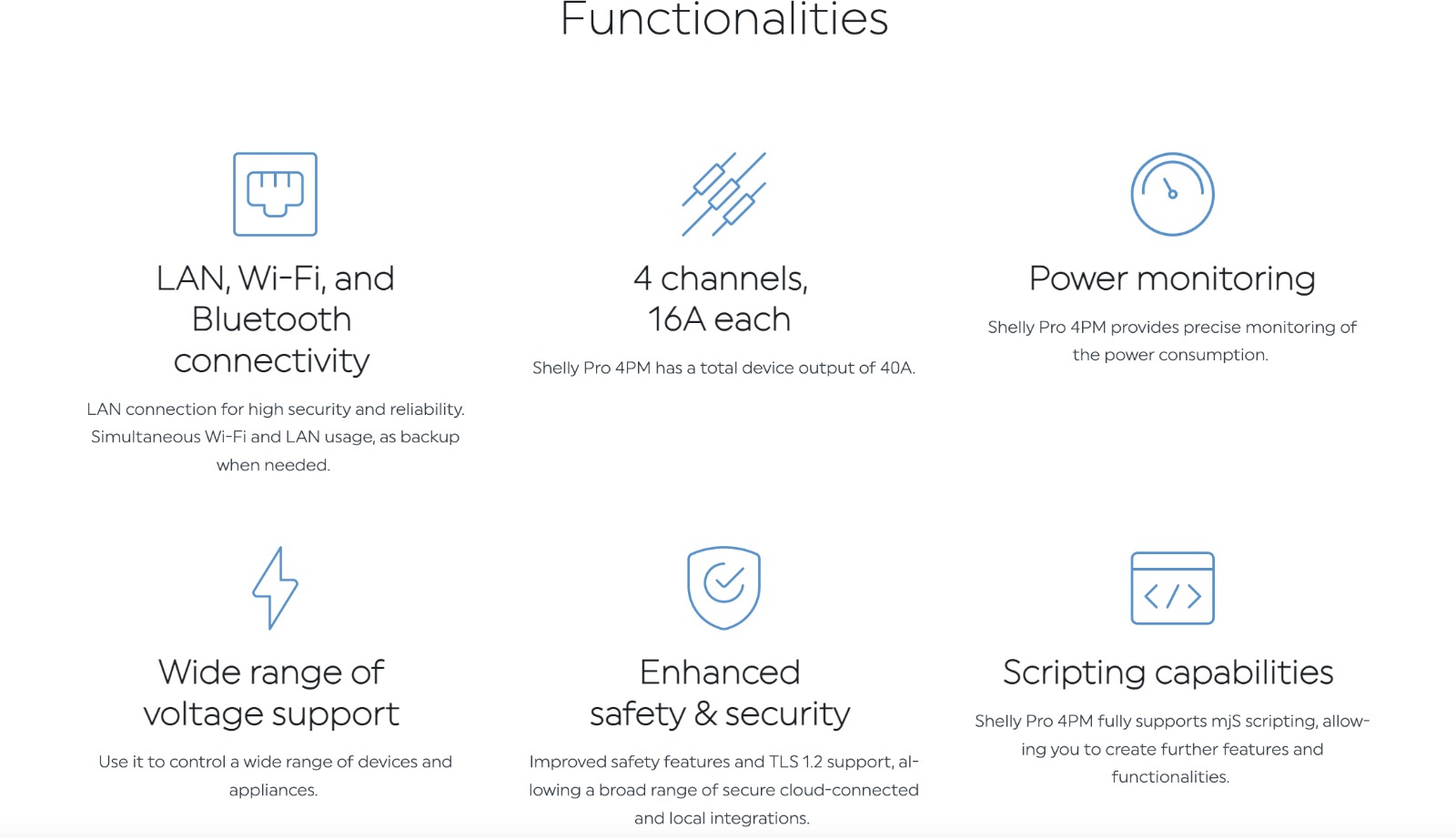

Features:

• HTTP/HTTPS webhooks: Yes
• Custom scripts(mJs): Yes
• Operational temperature: -20°C to + 40 °C
• Device power consumption: < 4 W
• Intelligent On/Off: Yes
• Local and remote control: Yes
• Sunrise/Sunset: Yes
• Weekly schedule: Yes
• UL Listed option: No

Specification:

Power:

• Power supply AC: 110-240V ±10%, 50/60Hz
• Maximum Load: 16A per channel, 40A total
• Channels: 4 Channel

Special Functions:

• Over temperature protection: Yes
• Overload protection: Yes
• Power measurement: Yes
• Working without a neutral line: No

Connectivity:

• Wireless: Yes
• Wireless/Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi radio frequency: 2400 – 2495 MHz
• Max RF output power: <20 dbm
• Wi-Fi Range: Up to 50m outdoors; Up to 30m indoors (Depending on the building materials)
• Bluetooth: Yes
• Ethernet: Yes

Physical:

• Size: 94mm x 53mm x 59mm
• Mounting: DIN Rail
• Conductor Cross Section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
• Conductor Sripped Length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
• Shell Material: Plastic

Environmental:

• Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
• Humidity: 30 % to 70 % RH
• Max. altitude: 2000 m / 6562 ft

MCU:

• CPU: ESP32-D0WDQ6
• Flash: 8MB

Sensors, Meters:

• Voltmeter (AC): Yes
• Ammeter (AC): Yes
• Temperature Sensor: Yes

Resources:

• User Manual
• Declaration of conformity
• Device Finder - Windows
• Device Finder - Mac OSX
• Cloud API
• Device API
• REST API

Package includes:

• 1 x Shelly Pro 4PM - 1P 4CH 40A
