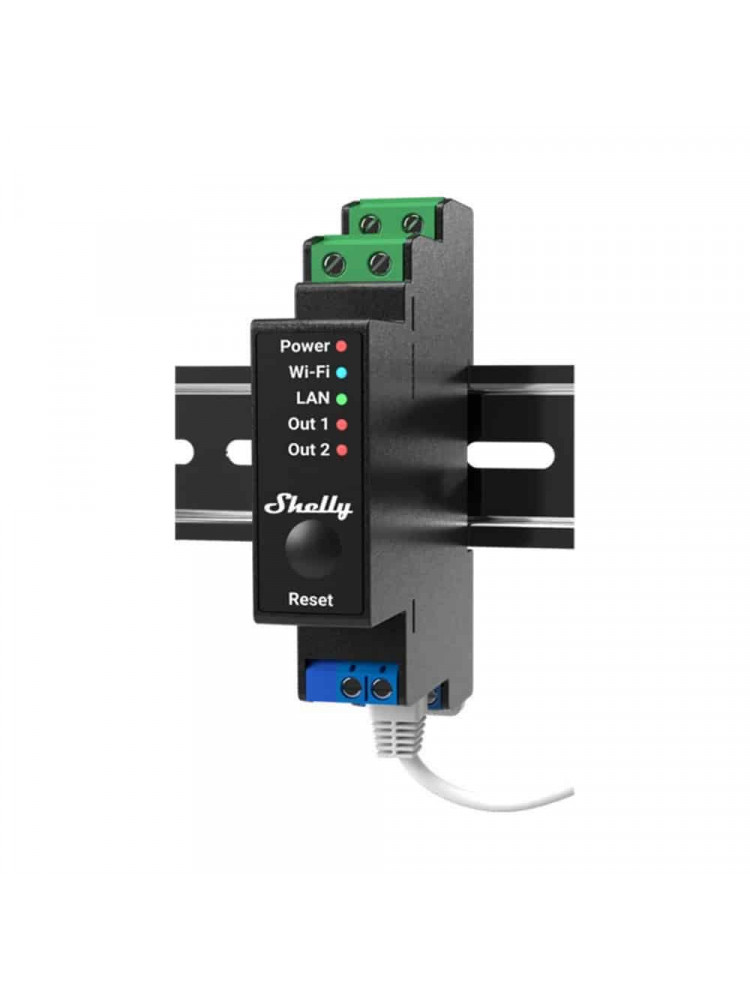

Shelly Pro 2PM - 1P 2CH 25A

R 2,600.00

Shelly Pro 2PM is a one-phase, 2-channel relay, supporting up to 16A per channel with a total device capacity of 25A. Shelly Pro 2PM is equipped with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately.

Quantity

Currently out of stock - on back-order

Overview:

Shelly Pro 2PM is a one-phase, 2-channel relay, supporting up to 16A per channel with a total device capacity of 25A. Shelly Pro 2PM is equipped with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. It supports two-directional motor control, which makes it perfect for the automation of roller shutters, curtains, awnings, gates, and many more! Use scripting functionalities to set custom automation scenes based on various occurrences, weather forecasts, wind forecasts, etc

Features:

• HTTP/HTTPS webhooks: Yes
• Custom scripts(mJs): Yes
• Operational temperature: -20°C to + 40 °C
• Device power consumption: < 3 W
• Intelligent On/Off: Yes
• Local and remote control: Yes
• Sunrise/Sunset: Yes
• Weekly schedule: Yes
• UL Listed option: No

Specification:

Power:

• Power supply AC: 110-240V ±10%, 50/60Hz
• Maximum Load: 16A per channel, 25A total
• Channels: 2 Channel

Special Functions:

• Roller shutter mode: Yes
• Over temperature protection: Yes
• Overload protection: Yes
• Power measurement: Yes
• Working without a neutral line: No

Connectivity:

• Wireless: Yes
• Wireless/Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi radio frequency: 2400 – 2495 MHz
• Max RF output power: <20 dbm
• Wi-Fi Range: Up to 50m outdoors; Up to 30m indoors (Depending on the building materials)
• Bluetooth: Yes
• Ethernet: Yes

Physical:

• Size: 94mm x 19mm x 69mm
• Mounting: DIN Rail
• Conductor Cross Section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
• Conductor Sripped Length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
• Shell Material: Plastic

Environmental:

• Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
• Humidity: 30 % to 70 % RH
• Max. altitude: 2000 m / 6562 ft

MCU:

• CPU: ESP32-D0WDQ6
• Flash: 8MB

Sensors, Meters:

• Voltmeter (AC): Yes
• Ammeter (AC): Yes
• Temperature Sensor: Yes

Resources:

• User Manual
• Declaration of conformity
• Device Finder - Windows
• Device Finder - Mac OSX
• Cloud API
• Device API
• REST API

Package includes:

• 1 x Shelly Pro 2PM - 1P 2CH 25A
