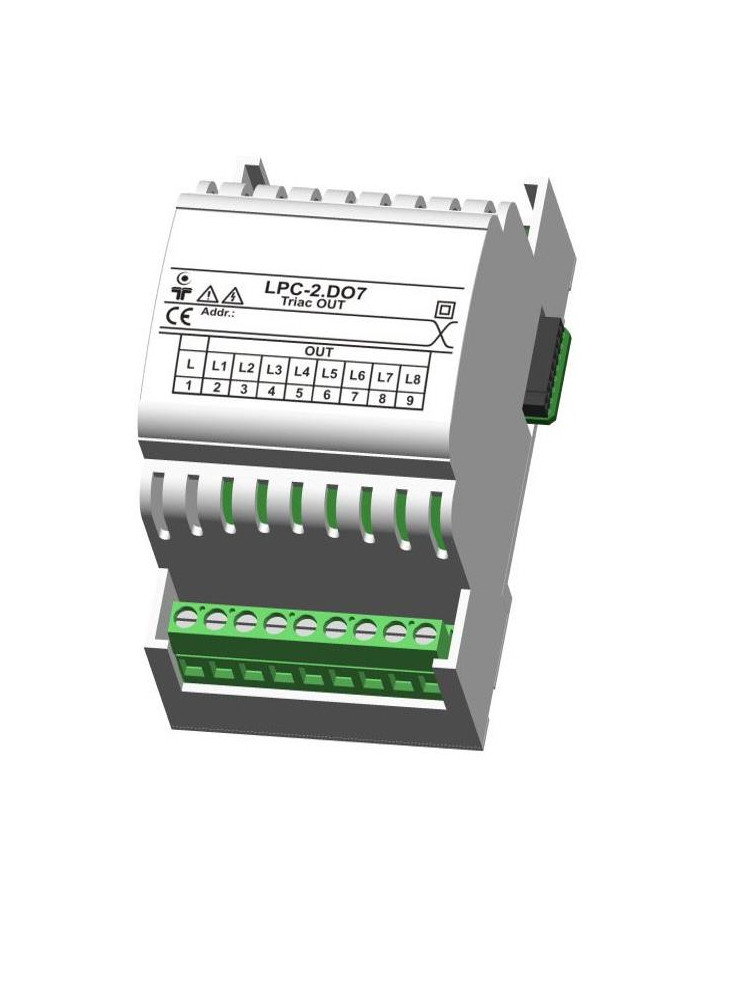

LPC-2.DO7 | Module 8xDO Triac 230V AC

Overview:

LPC-2.DO7 is an eight snubberless zero crossing triac digital output module. It can be used in a wide range of operations. Light emitting diodes (LED) indicate each triac's contact state. If a Light Emitting Diode (LED) is on, the module's connection pins for the correspondent triac are shorted.

Features:

• Eight (8) snubberless zero crossing triac output also suitable for use with inductive loads
• Long life AC digital output
• Standard DIN EN50022-35 rail mounting
• LPC-2.DO7 is controlled and powered from the main module (e.g., LPC-2.MC8, LPC-2.MC9) via Right internal bus.  

Specification:

• Power supply: from internal BUS
• Power consumption: 1 W
• Rated load voltage: 24 .. 230 V AC
• Number of digital outputs: 8 triac make contacts (NO)
• Output current per channel: 0.05 .. 0.9 A continuous load
• Max. modul load: 1000 W
• Connection type: screw type connector for stranded wire 0.75 to 2.5 mm2
• Max. transition time per channel: 1 s
• Dimensions (L x W x H): 90 x 53 x 60 mm
• Weight: 110 g
• Ambient temperature: 0 to 50 °C
• Ambient humidity: max. 95 %, no condensation
• Maximum altitude: 2000 m
• Mounting position: vertical
• Transport and storage temperature: -20 to 60 °C
• Pollution degree: 2
• Overvoltage category: II
• Electrical equipment: class II (double insulation)
• Protection class: IP

Package includes:

• The LPC-2.DO7 Module
• Configuration Software
• Online Resources
• User Manual
• Email support for technical questions
