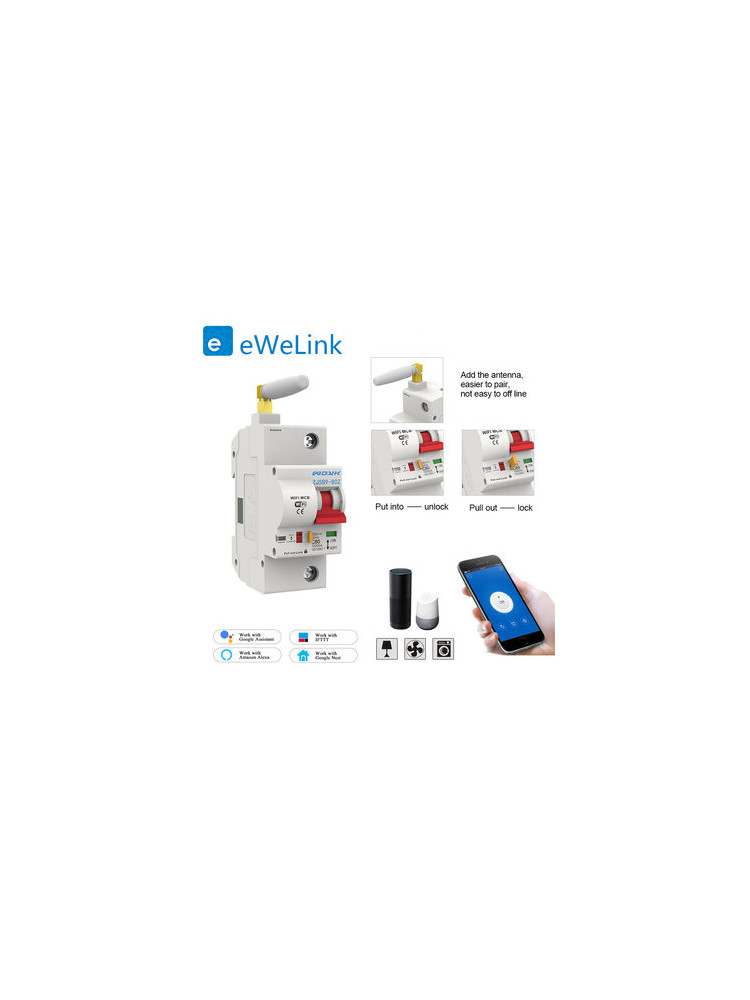

1P Smart Circuit Breaker Switch - eWelink 100A
Connect this high powered Smart Switch to your high current appliances and control it from anywhere.
This device can control high powered devices (up to 100A). You can set this device to automatically switch off an appliance e.g. your geyser during peak times and switch it back on during off peak times. Once connected, you can control it with your phone or voice assistants like Alexa or Google Home.
Note: This is a single channel switch and it does not have power monitoring. Please consult with an electrician prior to installation.
The Wifi enabled circuit breaker is suitable for 50Hz, 230V/400V, 0-125A circuits which require overload protection, short-circuit protection and isolating protection. Meanwhile, this intelligent recloser circuit breaker can be switched off/on by a smart cell phone using the eWelink app, switched off/on using a timer, switch off/on by time delay and switch off/on by cycle.
• Remote control at anytime from anywhere
• Schedule ON/OFF
• Voice control for Amazon Alexa and Google home
• Overload and short circuit protection
• Over voltage and under voltage protection
• Standard: GB10963.1, IEC60898-1
• Rated voltage: AC 230V 1P
• Frequency: 50/60Hz
• Pole number: 1P
• Anti-pollution grade: IP20
• Installation category: II, III
• Ambient temperature: -25℃ to 65℃
• Frame grade rated current: 125A
• Instantaneous tripping characteristic: C
• Rated short circuit breaking capacity: 10KA
• Rated impact withstand voltage: 6KV
• Mechanism life: >10000times
• Electrical life: >6000times
• 1 x 1P 100A WiFi Switch
