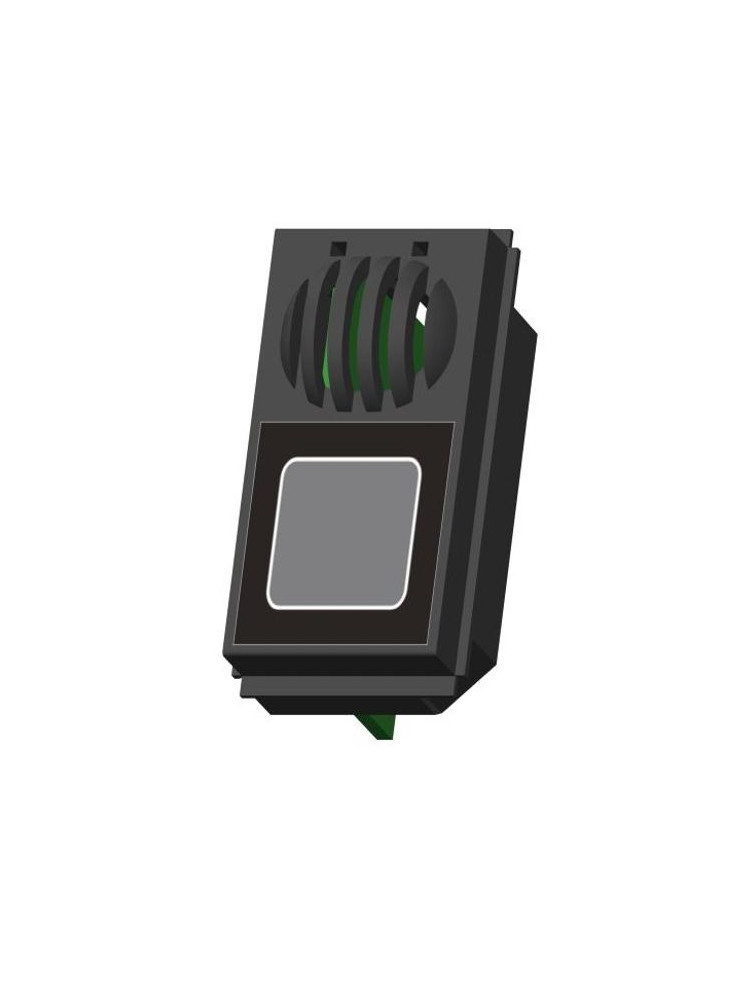

LPC-2.IR2V |Multisensor

Overview:

The LPC-2.IR2V is a sensor consists of the lux sensor for light intensity measurements, temperature sensor, relative humidity sensor and infrared (IR) receive/transmit for infrared (IR) communication. Measuring light intensity, temperature and relative humidity provides the information needed for achieving good work conditions. Infrared transmit feature can be used for remote controller substitution e.g. air conditioning can be controlled from the Smarteh main module via LPC-2.IR2V in parallel with remote controller.

Features:

• Room temperature and relative humidity measurement Lux sensor for light intensity measurement
• IR receive/transmit
• Programmable IR transceiver
• RC-5 IR protocol receiver Daikin, Toshiba, Hitachi, Panasonic, Mitsubishi, LG IR protocol transmitter
• 2 diagnose LED
• Modular frame mounting

Specification:

• Power supply: from main module
• Interconnection connector type: RJ-12 6/6
• Power consumption: 0.5 W
• Light intensity measurement range: 0 .. 2990 lux3
• IR frequency carrier: 38 kHz
• IR default max. pulse length in protocol used for learning: 16 ms
• IR default min. pulse length in protocol used for learning: 250 us
• IR max. number of pulses for learning single IR command: 550
• Dimensions (W x H x D): 24 x 48 x 52 mm
• Weight: 20 g
• Maximum altitude: 2000 m
• Mounting position: any
• Ambient temperature: 0 to 50 °C
• Ambient humidity: max. 95 %, no condensation
• Transport and storage temperature: -20 to 60 °C
• Protection class: IP 20
When using Daikin, Toshiba, Hitachi, Panasonic, Mitsubishi or LG IR protocol transmitter consult with Smarteh.co.za for various sub protocols

Package includes:

• The LPC-2.IR2V Module
• Configuration Software
• Online Resources
• User Manual
• Email support for technical questions

Need Help?:

• Contact us at:
• Email Support: [email protected]
• Contact Number: +27 10 443 2581

Availability:

Please email [email protected] to check stock availability.
Lead time:

• 2-3 days for main centres - if in stock. (if Overnight system is used on the Courier Guy. Rates: R120)
• 3-5 days for outlying areas - if in stock. (If Eco System is used with the Courier Guy. Rates: R170)
• 2-3 weeks if not in stock.
