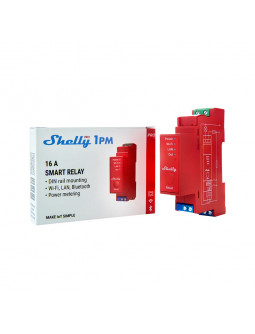

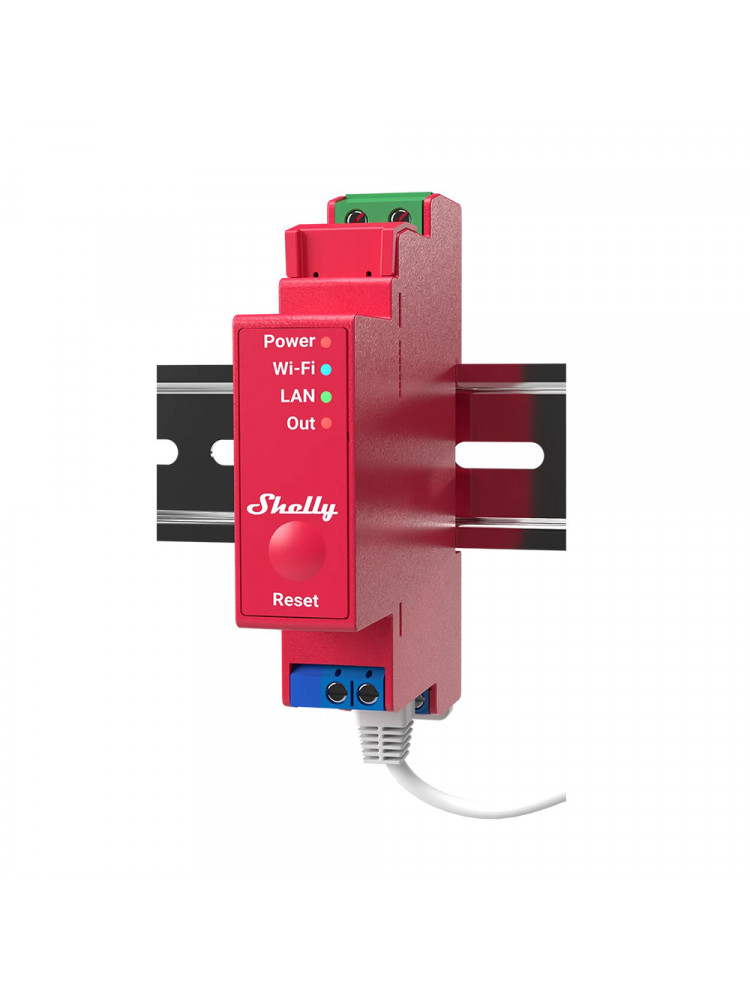

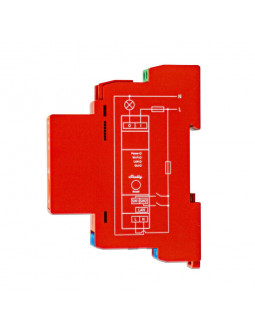

Shelly Pro 1PM - 1P 1CH 16A

R 1,960.00

Description
Product Details

Overview:

Shelly Pro 1PM is a one-phase, 1-channel relay supporting up to 16A. Equipped with an integrated power meter, Shelly Pro 1PM allows you to measure the precise power consumption of all automated lights or heavier appliances. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. Additionally, Shelly Pro 1PM has scripting functionalities for custom automation scenes based on external data or various occurrences.

Features:

• HTTP/HTTPS webhooks: Yes
• Custom scripts(mJs): Yes
• Operational temperature: -20°C to + 40 °C
• Device power consumption: < 3 W
• Intelligent On/Off: Yes
• Local and remote control: Yes
• Sunrise/Sunset: Yes
• Weekly schedule: Yes
• UL Listed option: No

Specification:

Power:

• Power supply AC: 110-240V ±10%, 50/60Hz
• Maximum Load: 16A
• Channels: 1 Channel

Special Functions:

• Roller shutter mode: No
• Over temperature protection: Yes
• Overload protection: Yes
• Power measurement: Yes
• Working without a neutral line: No

Connectivity:

• Wireless: Yes
• Wireless/Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi radio frequency: 2400 – 2495 MHz
• Max RF output power: <20 dbm
• Wi-Fi Range: Up to 50m outdoors; Up to 30m indoors (Depending on the building materials)
• Bluetooth: Yes
• Ethernet: Yes

Physical:

• Size: 94mm x 19mm x 69mm
• Mounting: DIN Rail
• Conductor Cross Section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
• Conductor Sripped Length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
• Shell Material: Plastic
