Sonoff Gate / Garage Wifi Smart Switch

R 160.00

With this device you can make your electronic gate or garage door smart. When this device is installed, you can open or close your gate/door with either the eWelink app or any voice assistant.

Quantity

Stock Available
17 Items

Overview:

The wireless switch supports inching /self-locking mode. You can add the device to the APP eWeLink to remote control connected home appliances or devices. In self-locking mode, you can remote turn on/off connected devices immediately. When in inching mode, you have two wiring ways to select, whether turn on 1s and then auto-off or turn off 1s and then auto-on.

Remote control by APP EweLink for iOS and Android. Supported functions include remote on/off, timing schedules, device sharing, group management.

The self-lock/inching mode wireless switch has two power supply specification: 5V. No matter which specification you select, they have the same functions.

Feature:

There are two working modes for the module: inching mode and self-locking mode. Press the self-lock/inching mode button to switch between these two modes.

When your module is switched to self-locking mode, you can turn on/off the connected appliance instantly. There is two wiring way.

When your module is switched to inching mode, you can press on/off toggle button to turn on or off connected device. There are two kinds of wiring way.

The first wiring way is to connect COM and NO with an appliance. In this way, when you press the setting button or APP to turn on, the connected appliance will be turned on for 1s and then auto turned off.

The second wiring way is to connect NC and COM with an appliance. In this way, when you press the setting button or APP to turn off, the connected appliance will be turned off for 1s and then auto turned on.



LED Indicator:

There are 3 LEDs, the led beside self-lock/inching mode button indicates the working mode(on: self-locking mode, off: inching mode).

The one beside on/off setting button indicates wifi status(enter pairing status: long press the setting button until led fast blink).

Another one below the relay indicates relay on or off status(on: turn on the connected device, off: turn off connected device).



Add device to eWeLink:

Long press the setting button until the LED beside on/off setting button fast blinking.

1. Android: Add Device->select pairing method according to how the LED blinks->enter WiFi name and password->pairing and register->name device

2. iOS: go to phone setting->WiFi-> select the WiFi starts with ITEAD-********, enter default password to connect:12345678-> go to eWeLink->Add device->->select pairing method according how the LED blinks->enter WiFi name and password->pairing and register->name device

Features:

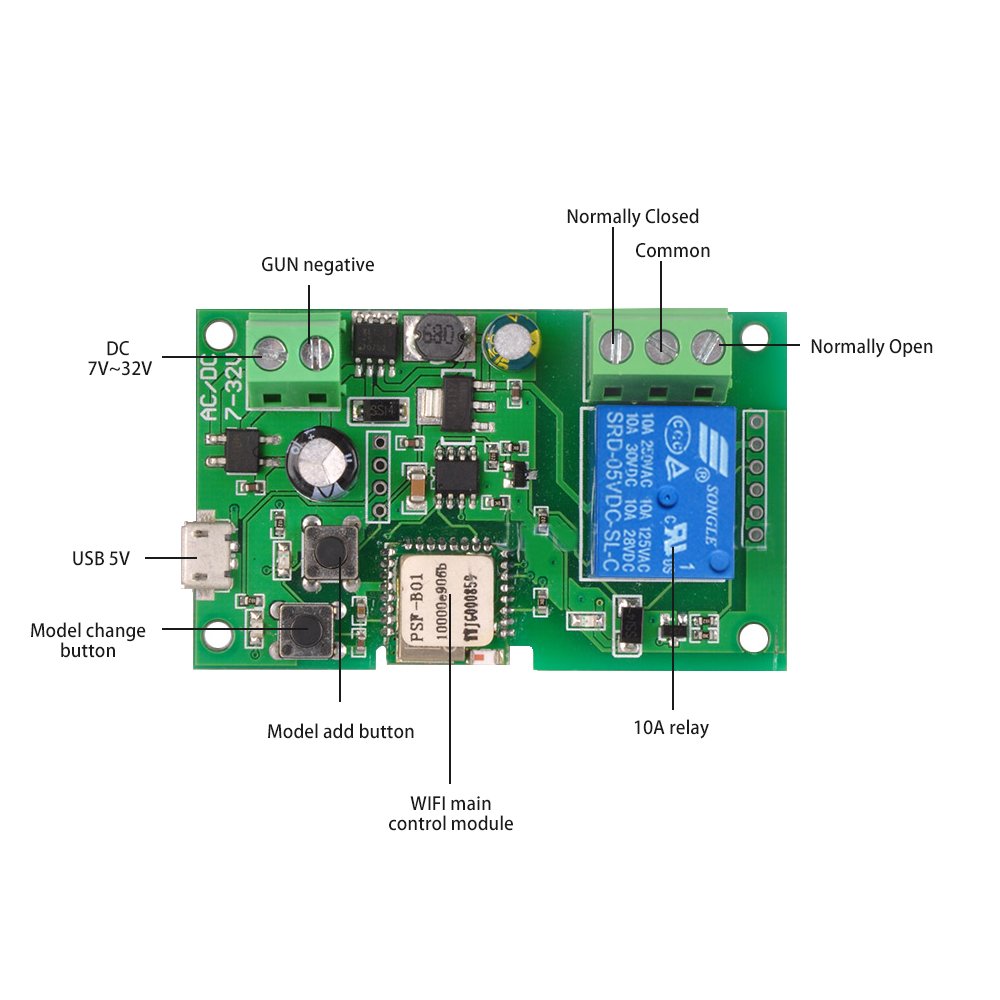

Two working voltage: USB 5V and DC 7V-32V

With signal instruction light and relay pull-on instruction light

Power < 1W, and quiescent current:80mA

Cutover current< 10A , Cutover voltage< 250V

10A Relay Model

The life of Relay Model is more than 1,000,000

Insulation resistance: 100M

Maximum pull-on time: 15mS

Maximum release time: 5mS

Working Temperature: -40 to 70degree

Working Humidity: 40% to 80% RH

Size: about 80*15*35mm



Function:

1. Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately(default one second), it has the timing-share function at the same time.

2. Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.

Package included:

1 x WIFI Wireless Smart Home Switch
