Overview:
The Black 11A Push Button Switch is a compact and reliable self-locking (latching) switch designed for a wide range of electronic and DIY applications. Featuring a 12mm panel-mount design and a bright green round cap, this switch stays in the ON position after being pressed and returns to OFF only when pressed again. Its 2-pin configuration makes it easy to wire and integrate into control panels, embedded systems, robotics, and low-voltage circuits.
Features:
• Self-locking (latching) mechanism: press to turn ON, press again to turn OFF
• Bright black round cap for easy identification
• 12mm panel-mount size for simple installation
• 2-pin configuration for straightforward connection
• Durable plastic and metal construction for long service life

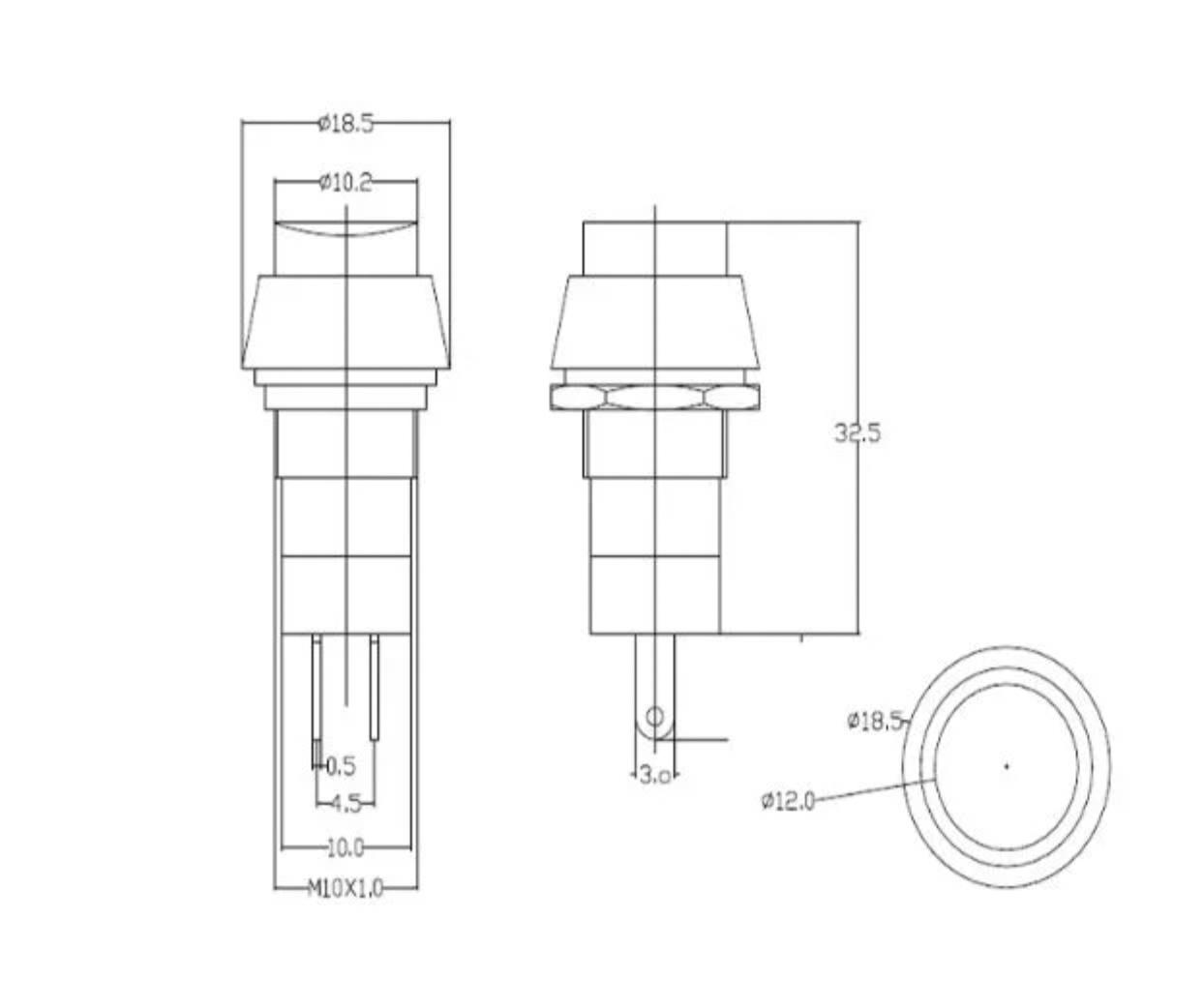

Specification:
• Model: PBS-11A
• Colour: Black
• Switch Type: Self-locking (latching)
• Mounting Hole Diameter: 12mm
• Pins: 2-pin configuration
• Button Shape: Round cap
• Operation: Latching ON/OFF
• Rated Voltage & Current: 250V AC / 1.5A
• Insulation Resistance: ≥100MΩ
• Contact Resistance: ≤50mΩ
• Mechanical Life: ≥50,000 operations
• Material: Plastic housing with metal contacts
• Operating Temperature: -25°C to +85°C
• Weight: ~6g
Package includes:
• 1 x Black 11A 12mm 2Pin Self-Locking Push Button Switch
