Mini Angle Unit Rotary Switch with Potentiometer

R 80.00

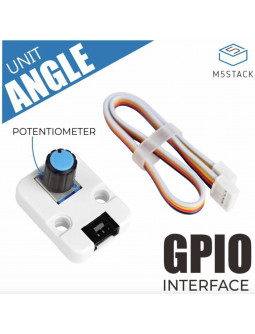

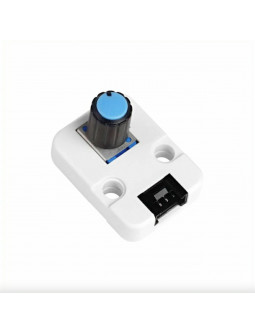

ANGLE is a rotary switch Unit which simply includes a 10K Ohm potentiometer inside. This unit can be used for Continuous signal rotatory control for applications such as volume, brightness, or motor speed.

Quantity

Stock Available
2 Items

Overview:

ANGLE is a rotary switch Unit which simply includes a 10K Ohm potentiometer inside. This unit can be used for Continuous signal rotatory control for applications such as volume, brightness, or motor speed.
A potentiometer is a manually adjustable variable resistor with three terminals: Two terminals are connected to a resistive element, the third terminal is connected to an adjustable wiper. The position of the wiper determines the output voltage.
The out voltage is captured and converted by AD on ESP32 on portB.
In M5Stack product system, Normally the Grove colour indicates the type of communications.

• Black: Single BUS (AD ,DA ,GPIO)
• Red: I2C
• Blue: Uart
• White: Others(depends)

The Unit's Grove interface is black, specify it is an analog interface that should be connected to the M5Core's GROVE B interface.

Features:

• Output voltage range: 0 ~ 2500mV
• GROVE interface, support UIFlow and Arduino
• Two Lego-compatible holes

Resources:

• Detailed description and specification

Tutorials:

• DIY Protractor with M5StickC
• Arduino example

Package includes:

• 1 x ANGLE Unit
• 1 x Grove Cable

M5-Ang-Rot-Switch-U005
