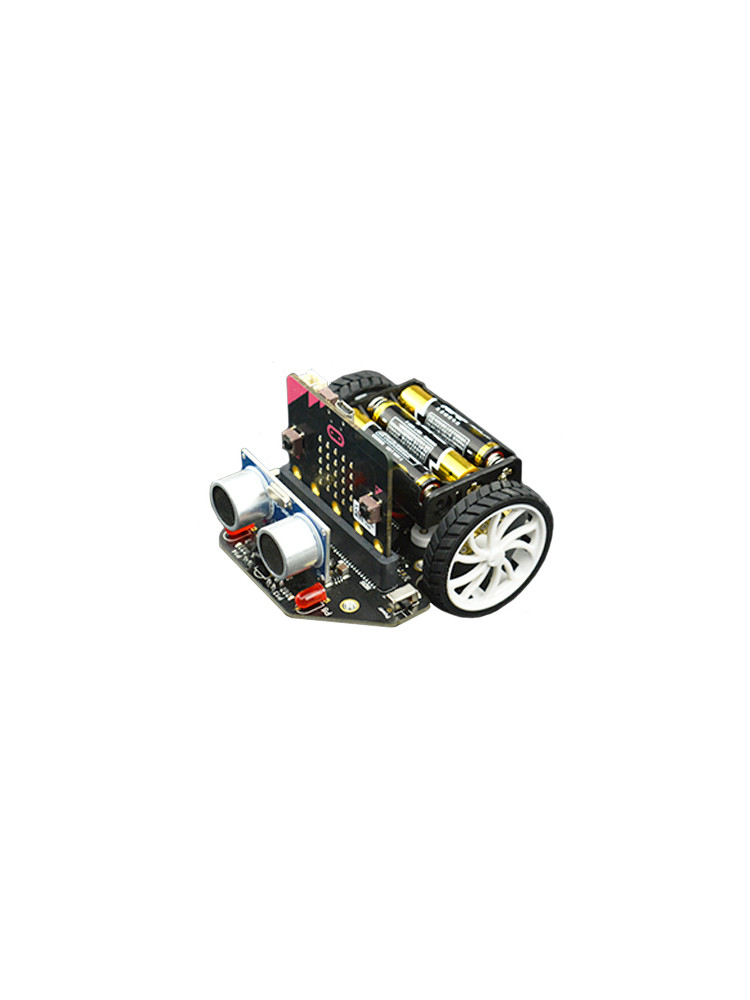

Maqueen micro:bit Educational Programming Robot Platform

Overview:

Maqueen, a robotics platform, is now compatible with the Mind+ Programming platform. Mind+ is a graphical programming platform developed by DFRobot, based on Scratch 3.0. It supports multiple programming platforms, including Python and Arduino.
Mind+ offers a user-friendly interface that allows users to program Maqueen and integrate it with various sensors, modules, and educational products. It provides a wide range of programming possibilities and enables users to explore the capabilities of Maqueen in a creative and interactive manner.
With the integration of Mind+ and Maqueen, users can leverage the power of visual programming and easily incorporate Maqueen into their projects, experiments, and educational activities. This combination expands the potential applications of Maqueen and provides users with a versatile and accessible programming platform.

Features:

• Supports Makecode with future support planned for Scratch and Python
• Small size with flexible movement capabilities
• Features an all-metal miniature gear motor for high-quality and strong driving force
• Includes line patrol, ambient light, LED lights, ultrasonic interface, buzzer, I2C interface, mechanical expansion screw hole, and more, making it a full-featured and highly expandable platform
• Equipped with an exclusive customized POM bearing wheel for flexible, reliable, and strong obstacle crossing ability
• Easy to install and user-friendly for convenient use

Specification:

• Supply Voltage: 3.5V~5V DC ( Three AAA batteries or 3.6V~3.7V lithium battery )
• Infrared Grayscale Sensor(High-low level) x 2
• Buzzer x 1
• Infrared Receiver (NEC decoder) x 1
• LED Lights (High-low level control) x 2
• RGB Ambient Light (16 million colors) x 4
• SR04, SR04P Ultrasonic Interface(5V) x 1
• IIC Interface (3.3V) x 1
• Gravity Extension Interfaces (P1, P2) x 2
• N20 All-metal Gear Motor x 2
• Motor Reduction Ratio: 1:150
• Maximum Rotate Speed: 133 rpm
• Motor Drive Mode: PWM motor drive
• Bracket and Protective Cover Extension M3 Screw Hole x 6
• Programming Method: Makecode graphical programming, Mind graphical programming (based on Scratch 3.0)
• Dimension: 81mm x 85 mm x 44mm/3.19 x 3.35 x 1.73in
• Weight: 75.55g
