Overview:

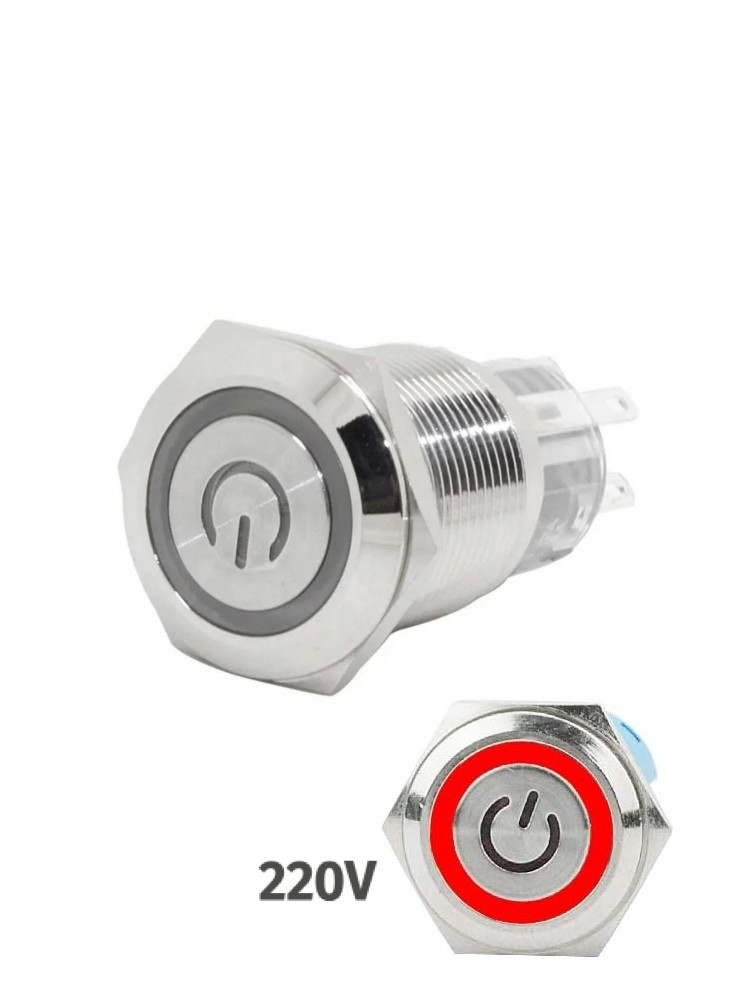

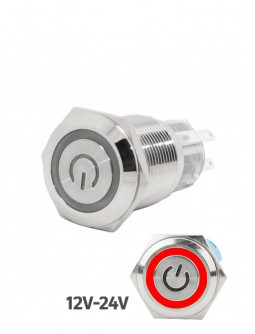

This Self-Locking Metal Push Button Switch is designed for heavy-duty applications, featuring a durable stainless steel construction and an illuminated Red LED ring. It is panel-mountable and enhances the appearance of dashboards or control panels with its premium look.
Features:
• Stainless Steel Construction: Ensures long-term durability and resistance to wear.
• High-End Appearance: Provides a sleek and aesthetically pleasing design, enhancing tactile feedback.
• Inbuilt Colourful Ring Illumination LED: Features an illuminated Red LED ring around the push area for visual indication.
• Various LED Colours Available: Allows customization based on application requirements.
• Independent LED Terminals: Provides flexibility in wiring and control of the LED ring.
• Bright Daylight LEDs: Offers clear visibility even in daylight conditions.
Specification:
• Light Colour: Red
• Operating Voltage: 220 VAC
• Operating Current: 2A MAX
• On/Off Function: Self-locking (Latching)
• Switch Type: Latching
• Installation Hole Diameter: 12 mm
• Contact Type: Solder Type
• Body Material: Stainless Steel and Plastic
• Electrical Life: ≥50,000 Life Cycles
• Protection Grade: IP66
Package includes:
• 1 x Flat Head 12mm 220V Waterproof Self-Locking Metal Push Button Switch with Red Light
