Ring:bit Car Accessories

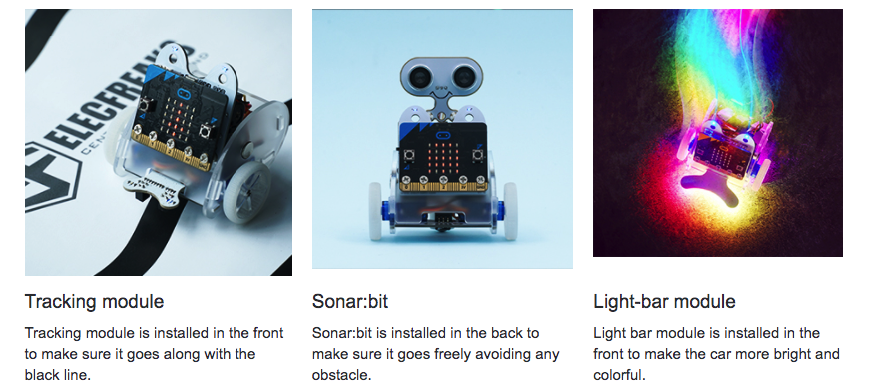

The Ring:bit Car Accessories Kit includes dedicated modules specifically designed for the Ring:bit car. These modules are the line following module, light-bar module, and Sonar:bit.
Please note that the micro:bit board is not included
Overview:
The Ring:bit Car Accessories Kit includes dedicated modules specifically designed for the Ring:bit car. These modules are the line following module, light-bar module, and Sonar:bit.
Features:

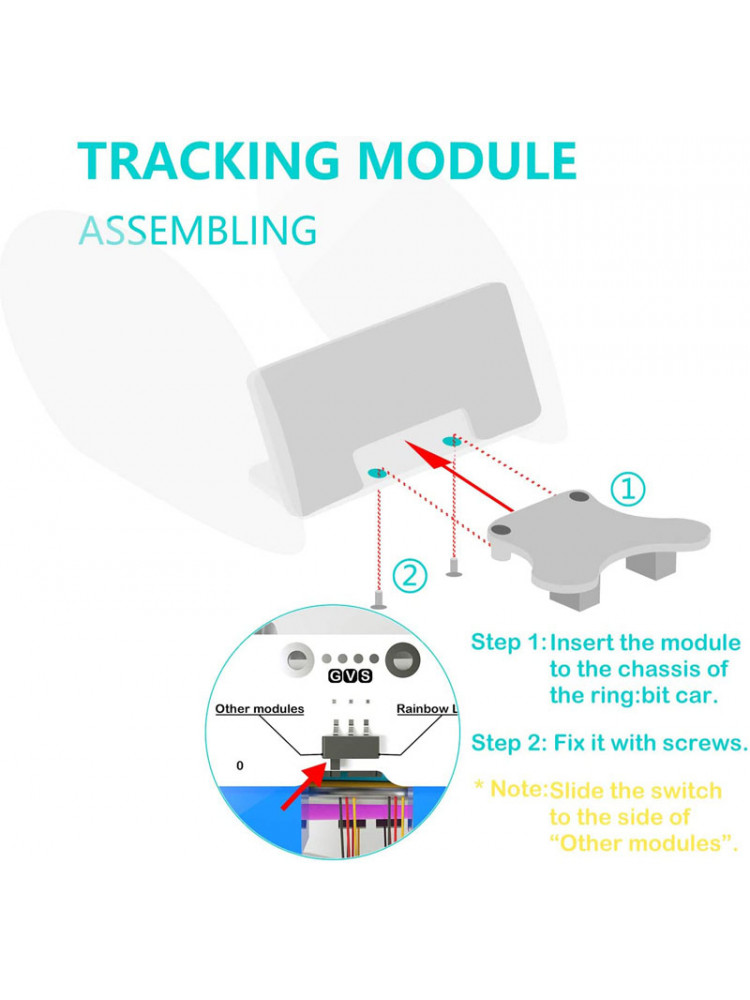

• The line following module is equipped with double infrared probes, allowing for accurate detection of distances between 2 to 12mm. It enables the car to follow lines, detect black lines, and identify edges.

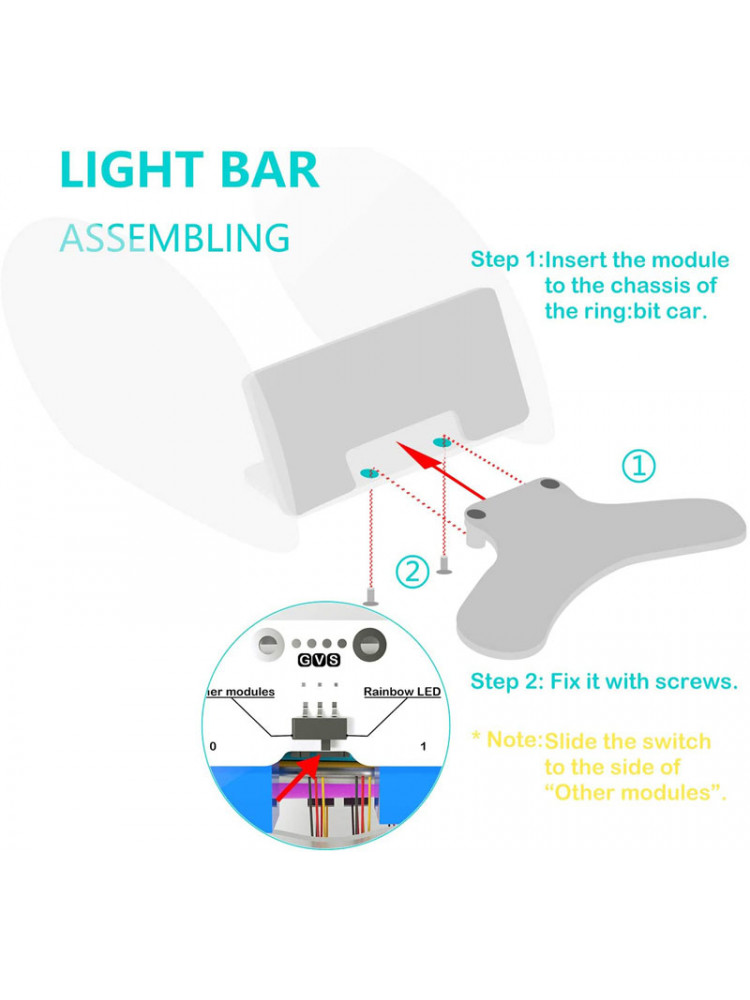

• The light-bar module provides a vibrant display with its 8 Rainbow full-colour LEDs. With simple assembly, it offers multiple colour options, allowing you to create a car with auto-headlights and rainbow lights.

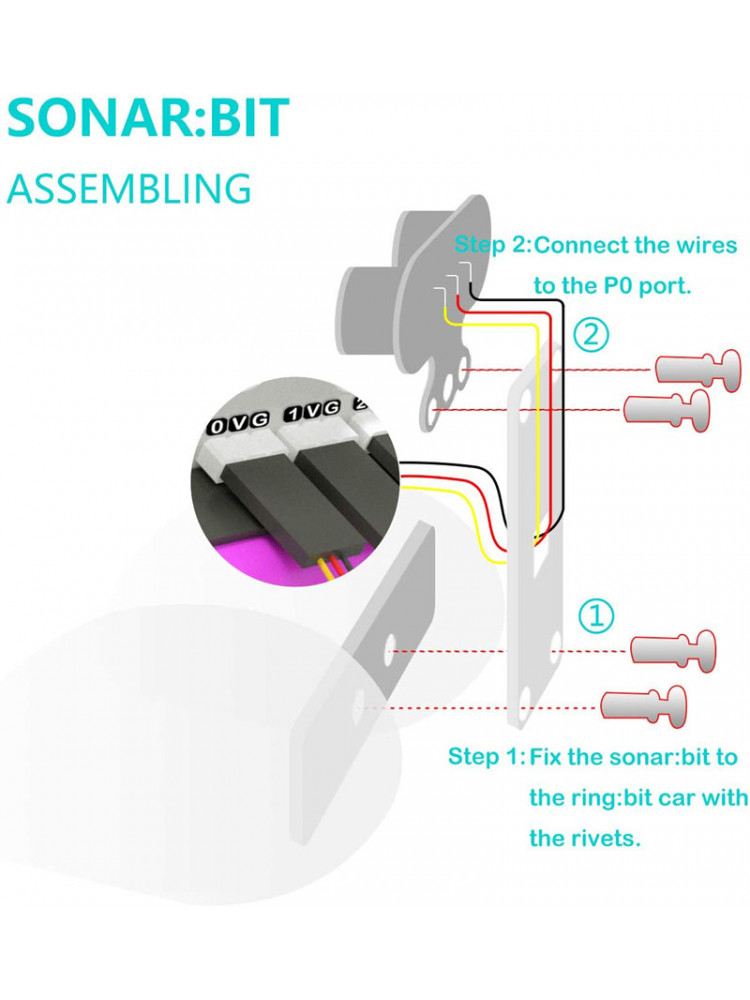

• The Sonar:bit module is installed at the back of the car to ensure obstacle avoidance. It is a 3-wire ultrasonic module compatible with 3.3V or 5V micro-controller systems. With just one 3-wire (GVS) cable, it functions effectively, saving an IO port compared to standard 4-wire ultrasonic modules. The Sonar:bit has a measurement range of 4cm to 400cm and provides stable and accurate measurement data with only ±1cm tolerance.
Package includes:
• 1 x line following module
• 1 x Light-bar module
• 1 x Sonar:bit module
