Overview:

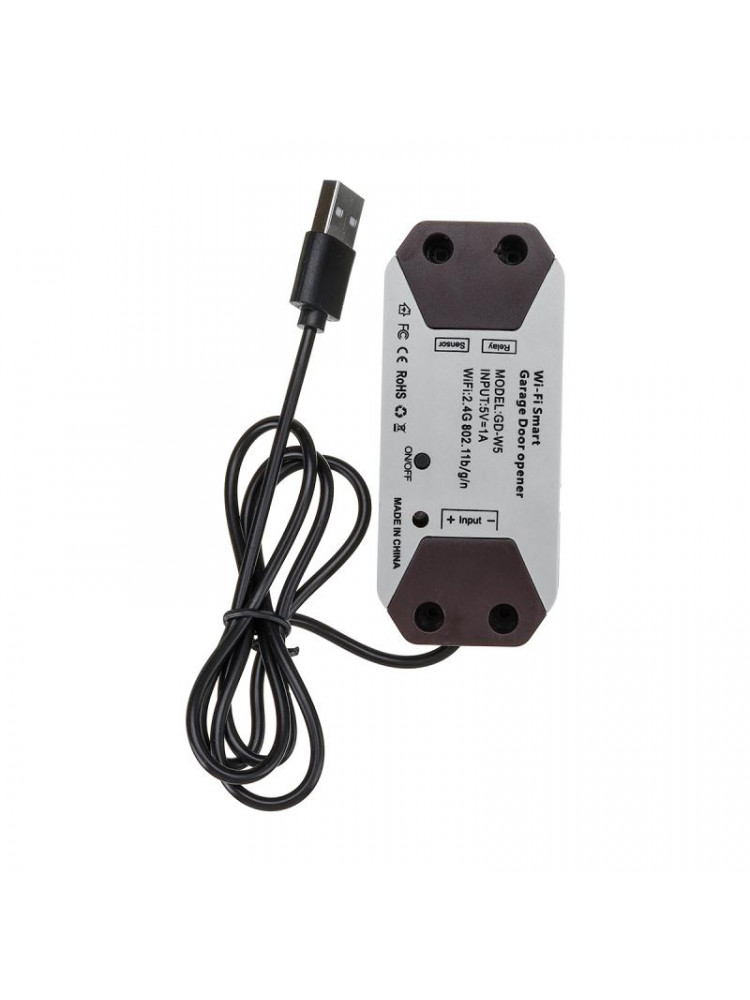

The GD-W5 WiFi Smart Garage Door Controller is a versatile IoT device that integrates with your home's 2.4GHz WiFi network to provide remote access control from anywhere in the world. Using the high-performance eWelink platform, it allows for independent monitoring of door status through a wired magnetic sensor. This device is engineered to fit various mounting environments and is compatible with almost all garage door openers where opening and closing are controlled by a single button terminal. It includes advanced features such as multi-user access for family members, real-time activity records, and reliable security encryption. Whether you are authorizing a guest to enter while you are away or checking if you forgot to close the door, the GD-W5 ensures secure and reliable operation.
Features:
- Remote On/Off: Simply click on your smartphone via the eWelink app to open and close your garage door from anywhere.
- Real-Time Reminders: Receive alerts on your phone if you leave the house and forget to close the garage door.
- Precise Scheduling: Set specific schedules to manage your garage door opening and closing times automatically.
- Voice Control: Perfectly compatible with Amazon Alexa and Google Assistant for hands-free voice commands.
- Device Sharing: Authorize multiple family members or visitors to access and control the garage door.
- Activity History: Check real-time activity records and historical data to ensure your garage remains secure.
- Easy Installation: Quickly and easily installed without professional help by connecting to existing wall button terminals.
- Secure Encryption: Features best-in-category security encryption for reliable and secure smart home operation.
Specification:
- Model: GD-W5
- App Support: eWelink (Android and iOS)
- Power Input: DC 5V 1A
- Interface Type: USB Interface
- Wireless Standard: IEEE 802.11b/g/n (2.4GHz only)
- Sensor Action Distance: 3mm to 15mm
- Cable Length: Approximately 5m (16.4ft)
- Material: ABS + PC (Fire-retardant)
- Compatibility: Works with Amazon Alexa and Google Assistant
Package includes:
- 1 x WiFi Smart Switch Garage Door Opener
- 1 x Set of Mounting Accessories (Screws, Stickers, Brackets)
- 1 x User Manual
Installation
To install the GD-W5 WiFi Smart Garage Door Controller, you will need to follow a simple three-step wiring process. The device acts as a "Dry Contact" relay, meaning it mimics a physical button press to trigger your motor.
Step 1: Power the Device
Step 2: Connect to the Motor Terminals
-
Locate the terminals on your garage door or gate motor where your existing wall button or manual switch is connected.
-
Connect the provided Red & Black signal wires from the GD-W5 to these same two terminals.
-
Pro Tip: You do not need to remove the existing wires. Simply twist the new wires together with the old ones and reinsert them into the terminals.
Step 3: Install the Status Sensor
-
Mount the wired magnetic sensor on the fixed part of your door frame (wall).
-
Mount the magnet on the moving part of the garage door.
-
Alignment: Ensure that when the door is closed, the gap between the sensor and magnet is between 3mm and 15mm.
