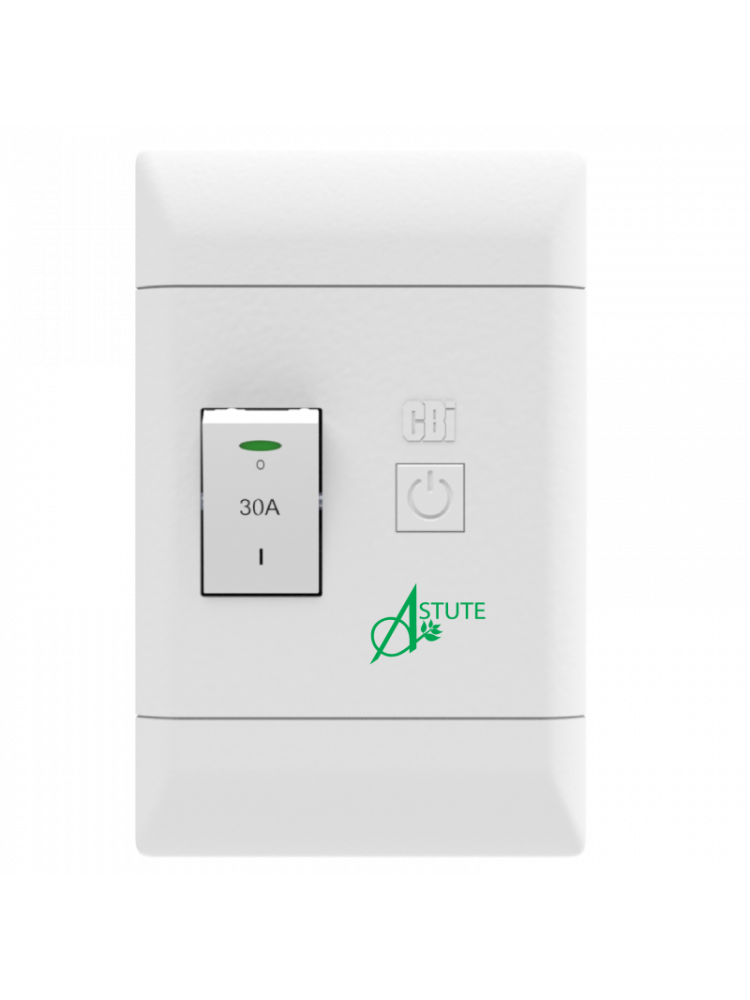

CBI Astute Smart Isolator (ASI)

Overview:

The Astute Smart Isolator is an energy monitoring, scheduling and control switch with load management and automation capability. The CBI Home App enables the user to configure the ASI to react to current, voltage, time, power and many other variables or a combination thereof. The ASI can be used to remotely control geysers, air conditioners, etc. The max load is 30A resistive and 10A inductive

• Wi-Fi enabled
• Scheduled energy management
• Energy monitoring
• Automation and IoT
• Device automation sharing
• CBI Home App and more

Features:

• Wi-Fi enabled (2.4 GHz only) with an internet connection
• Energy monitoring
• Energy control
• Application controlled (CBI Home App)
• Custom automation and custom scenarios
• Multiple ON / OFF programs
• Manual bypass with ON / OFF switch (Power Button)
• Switched Live contact reduces wiring
• Scheduling function - weekday / hour / minute
• No hub required

Applications

• Automation and IoT
• Residential
• Commercial
• Light industrial
• Home / office automation
• Geysers
• Air conditioners
• Illuminated signs
• Hand dryers
• And more

Specification:

• Current: 30A resistive; 10A inductive
• Voltage: 230v; 50Hz; 1Ph

Requirements

• 2.4 GHz Wi-Fi with an internet connection
• Smartphone or Tablet

Approvals

• IEC 60947-3 (ASI)
• ICASA

Documents:

CBI Astute Range Instruction Manual

CBI ASI Data Sheet

CBI Astute Leaflet

Router Issue Assistance Manual

CBI App, Products and Cloud Explained

Package includes:

• 1 x CBI Astute Smart Isolator
