50pcs Waterproof Self Solder Heat Shrink

Overview:

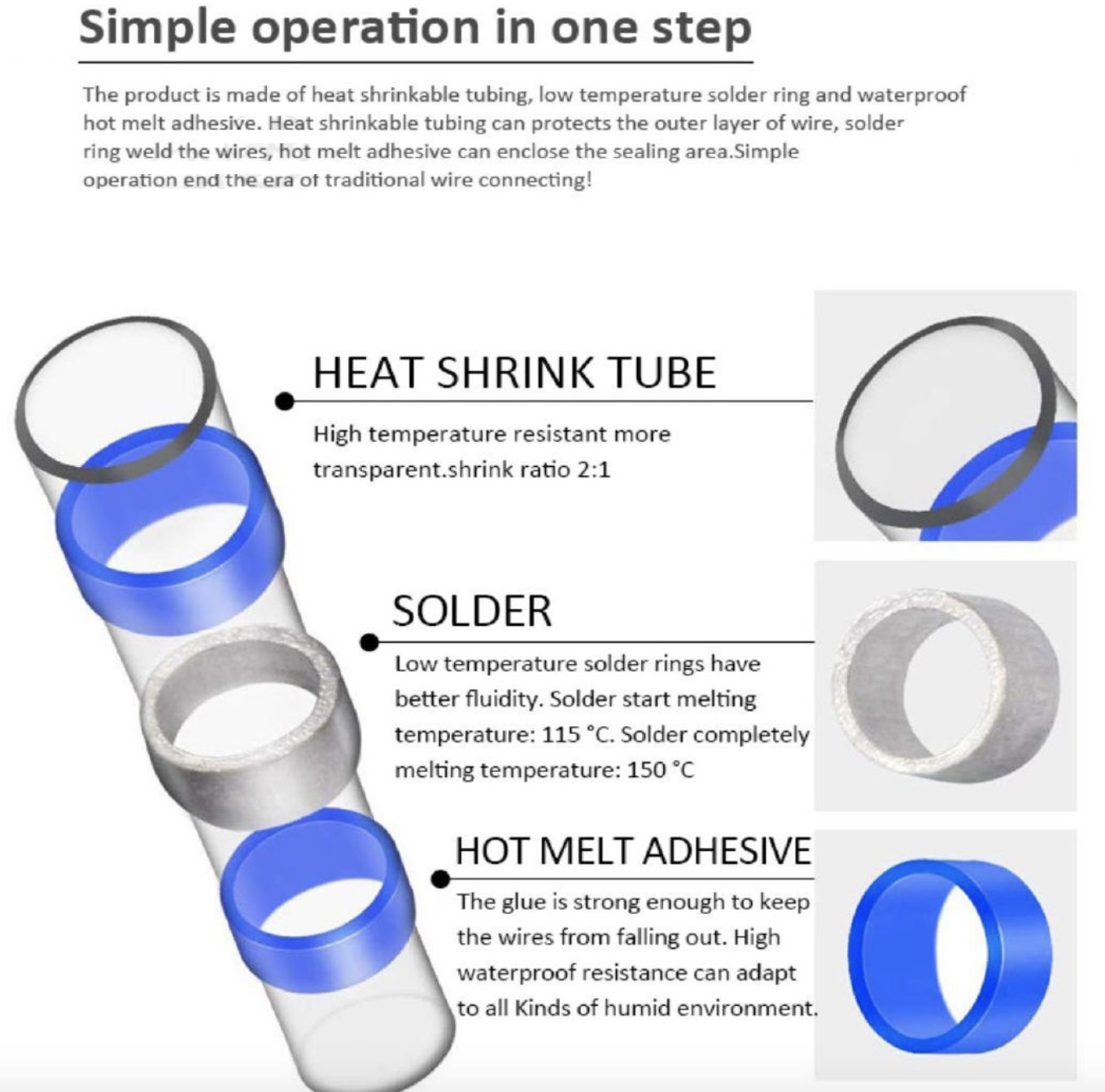

Waterproof heat shrink solder electrical connectors represent an innovative new wiring connection system for cable joints. These connectors feature transparent heat shrink tubing, solder, and an adhesive glue ring. They offer a simple one-step soldering process, creating sealed and insulated butt-type connections. The connectors can be heated using a soldering gun, blow torch, or hot air heat gun, resulting in a robust and waterproof connection.

Features:

• Wire Connections: Butt splice type, wire-to-wire splicing

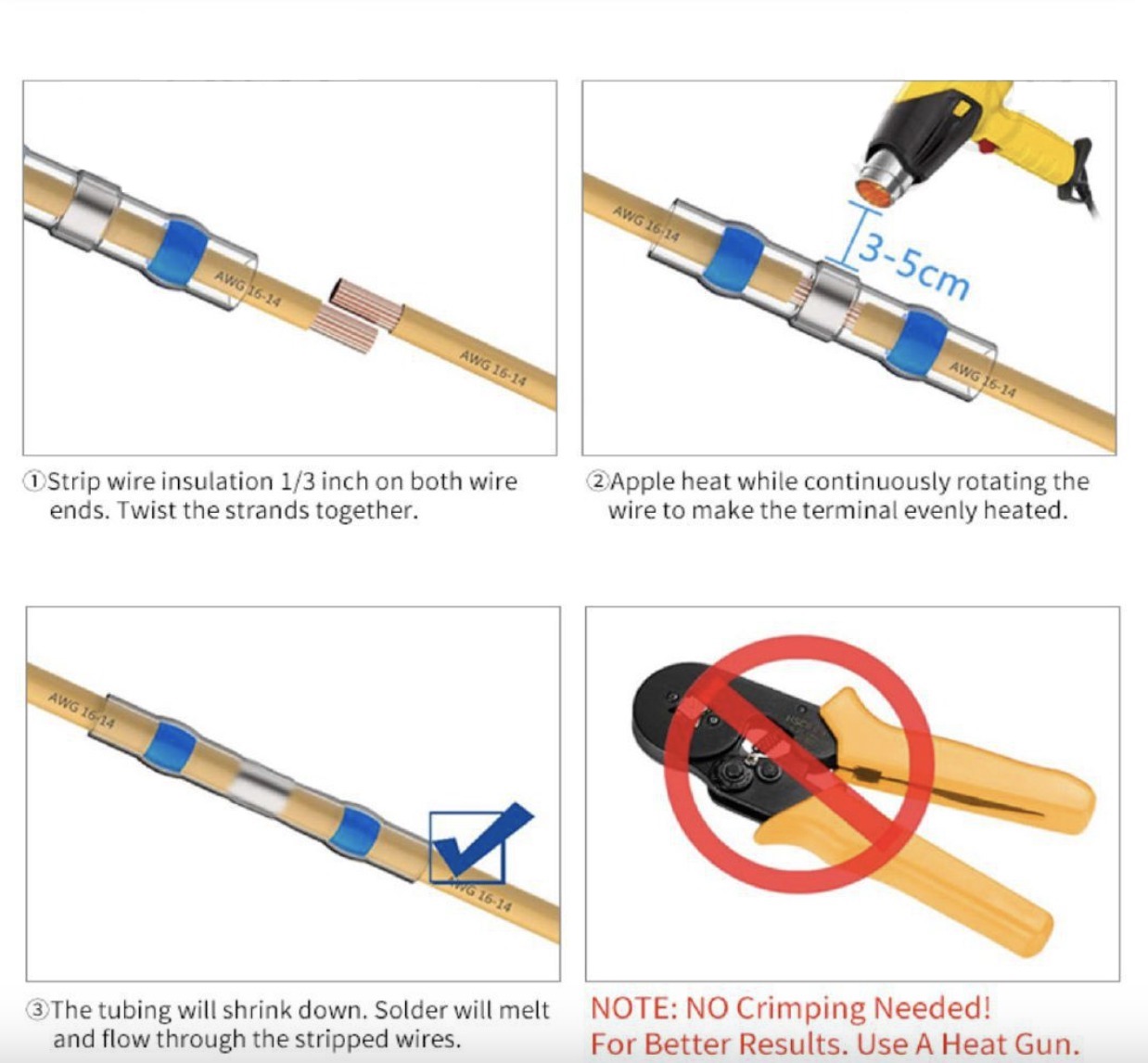

• Simple one-step wire connections, no crimp tools required
• Connection Type: Solder through pre-formed solder ring
• IP Rating: IP67
• Dielectric Strength: 1kV

Specification:

• Outer Material: Polyolefin tubing
• Operating Temperature: -55°C to 125°C
• Minimum Shrink Temperature: 80°C
• Minimum Solder Melting Temperature: 138°C
• Shrink Ratio: 2:1

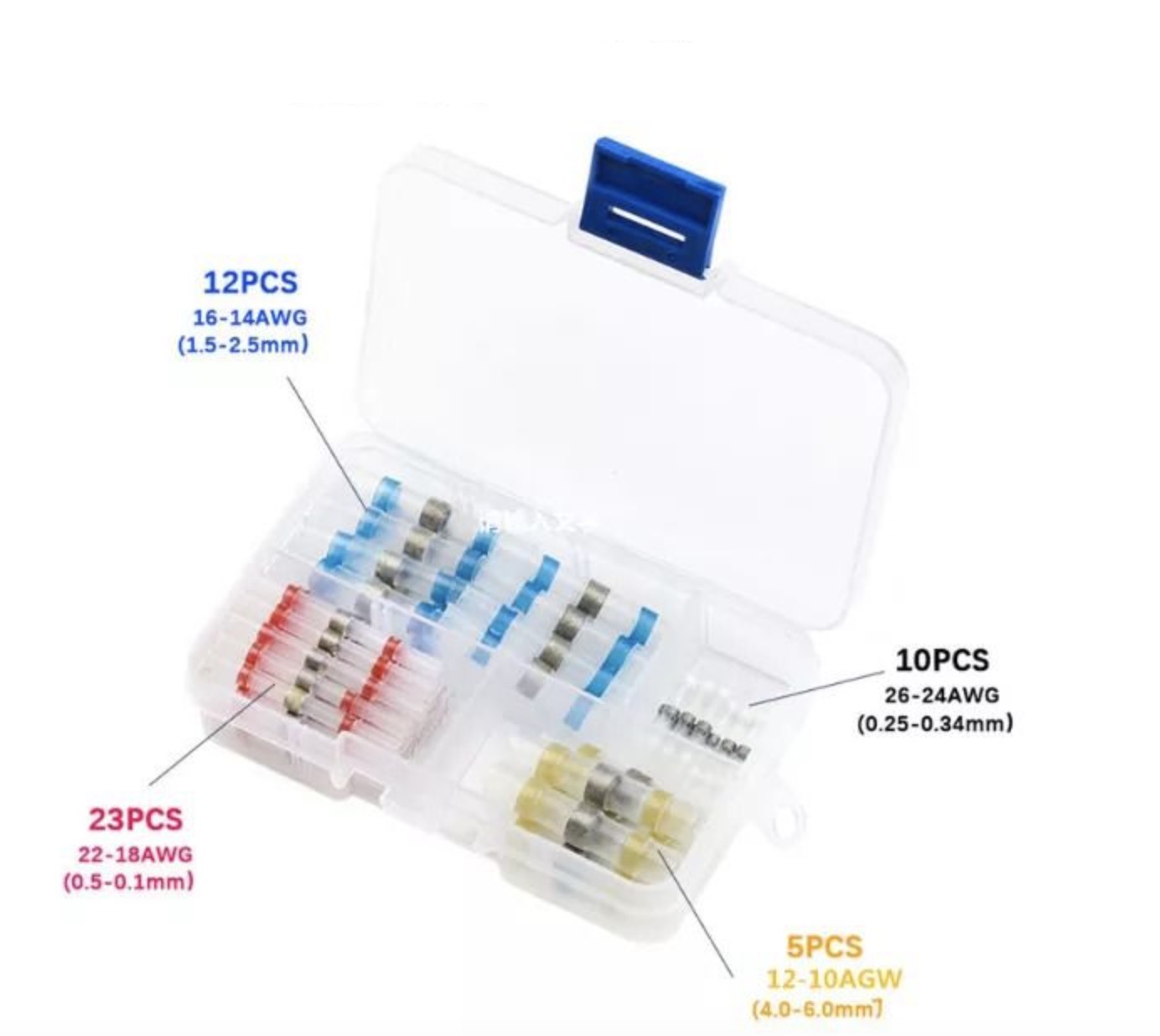

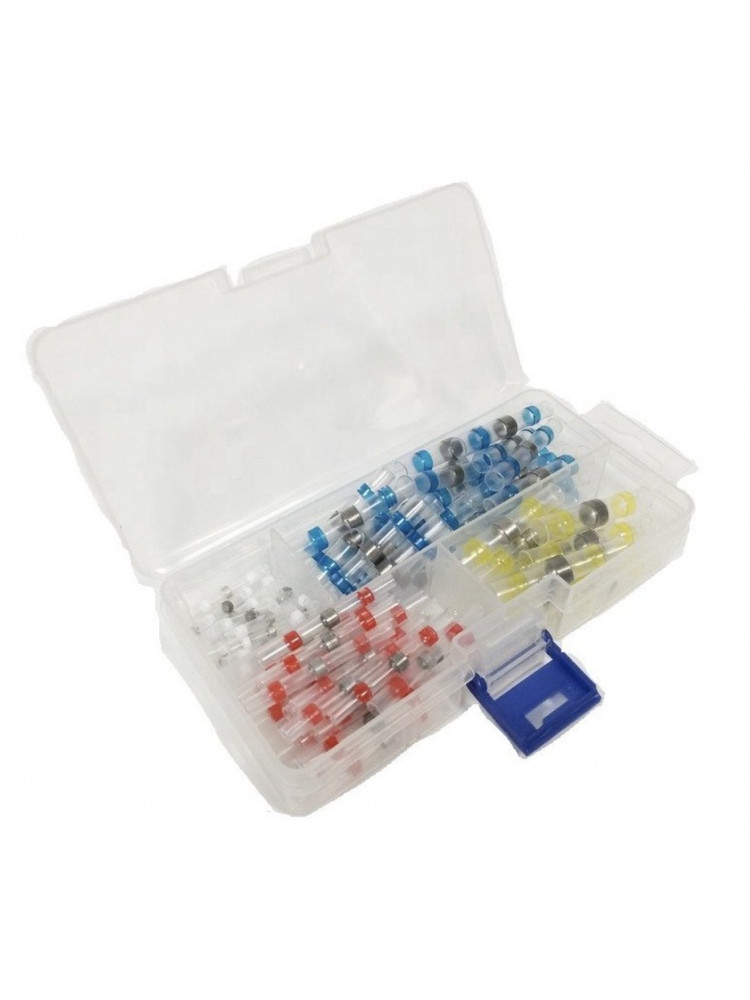

Package includes:

• 10 x S11 - White - 26-24 AWG (0.25-0.34 mm²)
• 23 x S21 - Red - 22-18 AWG (0.5-1.0 mm²)
• 12 x S31 - Blue - 16-14 AWG (1.5-2.5 mm²)
• 5 x S41 - Yellow - 12-10 AWG (4-6 mm²)
