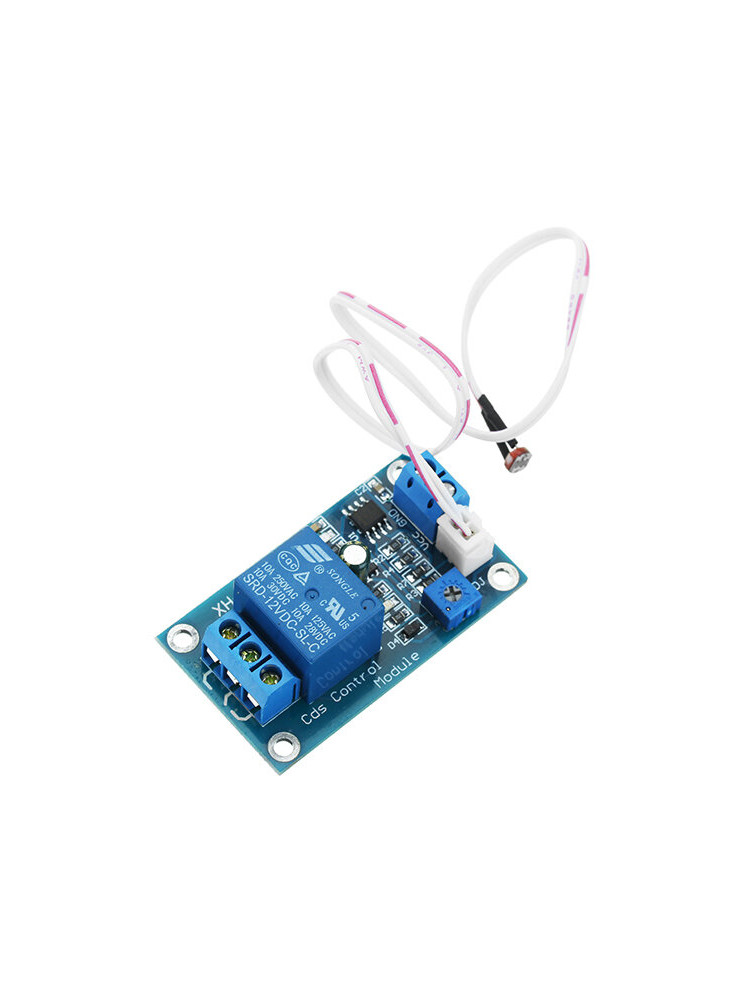

XH-M131 DC 12V Light Control Switch

R 65.00

This product is used for light detection, brightness detection and control, The brightness detection threshold can be adjusted using the onboard potentiometer. The built in 12v relay can be triggered using the photoresistor for a variety of projects.

Quantity

Stock Available
56 Items

Overview:

This product is used for light detection, brightness detection and control, The brightness detection threshold can be adjusted using the onboard potentiometer. The built in 12v relay can be triggered using the photoresistor for a variety of projects.

Specification:

• Input: 12V DC
• Load Capacity: 10A / AC 250V or DC up to 30V
• Red LED ON: Indicate the Power ON
• Blue LED ON: Relay is working
• Relay: Normally Closed (NC)
• Photoresistor lead length: ±150mm
• Dimensions: 31 x 53 x 16.5mm
• Net Weight: 20g

Package includes:

• 1 x Photosensitive resistor module
• 1 x Probe cable


AD-XH-M131
56 Items
